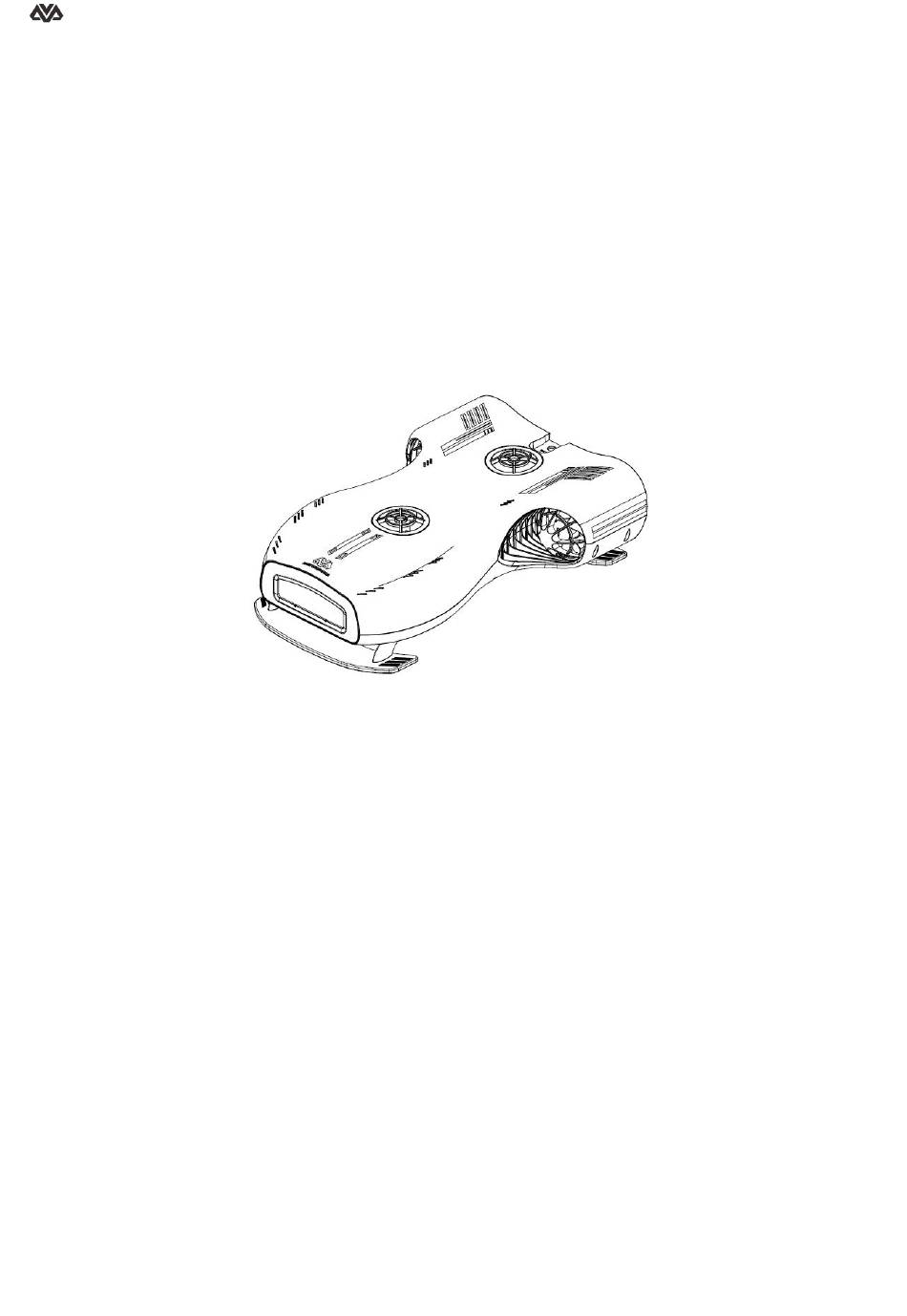

- Page 1 NEMO User Manual Aquarobotman Innovation Copyright...
-
Page 2: Reading Tips
Users can watch the instructional videos through the following link, including how to use this product correctly and safely. https://www.youtube.com/watch?v=qo-piE7QJhY Download Aquarobotman APP Key in Aquarobotman in Apple App Store or Google Play and download the Aquarobotman APP Apple Mobile Terminal: https://itunes.apple.com/cn/app/aquarobotman/id1247384464?mt=8 Android Mobile Terminal: https://play.google.com/store/apps/details?id=com.qsx.aquarobotma Aquarobotman Innovation Copyright... -
Page 3: Table Of Contents
Contents Reading Tips..............................2 Recommendation..................................2 Video course....................................2 Download Aquarobotman APP..............................2 Product Introduction ..............................5 Brief Introduction..................................5 Function Features..................................5 Module Composition................................. 5 Power System.................................... 8 Lighting System..................................8 Hosting Machine Function................................8 Smart Protection System................................8 Smart Battery..................................... 9 Wireless Transmitter ..............................10 Brief Introduction..................................10... - Page 4 Environmental requirement........................21 Check before use........................... 21 Maintenance after use...........................21 Export of the hosting machine memory data..................22 Appendix..................................23 Take off upper shell.................................23 Specification and Parameter..............................24 After-sales support information .......................... 26 Return and replacement policy..............................26 Warranty policy..................................27 Aquarobotman Innovation Copyright...
-
Page 5: Product Introduction

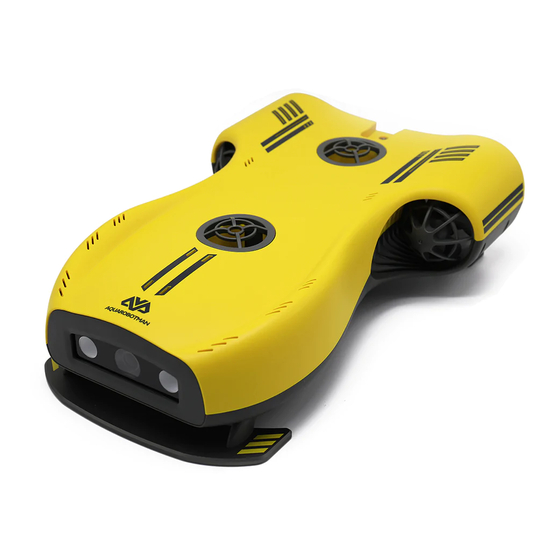

This chapter mainly introduces the features and functions of Nemo Brief Introduction The underwater drone Nemo with 4K UHD shooting system and four-ducted stability system enable real-time, stable and high-definition shooting underwater. The maximum underway speed in water is 2m/s and duration of running underwater reaches 3 hours. - Page 6 Reverse 2. Wireless transmitter KEVLAR tether cable Rotary knob Wireless transmitter 3. Wireless transmitter battery Aquarobotman Innovation Copyright...
- Page 7 4. Hosting machine battery 5. Charger 6. Filter 7. Protective rack Aquarobotman Innovation Copyright...
-
Page 8: Power System
3. Overcurrent protection: The main causes are as follows: a) The propeller is entangled and cannot be rotated. b) Internal performance failure results in short circuit. Aquarobotman Innovation Copyright... -
Page 9: Smart Battery
5. Battery storage: The battery can be placed in any state for a short period of time. If it needs long-term placement, the battery will remain at 80%. Aquarobotman Innovation Copyright... -
Page 10: Wireless Transmitter
The wireless transmitter has a built-in WIFI signal, and the battery of which is independently detachable. The mobile terminal can be connected to WIFI by the Aquarobotman's APP to view the status of the machine in real time. Please refer to the operation guide for specific operations. Users can choose a wheel to achieve convenient cable recycling. -
Page 11: Aquarobotman App
Aquarobotman APP About the APP interface and instructions Brief Introduction The Aquarobotman APP is applied with Nemo to manipulate Nemo's movements and set basic camera parameters, as well as share photos and videos directly to social networks. Main Interface 1. Handle connection status ：... - Page 12 18. Handheld compass direction : Real-time display of the current specific direction of the phone/tablet 19. The direction of the machine in the water : You can see the direction of the machine under water in real time. Aquarobotman Innovation Copyright...
-
Page 13: Setting Interface
View the firmware version information of the current underwater drone in real time. It also shows the internal humidity of the machine, which is used to detect the risk of water in the machine. 4. About us Visit the Aquarobotman website for more information. Status information About us VR Interface Split screen display video interface applied with VR box. -
Page 14: Help Interface
Show all taken photos and videos, download or delete files, which enables users to view taken photos and videos. Handle Introduction The handle connects to the APP via Bluetooth, and the APP receives the connection of the Bluetooth handle. After connecting, direct control and shoot can be operated on the handle. Aquarobotman Innovation Copyright... -
Page 15: Operation Guide
Install the battery into the battery jar of the hosting machine, gently press the battery and turn the butterfly knob clockwise to tighten the battery APP Application 1. Connect APP a) Connect the WIFI Aquarobotman b) The interface of the APP successful connection is as shown below Aquarobotman Innovation Copyright... - Page 16 The icon in the upper left corner is gray, which shows it is locked and the main thruster does not rotate Unlocked The icon in the upper left corner is yellow, which shows it is unlocked hosting machine enters normal running state Aquarobotman Innovation Copyright...
- Page 17 Diagram Lighting Adjustment Slide the middle to adjust the brightness of the fill light Speed Adjustment Adjust the speed of horizontal movement while using direction control Horizontal Control Control the horizontal movement of the machine Snorkeling Control Aquarobotman Innovation Copyright...
- Page 18 The maximum angle of the pitch angle can reach 90°. Shooting The button will flash red and the interface will flash once, when taking a photo, Long video capture Aquarobotman Innovation Copyright...
- Page 19 Function Diagram Start shooting long videos and the hosting machine will record video Short video capture 20 seconds video capture 3. Photo album management Function Diagram Photo album preview Check and manage taken photos and videos Download Aquarobotman Innovation Copyright...
-
Page 20: Pc Software
1. Depth calibration: Place the machine in the air, click on the depth calibration and wait for completion. 2. Compass calibration: Click the compass calibration, rotate the machine space 360° until the calibration is completed. The APP operation is as shown below. Aquarobotman Innovation Copyright... -
Page 21: Battery Charge
Battery Charge Nemo’s dedicated charger must be used when battery charging 1. The battery light is red when charging, 2. The battery will turn green when it is fully charged. 3. Two batteries can be charged at the same time or independently. -
Page 22: Export Of The Hosting Machine Memory Data
Specific disassembly course can be machine interior referred to the appendix. Aquarobotman Innovation Copyright... -
Page 23: Appendix
Appendix Take off upper shell As is shown below, remove the stand of the machine and then all screws of the bottom shell. Upper shell disassembly diagram Aquarobotman Innovation Copyright... -
Page 24: Specification And Parameter
Length 30m/100m Size 30*35*16cm weight 400g Wireless transmitter battery Parameters Size 47mm*120mm*27mm Weight 170g Battery voltage Charging voltage 8.4V Nemo battery Parameters Size 112mm*125mm*65mm Weight 650g Battery voltage 11.1V Charging voltage 12.6V Charging current Charger Parameters Size 68.5mm*53mm*85mm Aquarobotman Innovation Copyright... - Page 25 Weight Input voltage Output voltage 12.6V / 8.4V Filter Parameters Size 70mm*45mm*10.5mm Weight Protective rack Parameters Size（head of Nemo） 75mm*220mm Size（rear of Nemo） 45mm*220mm weight 313g Camera Parameters Video resolution 4K:3840X2160 30P 16:9 2.7K:2704X1520 30P 16:9 1080P:1920X1080 30P 16:9 1080P: 1920*1080 120P 16:9...
-
Page 26: After-Sales Support Information
The replacement product is incomplete, or the appearance is damaged by human factors; The returned product is tested by the Aqurabotman Tech Support Department and no quality problem appear in the product itself; Aquarobotman Innovation Copyright... -
Page 27: Warranty Policy
Mounting damage beyond the safe weight; Damage caused by forced start-up in the event of aging or damage to components; k) Use with third-party components that are not certified by Aquarobotman, causing damage due to reliability and compatibility issues; Damage caused by insufficient discharge when low battery or battery with quality problems occur;...
