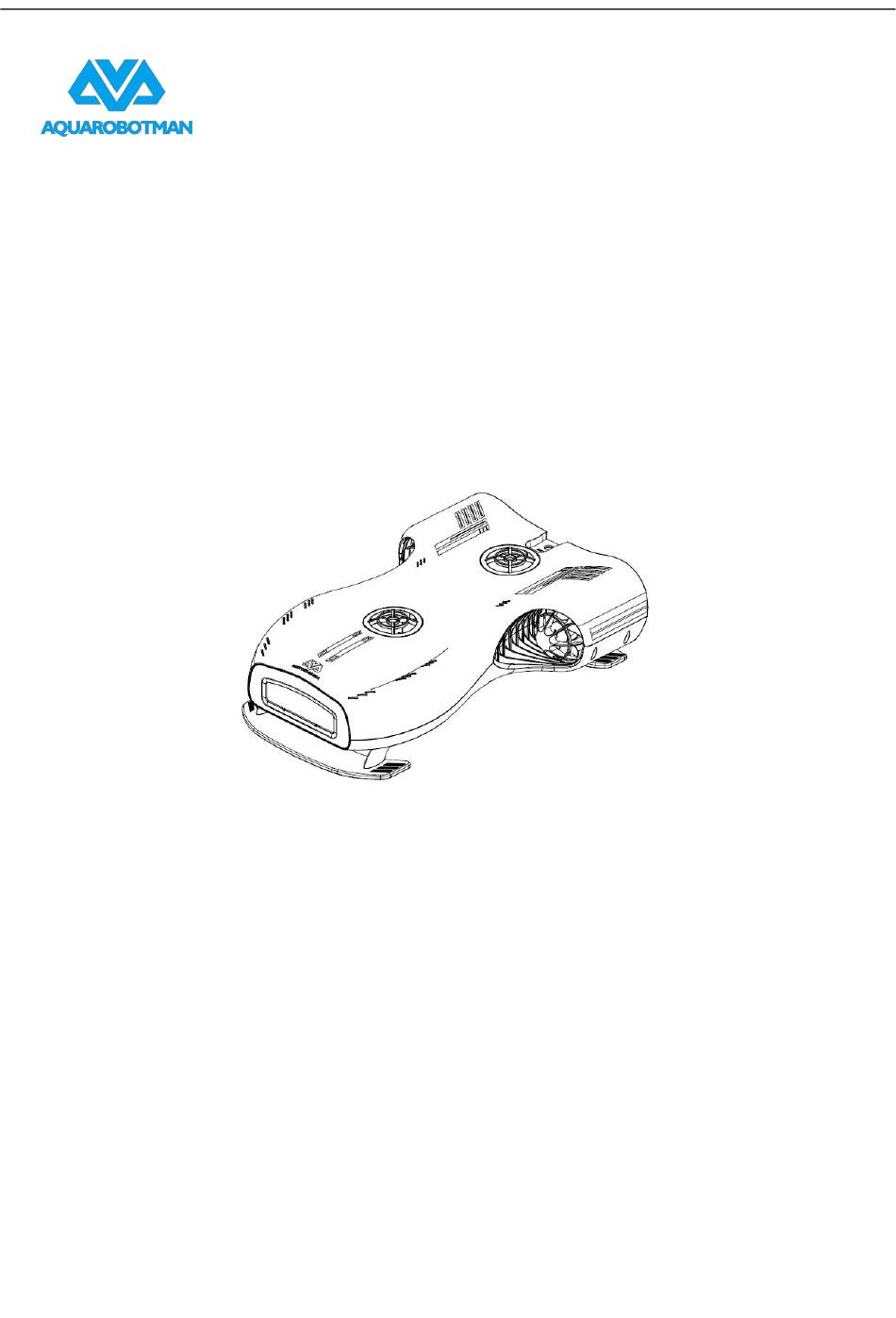

  • Page 1 NEMO User Manual V2.0...

  • Page 2: Reading Suggestions

    Users can view the video tutorial via the link below to learn how to use the product correctly and safely. http://bit.ly/Nemo_YouTube_Aquarobotman Download the Aquarobotman App Users can download the “Aquarobotman” App directly from the App store, or download it from our official website: https://aquarobotman.com/pages/app-download-1 Notes: The App must be used together with Nemo underwater drone.

  • Page 3: Table Of Contents

    Shenzhen Aquarobotman Innovative Technologies Co., Ltd. 目录 Reading Suggestions...............................2 Recommendations..............................2 Video Tutorial................................2 Download the Aquarobotman App ..........................2 Product Overview................................5 Introduction................................5 Features..................................5 Modules Composition..............................5 Dynamic System ................................. 8 Lighting System................................8 Underwater drone Functions.............................8 Smart Battery................................9 Wi-Fi base station.................................10...
  • Page 4 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. VR Control................................22 Video Download...............................24 Sensor Calibration..............................29 Battery Charging...............................30 Backpack Usage................................30 Precautions...................................31 Usage Environment Requirements .......................... 31 Examination before Usage............................31 Post-use Maintenance............................. 31 Media Data Export..............................31 Appendix..................................33 Specifications ................................33 After-sales and service warranty Information......................

  • Page 5: Product Overview

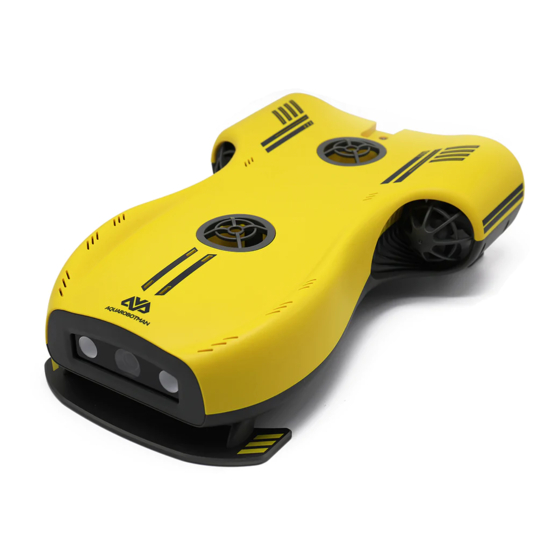

    Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Product Overview The functions and features of Nemo drone and names of the various modules will be introduced in this section. Introduction The Nemo underwater drone is equipped with 4K UHD camera and 4-duct stabilization system, making it capable of shooting real-time, stabilized underwater footage of high definition.
  • Page 6 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. 4K UHD camera Fill light Fill light Propeller Propeller Propeller Propeller Signal cable installation base The front Protective rack Battery compartment Protective rack The back 2. Nemo battery 3. Wi-Fi base station Signal cable installation base...
  • Page 7 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. KEVLAR Zero Buoyancy signal Cable Reel arm Wi-Fi base station 4. Wi-Fi base station battery 5. Nemo charger 6. Filter 7. Protective rack Professional Underwater Integrated Solutions Provider...

  • Page 8: Dynamic System

    Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Dynamic System The dynamic system of the drone is mainly formed by a 4-duct propeller system which is composed of 2 horizontal + 2 vertical propellers, provides the drone with power needed for underwater movements and makes it flexible for various maneuvers of submerging, floating, moving forwards or backwards and steering.

  • Page 9: Smart Battery

    Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Situation above shall not be found under normal operation. If it happens then the underwater drone needs to be returned for repair. Two main reasons for water seepage: a) Dive to depth of more than 100 meters underwater.

  • Page 10: Wi-Fi Base Station

    Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Wi-Fi base station This section introduces Wi-Fi base station, which works as a communication hub between the underwater drone and the user terminal. Introduction The Wi-Fi Base Station is a hub for communication between underwater drone and the user terminal. It consists of four parts including KEVLAR signal cable, battery, base station and reel.

  • Page 11: Aquarobotman App

    Introduction The Aquarobotman App is developed to work with Nemo drone to control its movements, setup the basic camera parameters and check the status of Nemo drone. It can also be used to share photos and videos to social networks.
  • Page 12 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. : takes a single photo. 8. Long video button : starts taking a long video, the button will turn red and the time can be seen on the left side of the button. While taking the video, pressing the button again will end the video and the button will turn white again.

  • Page 13: Setting Interface

    View current firmware version information. The drone’s internal humidity will also be displayed, which can be used to detect whether where is any water leakage into the drone. 4. About us To learn more, please visit us at our official website: https://aquarobotman.com/ Professional Underwater Integrated Solutions Provider...

  • Page 14: Vr Interface

    Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Status info About us VR Interface Under VR mode the screen is presented in two parts. This mode supports somatosensory operation, which makes it easier for users with VR headsets to view underwater sceneries. The head position of users controls the drone’s real-time viewing angle which brings a strong immersive experience.

  • Page 15: Operation Guide

    App Operation 1. Connect app a) Connect your device with the Base Station Wi-Fi. The Wi-Fi name is “Aquarobotman”. Notes: In the Wi-Fi list of your mobile or tablet, there will be two Wi-Fi networks including "Nemo_XXXXXX" and "Aquarobotman_XXXXXX". Make sure your mobile or tablet is connected to "Aquarobotman_XXXXXX".
  • Page 16 Unlock operation is requested right after the warning tone each time for use, or the Nemo may not work normally. In addition, the icon of game controller at the top of interface keeps being red, it will only turn white when it is under usage.
  • Page 17 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. 2. Operation Functions Illustration Lock If the icon in the upper left of screen is gray, this means that the underwater drone is locked and the propellers will not move Unlock If the icon in the upper left of...
  • Page 18 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Functions Illustration Slide rightwards or leftwards at the middle of the screen to adjust the brightness of the fill light Speed Adjustment Adjust horizontal moving speed in three levels D1/D2/D3, together with the direction control D1 the slowest, D3 the fastest.
  • Page 19 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Functions Illustration Controls upwards downwards movement of the underwater drone. Omnidirectional control Simultaneous operation of the horizontal direction and snorkeling throttle allows the pitch angle to be changed while the drone goes forward, the maximum pitch angle is ±45°...
  • Page 20 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Functions Illustration To record a long video of 5 minutes Short Video To record a short video of 20 seconds Professional Underwater Integrated Solutions Provider...

  • Page 21: Controller Operation

    Shenzhen Aquarobotman Innovative Technologies Co., Ltd. 3. Album management Functions Illustration Gallery preview View and manage photos and videos taken Download One click to download selected videos or photos to local album for social sharing Controller Operation Connection: controllers connect to the app via Bluetooth, there will be notice after connection. Users can control the drone on moving forward or backward, ascending, descending, photo taking, video recording, speed and fill light adjustment via controller just like the App.

  • Page 22: Vr Control

    Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Controller instructions: button functions are shown below: Decrease fill light height Decrease speed level Increase fill light height Increase speed level Photo Long video Short Video Unlock/lock Horizontal direction control Snorkeling throttle control Controller can be purchased through Amazon, eBay, TMALL, JD. or other physical stores. The...
  • Page 23 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. 2. The device is locked after wearing the VR headset. Users need to unlock the somatosensory function first. Follow these steps to unlock: a) Tilt head upwards 60 degrees or greater b) Tilt head downwards 60 degrees or greater...

  • Page 24: Video Download

    Video can be downloaded from mobile and computer. 1． Download with mobile: 1) Connect the mobile to the base station Wi-Fi "Aquarobotman_XXXXXX" or the Nemo Wi-Fi Professional Underwater Integrated Solutions Provider...
  • Page 25 Install the file “Nemo Tools.exe” c) Connect computer with base station Wi-Fi “aquarobotman_xxx” or drone Wi-Fi “NEMO_xxx”. d) Start Nemo Tools, click the button “connect” to connect with Nemo, there will be a notice as “connect successfully” if the connection is succeeded.
  • Page 26 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. f) Click the folder to choose files to download or delete. g) Click Download button and it shows download speed the same time. Professional Underwater Integrated Solutions Provider...
  • Page 27 Choose files to be deleted, click the Delete button and confirm again to delete files. i) Format the Nemo. Click Format and confirm again whether to format the SD card, click OK. Notes: Nemo tool only compatible with Window system.
  • Page 28 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. 2) Download with browser a) Enter http://192.168.1.2/SD/AMBA/ with your browser (Microsoft Edge recommended). You should see the interface below: b) Click the folder of corresponding date c) Expand the video list and select the corresponding video or photo files, right click -> save target as.

  • Page 29: Sensor Calibration

    Shenzhen Aquarobotman Innovative Technologies Co., Ltd. d) Windows users please change the file extension on your own. The downloaded file has a .html extension, change this to MP4. This operation is not required for Apple systems. Sensor Calibration Sensor calibration is requested for first-time use. After this, the sensors can be calibrated as required. The sensors that need to be calibrated include the compass and depth sensors.

  • Page 30: Battery Charging

    Please use chargers provided by Aquarobotman only. Backpack Usage Nemo backpack is specially designed for the storage of the drone and its accessories. It has a strong capacity and can store all the unites in one backpack including the drone, reel, signal cable, battery and chargers.

  • Page 31: Precautions

    Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Precautions Things to be aware of when using this product. Usage Environment Requirements Water quality: seawater or freshwater. Temperature: water temperature should be between -2°C to 35°C. Water depth: 0 - 100 meters. Water environment: no obvious aquatic plants or other obstacles Examination before Usage 1.
  • Page 32 “NEMO” is the drone Wi-Fi, which can only be used on land. When the drone enters water, this Wi-Fi cannot be seen in Wi-Fi list. If Nemo Wi-Fi is not listed when on the shore, then the battery is not well installed, please install the battery again.

  • Page 33: Appendix

    Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Appendix Specifications Underwater drone Parameter Structure 4 propellers (2 vertical + 2 horizontal) Dimensions 40.4*29.0*11.4cm Weight 3.4KG Dynamic System Waterproof and anti-corrosive motors, high efficiency 5-blade propellers Maximum moving speed 2m/s Maximum diving depth...
  • Page 34 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Input voltage Output voltage 12.6V / 8.4V Nemo filter Parameter Dimensions 70mm*45mm*10.5mm Weight Protective rack Parameter Dimensions (the head section) 75mm*220mm Dimensions (the tail section) 45mm*220mm Weight 313g Camera Parameter Video resolution 4K:3840X2160 30P 16:9 2.7K:2704X1520 30P 16:9...

  • Page 35: After-Sales And Service Warranty Information

    Product to be exchanged is incomplete or has man-made physical damage; d) Products with no issues found by Aquarobotman technical support team. e) Products with problems caused not by the quality of the product itself, but by users’ improper storage, unsupported modification, improper installation, and failure to use.

  • Page 36: Warranty Policy

    Damage caused by loading the product beyond the safe weight; Damage caused by forcibly starting or operating the product with ageing or damaged components; k) Damage caused by reliability or compatibility issues from operating the Aquarobotman with unauthorized third-party components;...
  • Page 37 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. product battery level is low; m) The customer fails to mail out the product within 7 days of initiating the warranty service process with customer support. - THE END - Professional Underwater Integrated Solutions Provider...
