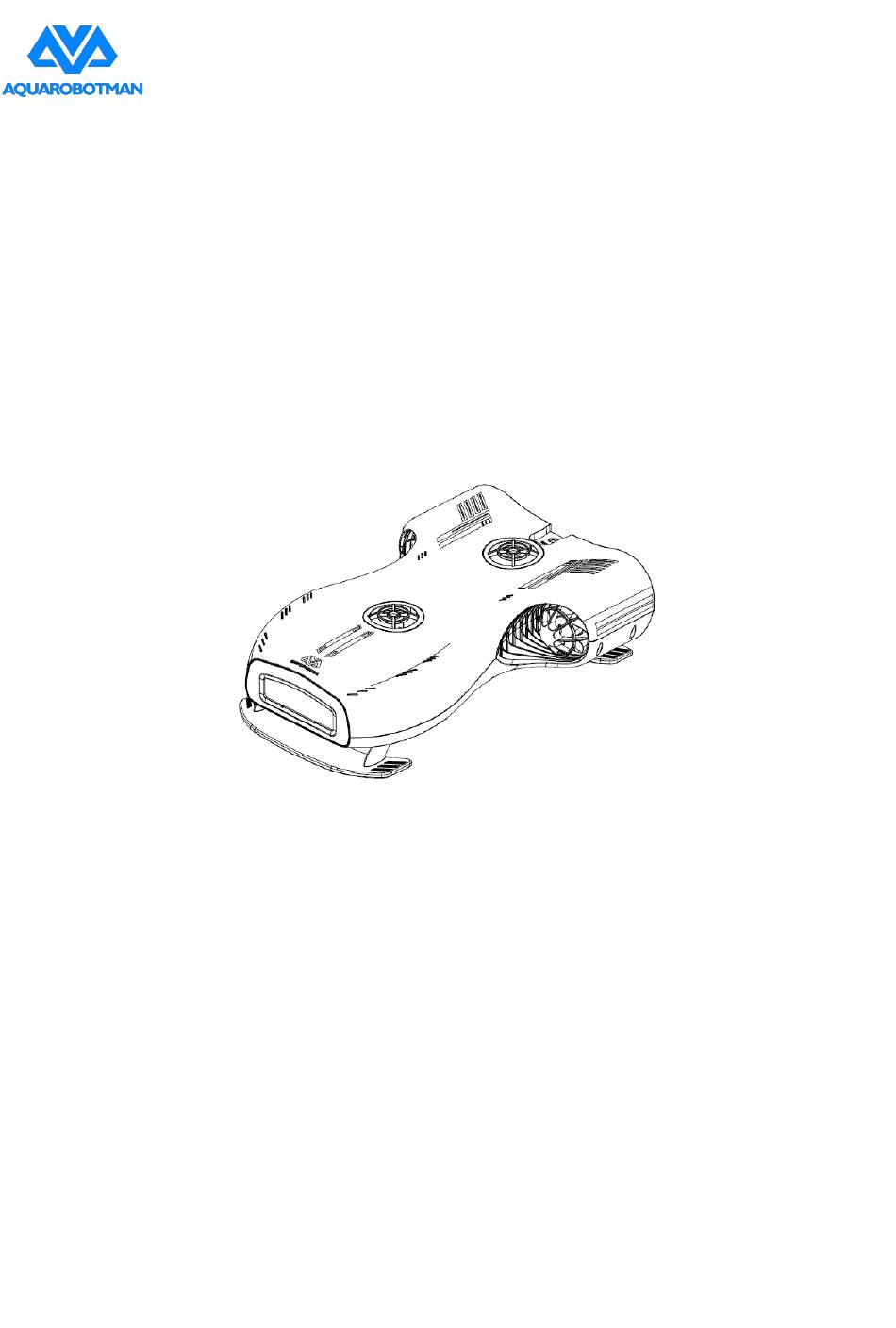

- Page 1 NEMO User Manual V1.4...
-
Page 2: Reading Suggestions
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Reading Suggestions Recommendations We recommend users to watch the instructional video, read the disclaimer and product return and exchange policy before reading this manual. Video Tutorial Users can view the video tutorial via the link below which includes instructions on how to use the product correctly and safely, possible problems in use and solutions. -
Page 3: Table Of Contents
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Contents Reading Suggestions ..............................2 Recommendations ..............................2 Video Tutorial ................................2 Download the Aquarobotman App ........................... 2 Product Overview ................................. 5 Introduction ................................5 Features ..................................5 Module Composition ..............................5 Dynamic System ................................ 8 Lighting System ................................. - Page 4 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. App Operation ................................. 16 Controller Operation ............................... 21 Controller Operation ............................... 22 VR Control ................................22 Video Download ..............................24 Sensor calibration ..............................29 Battery Charging ..............................30 Precautions ................................. 30 Usage Environment Requirments ........................... 30 Things to Inspect Before Using ..........................
-
Page 5: Product Overview
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Product Overview This section introduces the functions and features of Nemo and the names of the various modules. Introduction The Nemo underwater drone is equipped with a high resolution 4K UHD camera system and 4-duct stabilization system, making it capable of shooting real-time, stabilized, and high definition underwater footage. - Page 6 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. 4K UHD camera Fill light Fill light Propeller Propeller Propeller Propeller Signal line installation base Protective rack Battery compartment Protective rack Bottom 2. Nemo battery 3. Wi-Fi base station Signal line installation base On/off switch...
- Page 7 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. KEVLAR Zero Buoyancy Cable Reel arm Wi-Fi base station 4. Wi-Fi base station battery 5. Nemo charger 6. Filter 7. Protective rack Professional Underwater Integrated Solutions Provider...
-
Page 8: Dynamic System
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Dynamic System The dynamic system is mainly formed by a 4-duct propeller system composed of 2 horizontal + 2 vertical propellers. The propeller is made with customized waterproof and anti-corrosive motors and fitted with custom designed propeller blades that increases the performance of the motor to its maximum potential. -
Page 9: Smart Battery
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. returned for repair. 3. Overcurrent protection: the main causes are: a) Propeller is entangled and cannot rotate. b) Internal drone fault causes short-circuit. 4. Low voltage protection: this protective feature will be triggered when the battery voltage falls too low. -
Page 10: Wi-Fi Base Station
The Wi-Fi Base Station has an in-built Wi-Fi signal transmitter and its battery is separate and detachable. Wi-Fi connection with smartphones is available. Open the Aquarobotman app to connect and view the drone status in real-time. For operation instructions, please read Operation Guide. -
Page 11: Aquarobotman App
About the app interface and usage instructions. Introduction The Aquarobotman app is used with the Nemo to control its movements and to setup the basic camera parameters. It can also be used to share photos and videos taken from the drone directly to social networks. - Page 12 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. : displays the drone’s internal operating temperature and not the water temperature. 6. Current water depth : displays the current water depth of the drone in meters. 7. Camera shutter button : takes a single photo.
-
Page 13: Settings Interface
View current drone firmware version information. The drone’s internal humidity will also be displayed. This is used to detect whether or not any water has entered the drone. 4. About us Learn more about us and our products at the Aquarobotman website. Professional Underwater Integrated Solutions Provider... -
Page 14: Vr Interface
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Status info About us VR Interface Split-screen display of video interface to be used with VR headsets. This mode also has somatosensory operation function which makes it easier for users with VR headsets to view underwater sceneries. The head position will translate into the drone’s real-time viewing angle which gives a strong immersive... -
Page 15: Preview Interface
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Preview Interface Displays all photos and videos taken with the drone where they can be downloaded for deleted. Provides an easy to operate interface for the user to view photos and videos taken with the drone. -
Page 16: Operation Guide
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Operation Guide Detailed instructions for installation and operation. Installation 1. Connect drone a) Connect the reel KEVLAR cable with the tail section of the drone. Note: Poor connection at joint can result in poor contact and render the device unusable. Please make ensure that the joint contact is good. - Page 17 Only when you use the game handle to control NEMO will the icon turn white, and in other cases the icon is always red. 2. Operation...
- Page 18 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Functions Illustration Unlock If the icon in the upper left corner is yellow, this means that the drone unlocked propellers should operate normally Fill Light Adjustment Use a sliding action on the screen to adjust the brightness of the...
- Page 19 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Functions Illustration Horizontal Control Controls the drone’s horizontal movement Snorkel Control Controls upwards downwards movement of the drone Snorkel Control By using the horizontal and snorkel control at the same time, the pitch angle can be changed...
- Page 20 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Functions Illustration Photo The button will flash red and the screen will flash once when taking a photo. Long Video The drone will continue to record when recording a long video Short Video Records a 20 second short video...
-
Page 21: Controller Operation
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. 3. Album management Functions Illustration Gallery preview View and manage photos and videos taken on the drone Download Select video or photo to be downloaded. Download to local photo album and share with one button Controller Operation Connect: controllers connect to the app via Bluetooth. -
Page 22: Controller Operation
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Controller Operation 1. Connect: controllers connect to the app via Bluetooth. After the app is connected to the controller via Bluetooth, you will be notified of the controller connection. After connection, you can take photos and perform other control operations directly from the controller. - Page 23 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. 1. Wearing the VR headset normally: 2. After wearing the VR headset, the device is locked. The user needs to unlock the somatosensory control function to experience. Follow these steps to unlock: a) Tilt head upwards 40 degrees or greater...
-
Page 24: Video Download
Important tip: the drone must be placed in water when downloading videos. When using Wi-Fi to export original data out of the drone’s internal memory via the Wi-Fi Base Station or from the Nemo, the front end of the drone front must be immersed in cold water to prevent it from overheating. For specific operation... - Page 25 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. There are two ways to download videos from the drone. One is via Nemo Tools and the other is via a browser. Video can be downloaded from mobile phone and computer. 1． Download from mobile phone: a) Connect the mobile phone to the base station WIFI "Aquarobotman_XXXXXX"...
- Page 26 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. b) Go to file list and it displays the current media folder as shown below. c) Enter the folder to download and delete files. Professional Underwater Integrated Solutions Provider...
- Page 27 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. d) Click Download button and it shows download speed at the same time. e) Select the file to be deleted, click the Delete button to confirm again, and then click OK to complete file deletion.
- Page 28 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. e) Format the Nemo. Click Format and confirm again whether to format the SD card and click OK. 2. Downloading with browser e) Enter http://192.168.1.2/SD/AMBA/ into your browser (Microsoft Edge recommended). You should see the interface below:...
-
Page 29: Sensor Calibration
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Click the folder with the corresponding date g) Expand the video list and select the corresponding video or photo files, right click -> save target as. h) Windows will change the file extension. The downloaded file with have a .html extension, change this to .MP4. -
Page 30: Battery Charging
The app operation steps are shown in the figure below. Battery Charging The Nemo charger must be used to charge the battery. 1. The battery light will turn red while charging. 2. It will turn green when the battery is fully charged. -
Page 31: Things To Inspect Before Using
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Temperature: water temperature should be between -2°C to 35°C. Water depth; 0 - 100 meters. Water environment: no obvious aquatic pants or other obstacles Things to Inspect Before Using 1. Main unit a) Check to see if the main unit's protective rack is installed. - Page 32 Nemo underwater or separately stand for? on land. “NEMO” is the Nemo Wi-Fi, which can only be used on land. When Nemo enters water, this Wi-Fi cannot be seen in Wi-Fi list. When on shore, if Nemo Wi-Fi is not listed, the battery is not installed, please reinstall the battery.
-
Page 33: Appendix
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Appendix Specifications Drone Parameter Structure 4 propellers (2 vertical + 2 horizontal) Dimensions 40.4*29.0*11.4cm Weight 3.4KG Dynamic System Waterproof and anti-corrosive motors, high efficiency 5-blade propellers Maximum forward speed 2m/s Maximum diving depth 100m... - Page 34 Shenzhen Aquarobotman Innovative Technologies Co., Ltd. Weight Input voltage Output voltage 12.6V / 8.4V Nemo filter Parameter Dimensions 70mm*45mm*10.5mm Weight Protective rack Parameter Dimensions (drone head section) 75mm*220mm Dimensions (drone tail section) 45mm*220mm Weight 313g Camera Parameter Video resolution 4K:3840X2160 30P 16:9 2.7K:2704X1520 30P 16:9...
-
Page 35: After-Sales And Service Warranty Information
Shenzhen Aquarobotman Innovative Technologies Co., Ltd. After-sales and service warranty information Detailed policy on after-sales returns, exchanges, and repairs Product return and exchange policy 1. Goods can be returned if the following conditions are met. a) The customer returns the product within 7 days of receiving it; the product is free from damage or defects;... -
Page 36: Warranty Policy
Product to be exchanged is incomplete or has man-made physical damage; d) Upon examination by the Aquarobotman technical support team, it is found that there are no issues with the product quality. e) Problems caused by impact, burning, unsupported modification, improper installation, and failure to use and operate the product according to the instruction manual, that are not attributable to the quality of the product itself. - Page 37 Damage caused by loading the product beyond the safe weight; Damage caused by forcibly starting or operating the product with ageing or damaged components; k) Damage caused by reliability or compatibility issues from operating the Aquarobotman with unauthorized third-party components;...
