Seneca R-KEY-LT Installation Manual

R-KEY-LT
INSTALLATION MANUAL
1-Port ModBUS RTU/ASCII Industrial Gateway
SENECA S.r.l.
Via Austria, 26 35127 PADOVA (PD) - ITALY
Tel. +39.049.8705359 8705355 Fax +39 049.8706287
www.seneca.it
INSTRUCTIONS IN ENGLISH LANGUAGE
R-KEY-LT |
1-Port ModBUS RTU/ASCII Industrial Gateway
WARNINGS
The full content of this manual must be read before performing
any operation.
The module must only be used by qualified electricians. Specific
documentation is available from
The module must be repaired and damaged parts replaced by the
Manufacturer. The product is sensitive to electrostatic discharges.
Take appropriate measures during any operation.
The warranty is null and void in the event the module or devices
supplied by the Manufacturer, necessary for its correct operation, are
improperly used or tampered with and, in any case, if the instructions
contained in this manual were not followed.
Electrical and electronic waste disposal (applicable in the European
Union and other countries with recycling).
The symbol on the product or its packaging shows the product must
be surrendered to a collection centre authorized to recycle electrical
and electronic waste.
This document is the property of SENECA srl. Unauthorized duplication and reproduction is
strictly forbidden. The content of this document corresponds to the described products and
technologies. Stated data may be modified or supplemented for technical and/or sales purposes.

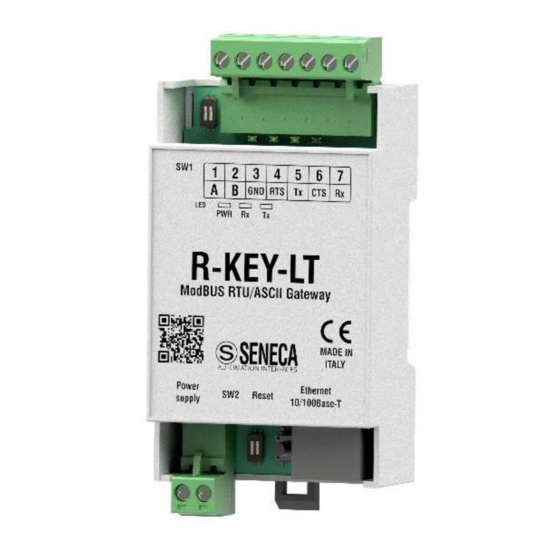

K-KEY-LT DESCRIPTION
R-KEY-LT is a sturdy and compact ModBUS gateway converting from the TCP-IP ModBUS
protocol to a ModBUS RTU/ASCII and vice-versa. It supports up to 8 ModBUS TCP-IP
clients at the same time, with a maximum of 10 ModBUS TCP-IP servers. With this model,
ModBUS slave serial devices can be integrated in an existing ModBUS TCP-IP network,
and ModBUS TCP-IP server devices can be made accessible to serial masters. It is fitted
with Vac/Vdc supply on the hardware itself, 1.5 kVac isolation and a wide temperature
range. R-KEY-LT can be supplied also via a 230 Vac mains power supply. The product can
be configured via web server.
SENECA
Doc. MI000472 Rev. 0
www.seneca.it
P a g e 2
R-KEY-LT |
1-Port ModBUS RTU/ASCII Industrial Gateway

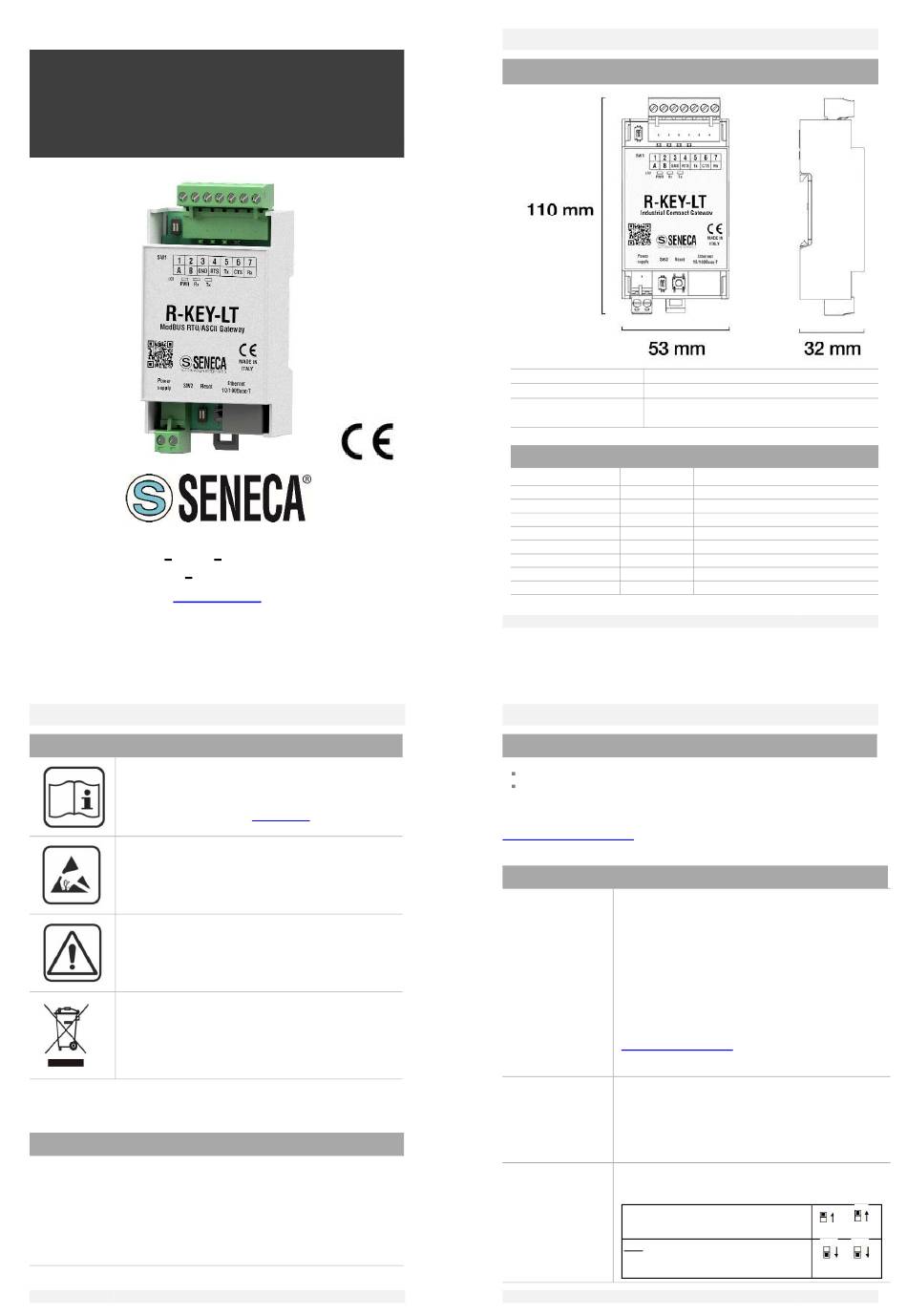

MODULE LAYOUT
Dimensions (LxHxD) 53 x 110 x 32 mm
Weight
80 g
Self-extinguishing PC/ABS UL94-V0
Case
Grey RAL 7035
SIGNALS VIA LED ON FRONT PANEL
LED Status
PWR (Green) ON
PWR (Green) Flashing
TX (Red) Flashing
RX (Red) Flashing
Ethernet ACT (Green) ON
Ethernet ACT (Green) Flashing
Ethernet LNK (Yellow) ON
Ethernet LNK (Yellow) OFF
SENECA
Doc. MI000472 Rev. 0
R-KEY-LT |
1-Port ModBUS RTU/ASCII Industrial Gateway
POSSIBLE CONFIGURATIONS
From Ethernet ModBUS to serial
From serial ModBUS to Ethernet
R-KEY-LT can be fully set up via integrated web server. The programming and/or configuration
tools of the product, as well as all the manuals, can be downloaded from
www.seneca.it/products/r-key-lite.
SETTINGS
On first start-up, the IP address is allocated by the DHCP server of
the LAN network.
The selectors of DIP-switch-SW2 are set to OFF by default (*)
If a DHCP server is not available in your network,
(5 minutes after start-up) R-KEY-LT will be initialized with the
First start-up default IP address 169.254.x.y, where the values x and y are the
IP address last two figures of the MAC address (see label on the side of the
configuration product).
N.B. With the SDD (SENECA Discovery Device) Windows PC
software that can be downloaded free of charge from
www.seneca.it/products/sdd, it is possible to identify the device in
the network and view/modify the IP address with just a few clicks
(see user manual for all the details).
To access the configuration Web server, just write the IP address
of the product in your navigation browser and access with the
Web Server following credentials:
With DIP-switch-SW1 it is possible to set the polarization of the
bus for port RS485. (*)
To polarize the bus on RS485, both SW1
SW1 DIP-switch
DIP-switch selectors must be set to ON
NOT to polarize the bus on RS485, both
SW1 DIP-switch selectors must be set to
OFF
SENECA
Doc. MI000472 Rev. 0
LED meaning
The device is powered with assigned IP
Non-assigned IP
Data transmission on port RS232/RS485
Data receipt on port RS232/RS485
No activity on Ethernet port
Data transfer on Ethernet port
Ethernet port connected
No Ethernet connection
P a g e 3
User: admin; Password: admin
ON ON
OFF OFF
