Architect/Engineer Specifications
Sensitivity reader shall be a System Sensor
i 3 series model number SENS-RDR, listed
with Underwriters Laboratories as a smoke
detector accessory. The reader shall be
capable of reading the detector's sensitivity
without the need for a physical connection

Specifications

Batteries
2 – AA alkaline batteries (not included)

LCD Status Indications

Status Indication Action
GOOD The detector is within its sensitivity range. No action is necessar y at this time.
The smoke detector's sensing chamber requires cleaning for continued reliable operation. Refer to the i 3 Series manual
SERVICE
for proper maintenance procedures.
REPLACE The smoke detector is failing and should be replaced immediately.

SENS-RDR Operation

1. Turn the reader on by pressing and hold-
ing the button for approximately 2 sec-
onds until the reader sounds. The LCD
will display the word "READY". The
"READY" status indicates that the
SENS-RDR is ready for accepting data
from an i 3 Series smoke detector.
2. Place the reader by the smoke detector
being tested. Position the reader above
the oval depression near the word
"PAINT" (See Figure 1). Position the
reader below the detector at an angle
(See Figure 2). A ledge and an anti-skid
tip is provided on the reader to maintain

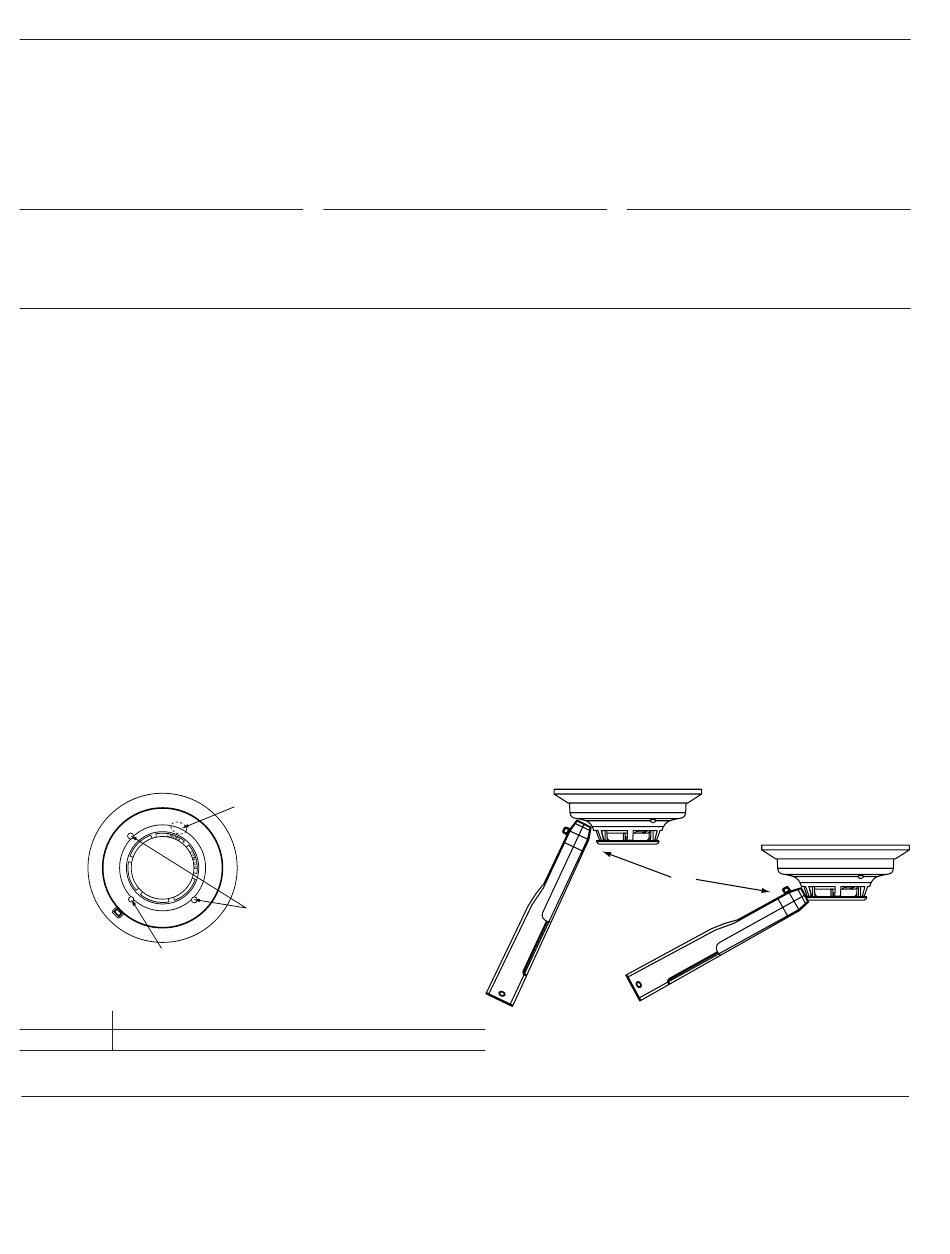

Figure 1: Reader location on i 3 series detectors
RECESSED TEST SWITCH

Ordering Information

Model Description
Sensitivity reader for i 3 series smoke detectors
SENS-RDR
