Loosen 6 screws
1
Attach power cables to V+/V- terminals. For input/output wiring, see full manual.
4
Tighten 6 screws
6
QuickStart
Power On Device
Swing blue faceplate open
2
CAUTION
POWER SUPPLY GREATER THAN 32 VDC WILL
DAMAGE DEVICE AND VOID WARRANTY.
USE POWER SUPPLY BETWEEN 12-24 VDC ONLY.
12-24 VDC (V+)
0 VDC (V-)
For full manual, go to:
www.cla-val.com/electronic-products
Click on the following links:
Electronic Valve Controller
5
1. Valve Controllers
2. VC-22D
3. Technical Manual
4. VC-22D IOM Manual

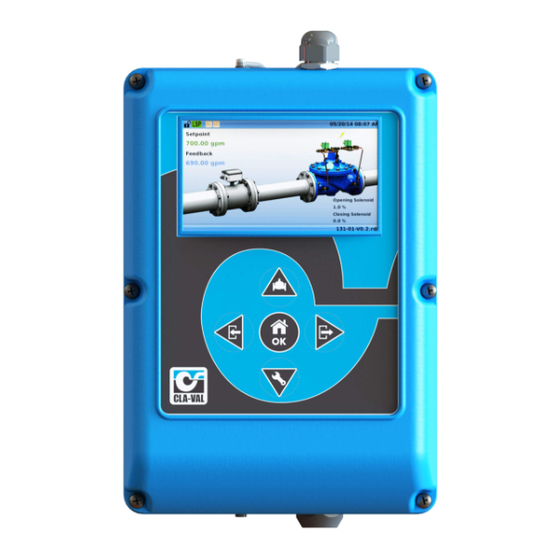

Model VC-22D
Run power cable through gland.
3
Swing blue faceplate closed
Advertisement
Table of Contents
Related Manuals for CLA-VAL VC-22D
Summary of Contents for CLA-VAL VC-22D
- Page 1 DAMAGE DEVICE AND VOID WARRANTY. USE POWER SUPPLY BETWEEN 12-24 VDC ONLY. 12-24 VDC (V+) 0 VDC (V-) Tighten 6 screws For full manual, go to: www.cla-val.com/electronic-products Click on the following links: 1. Valve Controllers 2. VC-22D 3. Technical Manual 4. VC-22D IOM Manual...
- Page 2 QuickStart Model VC-22D Electronic Valve Controller Load Standard ValvApp Press left navigation arrow to load standard ValvApp. Highlight North America and press OK button. Highlight desired ValvApp and press OK button. Say yes to load library, and OK to restart unit.
