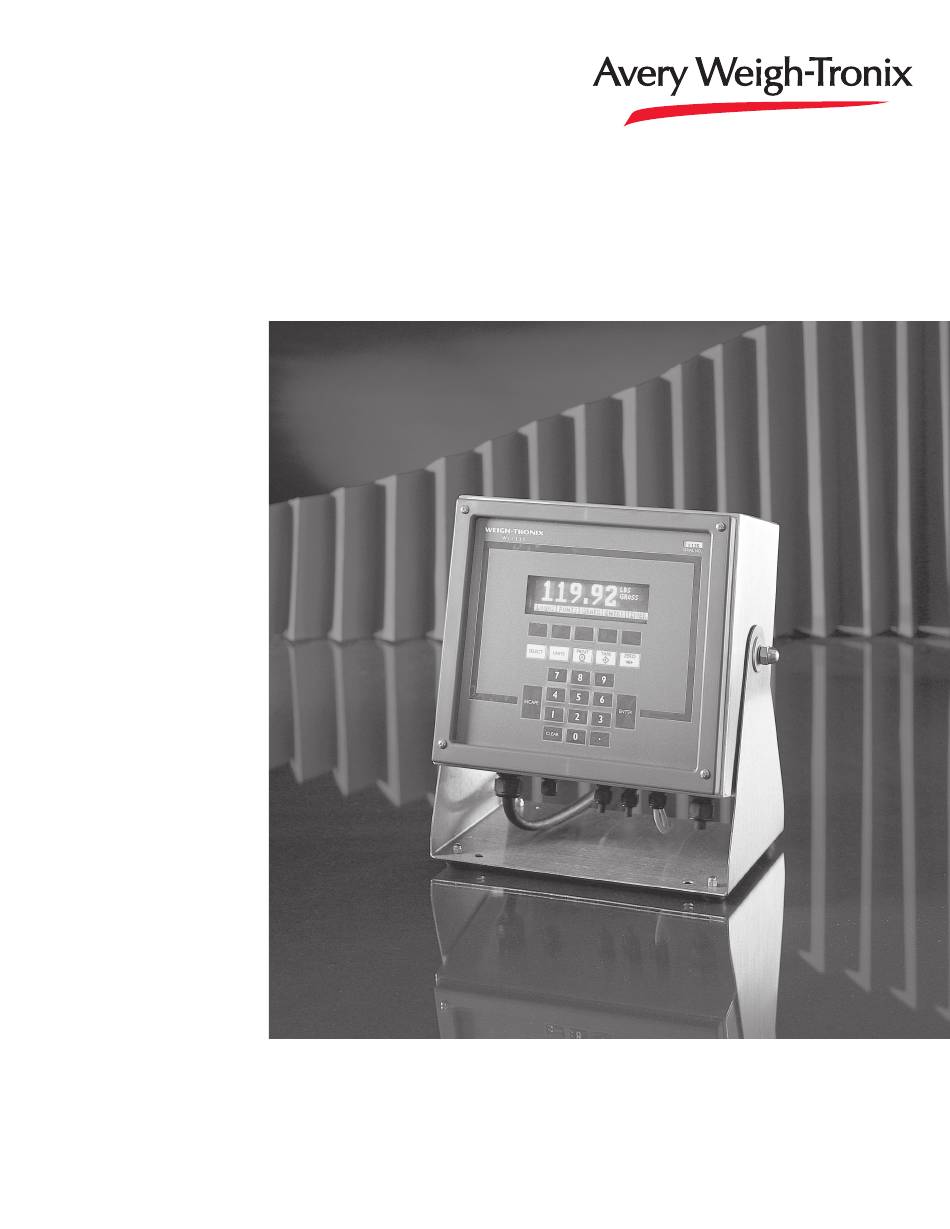

  • Page 1 WI-130 WDAC User’s Manual...
  • Page 2 Risk of electrical shock. Do not remove cover. No user service- able parts inside. Refer servicing to qualified service personnel. Weigh-Tronix reserves the right to change specifications at any time. 12/13/04 130_U.P65 PN 29582-0013O e1 Printed in USA WI-130 WDAC User’s Manual...

  • Page 3: Table Of Contents

    Table of Contents Introduction ....................5 About This Manual ................5 WI-130 Weight Data Acquisition Controller ..........5 WI-130 Front Panel ................6 Main Display ................. 6 Front Panel Keys ..............7 Hard Keys ..............7 Soft Keys ..............8 Weighing Operation .................
  • Page 4 " D (31.43 cm x 27.31 cm x 13.34 cm) Weight 17.5 lb, 7.8 kg Agencies NIST Class III/IIIL Certified COC# 95-008 Canadian Weights and Measures AM-5054 UL (115 VAC) CUL (115 VAC) FCC Class A Warranty 2 year WI-130 WDAC User’s Manual...

  • Page 5: Introduction

    Occasionally notes, tips, and special instructions appear in the left column. WI-130 Weight Data Acquisition Controller The WI-130 is a stand alone weight processor. Built into the WI-130 are the following standard features: • 2 serial ports •...

  • Page 6: Wi-130 Front Panel

    This flexibility allows graphics and alphanumeric characters to be displayed at the same time. Below are a couple of ex- amples of over 30 displays available on the WI-130. This screen shows a large numeric readout, LBS and GROSS, a bar graph, and the soft key labels.

  • Page 7: Front Panel Keys

    Front Panel Keys The keys on the front panel of the WI-130 are of two types, hard keys and soft keys. Hard keys are labeled directly and soft key labels appear on the display.

  • Page 8: Soft Keys

    There are only five key labels available at one time but this does not limit the potential usefulness of these keys. Programs can be created to enable one key to access another level of operation with five more key names and functions. WI-130 WDAC User’s Manual...

  • Page 9: Weighing Operation

    . . A tare entry display shows the weight that you key in. 2. Press ENTER to accept this tare entry. . . The net weight is displayed in net mode. WI-130 WDAC User’s Manual...

  • Page 10: Specialized Operations

    Due to the unlimited variety of applications available for the WI-130, it is not Specialized Operations practical to describe all the possible specialized operations in this manual. Each application program will be unique. Specialized operations will be set up to offer you soft key choices specific to the application and will guide you with messages on the display.
  • Page 11 This declaration becomes valid when the SMA Conformance Logo, having our name or trademark is applied to the device or its accompanying documentation. * SMA PRODUCTION MEETS TYPE DEVICE MANUFACTURER Conformance Logo and Design are a registered trademark of the Scale Manufacturers Association WI-130 WDAC User’s Manual...
  • Page 12 Smethwick, West Midlands England B66 2LP Tel: +44 870 90 34343 Fax: +44 121 224 8183 Email: info@awtxglobal.com Web site:www.averyweigh- tronix.com Avery Weigh-Tronix Canada, ULC 217 Brunswick Boulevard Pointe Claire, QC H9R 4R7 Canada Telephone: 514-695-0380 Toll free: 800-561-9461 Facsimile: 514-695-6820 www.weigh-tronix.ca Weigh Bar ®...
