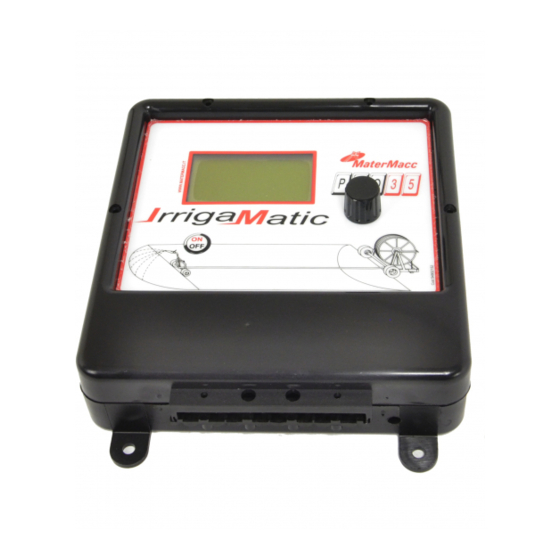

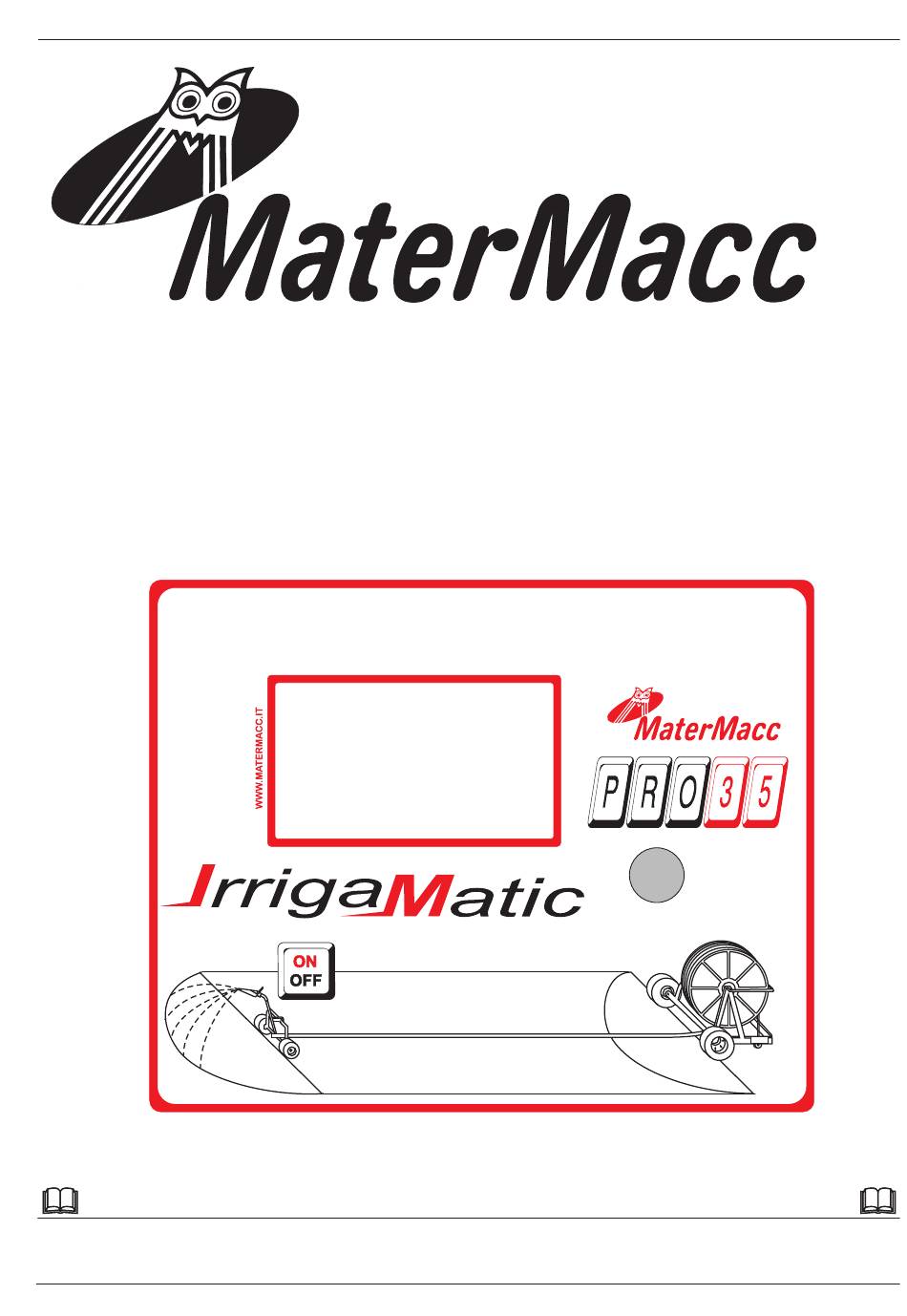

IRRIGAMATIC PRO 35
MANUAL FOR USE AND
MAINTENANCE
IRRIGAMATIC PRO35
Carefully read this Handbook before using the centraline
Matermacc S.p.a.
Via Gemona, 18 - 33078 San Vito al Tagliamento (PN) ITALIA - telefono 0434/85267
telefax 0434/85517
www.matermacc.it
e-mail info@matermacc.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRRIGAMATIC PRO35 and is the answer not in the manual?

Questions and answers

Related Manuals for Matermacc IRRIGAMATIC PRO35

Summary of Contents for Matermacc IRRIGAMATIC PRO35

  • Page 1 IRRIGAMATIC PRO 35 MANUAL FOR USE AND MAINTENANCE IRRIGAMATIC PRO35 Carefully read this Handbook before using the centraline Matermacc S.p.a. Via Gemona, 18 - 33078 San Vito al Tagliamento (PN) ITALIA - telefono 0434/85267 telefax 0434/85517 www.matermacc.it e-mail info@matermacc.it...
  • Page 2 IRRIGAMATIC PRO 35...
  • Page 3 IRRIGAMATIC PRO 35 INTRODUCTION This manual guide contains a description of the work and the necessary instructions for performing basic operations and regular maintenance of the device. This guide is for convenience divided into easily-defined chapters. These instructions are intended for professional users only, who are to possess specific knowledge about how to use the device, special admittance and training.
  • Page 4 IRRIGAMATIC PRO 35 WARRANTY Verify on delivery that the equipment has not been damaged during the transport and that the accessories are integral and complete. Any claims must be made in writing within 8 days from reception. The warranty against any defect of the materials is valid one year from the delivery date of the equipment.
  • Page 5 IRRIGAMATIC PRO 35 NOTES ON SAFETY Operational safety Do not perform maintenance procedures, if For the safe operation of the device first read they are not described in the documentation, carefully these notes. or no training was provided to the operator by the authorized regional dealer.
  • Page 6 IRRIGAMATIC PRO 35...

  • Page 7: Table Of Contents

    IRRIGAMATIC PRO 35 INDEX INTRODUCTION WARRANTY WARRANTY DECLINE NOTES ON SAFETY GENERAL FEATURES..............Page01 Page02 GENERAL TECHNICAL..............INTERFACE..................... Page02 ............... INSTRUCTIONS FOR USE Page03 START UP AND MAIN MENU................Page03 ACCESSING THE MENU................Page03 PERFORMING AN IRRIGATION CYCLE ..........Page04 3.3.1 Page04 PREPARING........................
  • Page 8 IRRIGAMATIC PRO 35 INDEX 6.2.1 ADDING A NUMBER TO THE LIST..............Page13 6.2.2 DELETING A NUMBER FROM THE LIST............Page14 6.2.3 ENABLING/DISABLING MESSAGES TO A USER..........Page14 6.2.4 READING THE LIST.................... Page14 6.2.5 QUERYING THE MACHINE STATUS..............Page14 6.2.6 QUERYING THE RETURN SPEED..............Page14 6.2.7 SETTING THE LENGTH OF THE UNWOUND TUBE WHEN THE...

  • Page 9: General Features

    IRRIGAMATIC PRO 35 1 GENERAL FEATURES OPTIONS: Connection with a pressure switch FUNCTIONS: Speed measurement with feeling roller • Current date and time. Management of a timed auxiliary irrigator • Measurement of wound and unwound tube. Connection with wind - rain feelers •...

  • Page 10: General Technical

    IRRIGAMATIC PRO 35 2 GENERAL TECHNICAL 2.1 INTERFACE SPECIFICATIONS The user interface is made up of a panel comprising: UProcessore GRAPHIC LCD 128X64 pixel 1. A graphic LCD 128X64 pixel with Baclight. Display: With Baclight 128x64 pixel LCD Incremental encoder to set up device 3.

  • Page 11: Instructions For Use

    IRRIGAMATIC PRO 35 3. INSTRUCTIONS FOR USE 5 Position the focus on the desired menu by browsing the menus, turning the control to the left or right. 3.1 START UP AND MAIN MENU 6 Press the control 1 Connect power supply cables of electronic console to a 12V d.c.

  • Page 12: Performing An Irrigation Cycle

    IRRIGAMATIC PRO 35 A To change the start time, position the focus on 3.3 PERFORMING AN IRRIGATION the minute and/or hour value and press the CYCLE knob. The display will show, for example: 3.3.1 PREPARING START TIME 1 BEFORE STARTING TO LAY THE TUBE 25/03/2008 position the focus on “OPERATION”...
  • Page 13 IRRIGAMATIC PRO 35 SECTOR B To change the end time, turn the knob and 260 m confirm by pressing it. The display will 30* m/h show, for example: B To change, for example, the return speed, turn STOP TIME the knob and confirm by pressing it. The : 29 display will show, for example: 15/03/08...

  • Page 14: Actions During The Irrigation Cycle

    IRRIGAMATIC PRO 35 3.3.2 ACTIONS DURING THE IRRIGATION 3.3.2.2 CHANGING THE REWINDINGSPEED FOR THE CURRENT SECTOR CYCLE During irrigation, the display alternates between: - rewind speed Place the cursor on V 35 m/h , rotate the knob - hose to be gathered (morft) and then press it for at least 5s.

  • Page 15: Calibrating The Machine

    IRRIGAMATIC PRO 35 3.4 CALIBRATING THE MACHINE !!! ATTENTION !!! The calibration menu is password-protected. It is only accessible to the manufacturer of the 3.5 CONFIGURING THE MACHINE !!! ATTENTION !!! The configuration menu is password-protected. It is only accessible to the manufacturer of the Page 07...

  • Page 16: Setting The Calendar

    IRRIGAMATIC PRO 35 3.6 SETTING THE CALENDAR 3.7 ADJUSTING THE COUNTERS The calender is set using the menu CALENDAR. The counters are set by accessing the menu CONTATORI. The date is given in the format: dd/mm/yy. Only the value of the partial knob can be reset. The time is given in the format: hh/mm/ss.

  • Page 17: User Parameters

    IRRIGAMATIC PRO 35 4 USER PARAMETERS The knob parameters - defined by the user - at the beginning and/or during an irrigation cycle are as summarised in the following table. N° Parameter Description UNW. TUBE M of tube unwound before starting to work START TIME Present time Time when the irrigation cycle should begin...

  • Page 18: Password-Protected User Parameters

    IRRIGAMATIC PRO 35 4.1 PASSWORD-PROTECTED USER PARAMETERS Parameter Description Position of the flow valve. Position of the flow valve. 0 = inlet 1 = discharge Sensor of end of winding up. Sensor of end of winding up. “0” = absent; “1”...

  • Page 19: Error Messages

    IRRIGAMATIC PRO 35 5 ERROR MESSAGES The console keeps a list of the last 6 errors which may have occurred. The error messages are displayed in order on the first line of the LCD in alternation with other messages on the display, for example: 1 / 2 ALL 04 then for example...
  • Page 20 IRRIGAMATIC PRO 35 Actions Suspen Conditions Type Description Display sion (determined by par. M#12) in order to force the transmission of long pulses. If no pulses are received for a time such as par. C#9 d e s p i t e f o r c i n g t h e transmission of long pulses the cycle is stopped.

  • Page 21: Using The Gsm Module (Optional)

    IRRIGAMATIC PRO 35 6 USING THE GSM MODULE 6.2 MANAGING THE CONTACT LIST (OPTIONAL) Telephone numbers and respective details are stored in the device's internal memory. As a result, it The following applies only if the IRRIGAMATIC is not necessary to reprogram the contact list if the SIM card is replaced.
  • Page 22 IRRIGAMATIC PRO 35 6.2.2 DELETING A NUMBER FROM THE LIST 6.2.5 QUERYING THE MACHINE STATUS 1 Compose the message SYS on a mobile phone. To delete a user from the list, simply send a write 2 Send the SMS to the console, which replies with message with no content between the brackets.
  • Page 23 IRRIGAMATIC PRO 35 An operation cycle may be started by sending an 6.2.7 CHANGING THE CURRENT RETURN SMS to the console. SPEED To start an irrigation cycle !! ATTENTION !! 1 Compose the SMS START. C o m m a n d s a f f e c t i n g t h e 2 Send the SMS to the console.
  • Page 24 IRRIGAMATIC PRO 35 6.3 SMS COMMANDS Commande Reply Remarks #<n>_<state>_<name>_<code> This operation is rather <n> operator's index up to max 10 long and requires at least <state> operator's state 20 seconds. indicate the operator's state according to the following diagram: 0 = unknown 1 = available 2 = current...
  • Page 25 IRRIGAMATIC PRO 35 Commande Reply Remarks WPBALLN<index>(< length >) If <index> refers to a non <index> element index present or non active user, up to max 5 the command is ignored. < length > length of the unwound If this function is tube activated for a member of indicates the length of unwound...
  • Page 26 IRRIGAMATIC PRO 35 Commande Reply Remarks SYS_<date_time>_S<state_sistem >_V<speed_o_height>_L<length>_ST< date_time_beginning>_ET<data_ora_fin e> <date_time> date and time of the system <state_sistem > state of the system indicates the state either: 0 = system stopped 1 = opening of bypass and start 2 = closing flow and start 3 = starting time 4 = flow opening 5 = starting pause...
  • Page 27 IRRIGAMATIC PRO 35 Commande Reply Remarks START_<result>_<date_time> <result> result of the request The possible values are: OK = positive result KO = negative result <Date_time> date and time of the system STOP_< result >_< date_time > <result> result of the request The possible values are: OK = positive result KO = negative result...
  • Page 28 IRRIGAMATIC PRO 35 IRRIGAMATIC PRO 35 Page 20...
