Vxl Itona K Series Hardware Installation Manual

Itona K Series Thin Client
Hardware Installation Guide
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe B est conforme à la norme NMB-
003 du Canada.
©2012 VXL Instruments Limited.

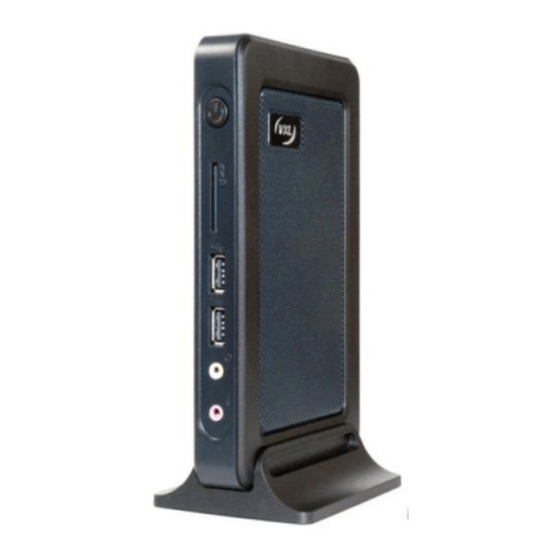

Front View
English
Ref
Components
Power Button
1
SD card slot
2
USB Ports
3,6
LINE-OUT
4
MIC
5
DVI-I Port
7
Ethernet Port
9
DC Power In
9
DC12V/3A
Pedestal
10
600011052786 A01
Rear View
Français Deutsch Español
Composantes Bestandteile Componentes
Bouton Botón de
Einschaltknopf
marche/ arrêt Encendido
Fente pour Ranura para
SD-Kartenslot
carte SD tarjeta SD
Ports USB USB Ports Puertos USB
LINE-OUT
Salida de
SORTIE son
línea
MIC MIC MICRÓFONO
Port DVI-I DVI-I Port Puerto DVI-I
Puerto
Port Ethernet Ethernet Port
Ethernet
Prise Entrada de
DC Power IN
d'alimentation alimentación
DC12V/3A
DC12 /3A DC12v /3A
Un Piedestal Plastikfuss Pedestal
Itona K Series Thin Client
Hardware Installation Guide
The Itona K Series package consists of the items listed below:

Itona K series Thin client

Power Adapter 12V/3.0A

Pedestal

This manual

DVI-I to VGA Adapter

Power cord applicable to your country ( Optional )
Every endeavour is made to ensure that all the above items are included in
each box. However, should an item be missing, don't hesitate to contact
VXL at the website below for assistance.
In order that the Itona K series performs in accordance with expectations,
you must ensure that you install it correctly.
This guide covers the installation of the hardware, and does not cover the
configuration of Software. For software configuration refer
(http://www.vxl.net).
Safety Instruction
In order to provide protection from potential hazards, create a safer work
environment and to increase the reliability of the product, please follow the
instructions given below while installing a VXL Product:

Use Approved 3 Pin Grounded power cord only. If you have not
been provided with a power cord for your product, you should
purchase a power cord that is approved for use in your country.
The product fits into a grounded 3 pin electrical outlet

Allow approx 4 Inch space around the Product for effective
ventilation. Avoid objects that restrict airflow on top.

Always place the product in the recommended orientation.

Do not operate this equipment in corrosive or explosive
atmosphere.
For more information about safety instructions please visit:
http://www.vxl.net/Support/Product Safetyguidelines.aspx
Setting up the Itona K Series
The following steps will ensure that your new Itona K Series is perfectly set
up and operational.
1. Unpack the unit taking care not to drop the product whilst
removing from the packaging.
2. Please retain the packaging for possible future use.
3. You will immediately need Power cord, Mouse, Keyboard and
Monitor DVI.
4. Place the Itona K Series on the desktop such that the cable
from the monitor is not overstretched to reach the video port.
