- Page 1 Itona J Series Hardware User Guide...
- Page 2 Copyright © 2004-2013 VXL Instruments Limited. All Rights Reserved Information in this document is subject to change without notice and does not represent a commitment on the part of the manufacturer. No part of this guide may be reproduced or transmitted in any form or means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of the manufacturer.
- Page 3 Federal Communication Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 4 ENERGY STAR Compliant Product ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products practices. Products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default.
-
Page 5: Regulatory Certifications
Regulatory Certifications... -
Page 6: Table Of Contents
Table of Contents Federal Communication Commission (FCC) Statement ENERGY STAR Complied Product Regulatory Certifications 1 Introduction Features Optional Features About the User Guide Abbreviations and Acronyms Chapters in the Manual 2 Installation Unpacking the Unit Preparing to Connect Connecting the Accessories and Power Supply Connecting to the Server 3 Specifications Hardware... -
Page 7: Introduction

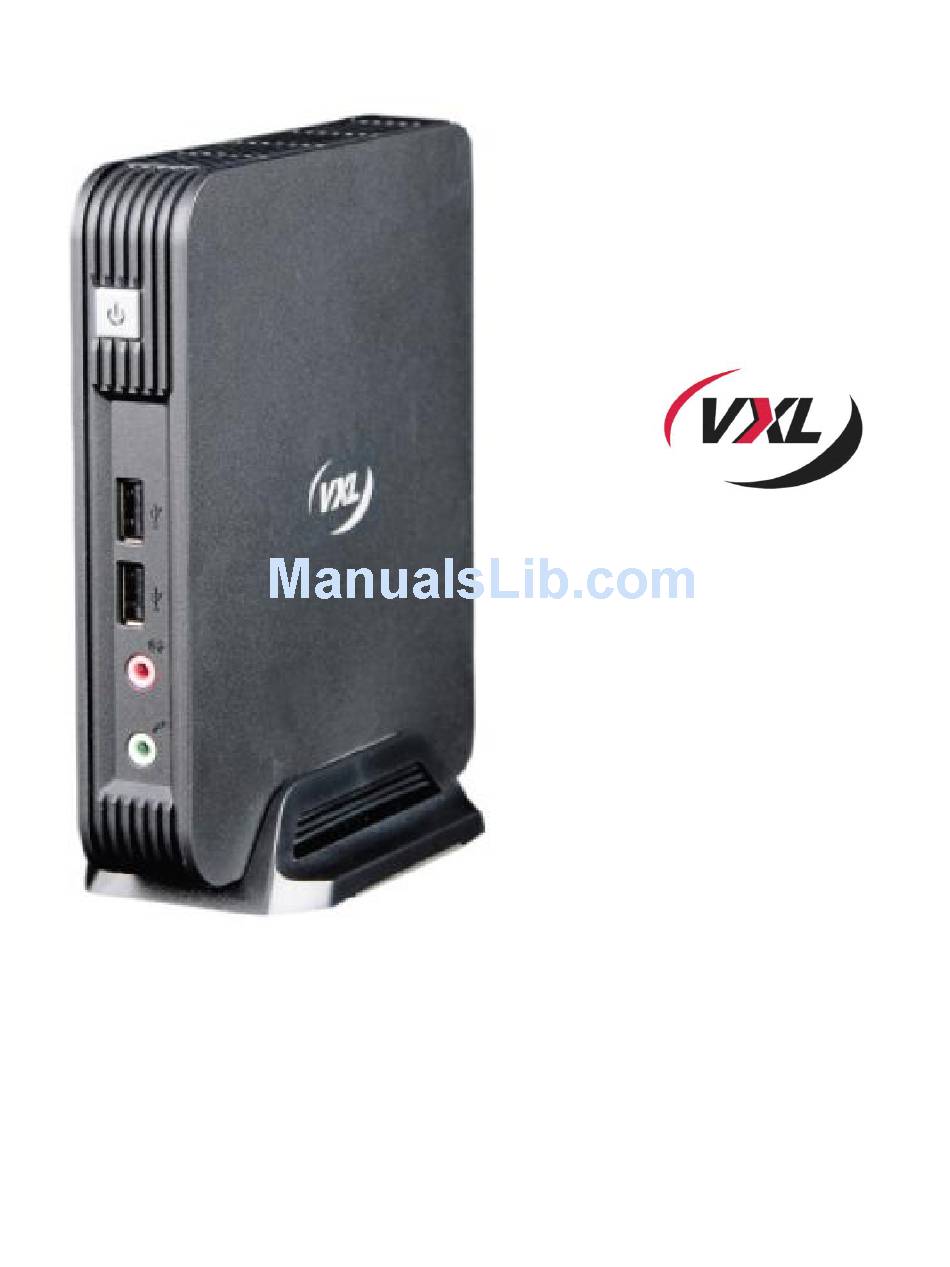

Thin Clients are terminal devices that connect to multi-user application servers operating under Citrix XenDesktop, XenApp, VMware View connection server and Windows 2003 / 2008 terminal servers. This guide covers installation procedure and hardware details of Itona J Series thin clients. 1. Power Button. 2. Two USB 2.0 Ports 3. -
Page 8: Features
Features The new J Series with ARM Cortex A9 System-on-a-Chip (SoC) delivers excellent performance over remote protocols such as RDP. The new Itona J Series represents a significant advance in provision of low cost server based computing. Highly specified with exceptional build quality, the J Series incorporates the most advanced features with very low power consumption. -
Page 9: Chapters In The Manual
Chapters in the Manual Chapter No Chapter Name Description Introduction Contains an overview of the product, information about this guide and abbreviations used in this guide. Installation Contains the procedure to set up the hardware. Specifications Contains hardware, mechanical, electrical, interface and operating environment specifications Troubleshooting... -
Page 10: Installation
You have to install your thin client before you can use it. Installation involves setting up the hardware and connecting the peripherals required for your use. To install the Itona J Series hardware, perform the following steps: 1. Unpack the unit. -
Page 11: Connecting The Accessories And Power Supply
The various connectors available on the rear panel of the client are shown in Figure 2. 1. Two USB Ports 2. Ethernet Port 3. DVI-I Port 4. DVI-D Port 6. DC Power in12 V / 2 A Figure 2: Itona J Series Rear View Installation... - Page 12 Connectors Connector Symbol VGA Port (via dongle) DVI-I Port USB Port Audio output (LINE OUT) Port Microphone input Port RJ45 Ethernet Port Table 1: Connector Symbols Note: Before connecting any cables, ensure that the power cable is unplugged from the unit.
-
Page 13: Connecting To The Server
Figure 3: LAN Connection through TCP/IP 3. Press the power button to turn on the Itona J Series Thin Client. The front panel LED lights up and the client boots up with a beep sound. The Connection Manager screen appears. -
Page 14: Specifications
Specifications Hardware Processor TI DM8148 with 1.0 GHz ARM CPU System Memory Onboard 1 GB DDR3 Storage Memory Onboard 4 GB eMMC Display Support Dual HD support High performance GPU integrated with 3D graphics engine Resolution up to1920x1200 @ 60 Hz Depth: 32 Bit maximum Network 10/100/1000 Ethernet... - Page 15 Humidity 20 to 80% RH non-condensing Specifications...
-
Page 16: External Power Adapter
External Power Adapter Line Voltage 100 V to 240 V AC Line Frequency - 20 C to +65 Power Output 12V / 2 A max Power Management (Energy Star Compliant) Max power consumption < 4 Watt System idle mode 2.58 Watt System off mode 0.21 Watt Specifications... - Page 17 Cables 10/100 LAN Cable Cross Connection - (Without Hub) RJ45 RJ45 TXD+ 1 3 RXD+ TXD- 2 6 RXD- 1 TXD+ RXD+ 3 RXD- 6 2 TXD- Straight Connection - (With Hub) RJ45 RJ45 TXD+ 1 1 TXD+ TXD- 2 2 TXD- 3 RXD+ RXD+ 3...
-
Page 18: Troubleshooting
Troubleshooting This chapter contains solutions for problems you may encounter while using the product. Problem Solution The power-LED on front panel Ensure that the power cord is plugged into an does not glow when the client AC outlet. is switched on. ... -
Page 19: Appendix
Appendix Connectors The following section provides pin details for various connectors on the rear panel of the client. 10/100 LAN Port RJ-45 modular 8-pin jack. 10/100 Mbps. Signal TxD+ TxD- RxD+ RxD- Appendix... - Page 20 DVI-I Port Pin C1 to C5 carry the analogue signal.24+ 5 pin DVI Connector. Signal Signal Signal TMDS Data 2- TMDS Data 1/3 TMDS Data 5+ Shield TMDS Data 2+ TMDS Data 3- TMDS Clock Shield TMDS Data 2/4 TMDS Data 3+ TMDS Clock + Shield TMDS Data 4-...
- Page 21 USB Port 2.0 4-pin series-A receptacle. 4~ 5 ports depending on the model. Signal Appendix...
