New England Arbors London Trellis Assembly Instructions

A S S E M B LY I N S T R U C T I O N S

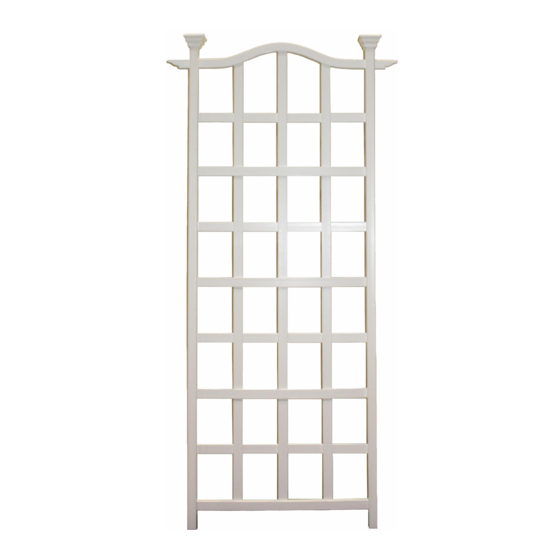

The London Trellis
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.

Check Box for These Contents

In the event of missing or defective parts please call our customer service dept. at
1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
(UK Tel: (44) 2038 687160 (Mon. to Fri. 1:00 PM to 10:00 PM GMT).
1. Arched Top Rail (1) -
10857
2. Post Caps (2) -
10748-1
3. Post - Left (1) -
10858
4. Post - Right (1) -
10859
5. Vertical Spindles (3) -
10860
6. Horizontal Spindles (7) -
10861
7. Bottom Rail (1) -
10862
8. Ground Mounting Extensions (2) -
9. 5/8" (16 mm) Self-Auguring Stainless Steel Screw (12) -

Tools You Will Need

• Cordless Drill
• Hammer
• Tape Measure
• Level
• Shovel

General Information

• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 5'x 8' (1.5 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling component.
69 in
(175 cm)
4.5 in
(11 cm)
27 in
(69 cm)
30 in
(76 cm)
10863
20016
8
9
Not to Scale
www.newenglandarbors.com
www.newenglandarbors.co.uk
78 in
(198 cm)
1
2
3
4
5
6
7
79.2 in
(201 cm)
1.5 in
(4 cm)
1
V2.2/072717
