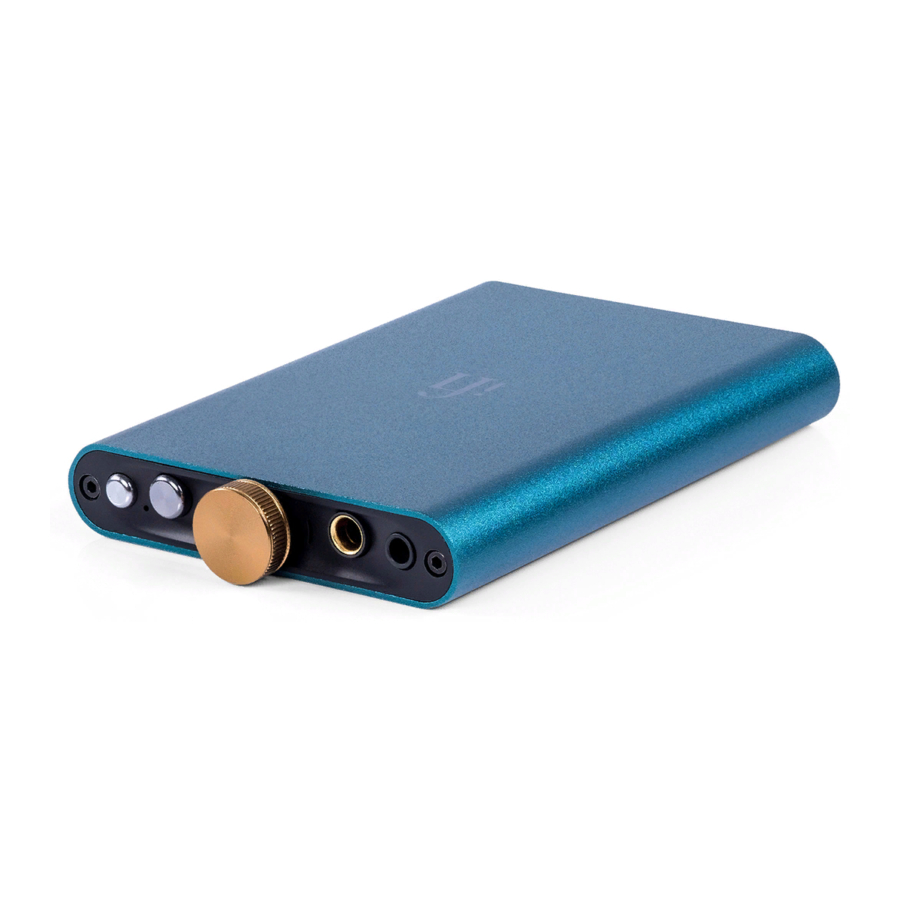

ifi Hip-Dac Manual

H p d a c

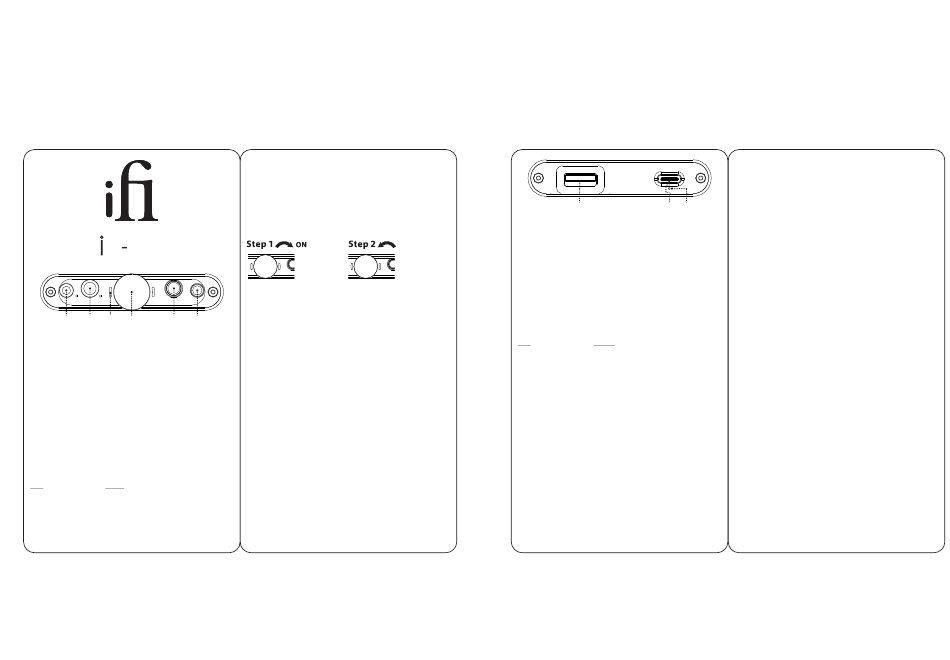

1 2 3 4 5 6
1. PowerMatch® (on/off )
PowerMatch® enables hip-dac to match headphones' impedance
and sensitivity in order to generate their highest operational
efficiency.
Tip: For in-ear-monitors (earbuds) try PowerMatch® off.
For headphones try PowerMatch® on.
2. XBass® (on/off)
Many headphones lack the correct bass response. XBass® is an
analogue circuit designed to 'add back' the lost bass response for a
more accurate reproduction of the original music.
3. Audio Format LED (kHz)
The LED colour scheme indicates the audio format and sampling
frequency received by hip-dac from the music source.
LED Mode
Green 44/48/88/96kHz
Yellow 176/192kHz DXD352/384kHz
Cyan DSD128/DSD64 2.8/3.1/5.6/6.2MHz
Blue DSD256 11.2/12.2MHz
Magenta MQA
Off No valid signal
4. ON/OFF and Analogue Volume Control
The analogue volume control in hip-dac is superior to any digital
volume control.
Warning: Due to the high power of hip-dac, always start off at a low volume level so
that there is no risk of damage to your headphones and your hearing. iFi audio is not
responsible for any hearing or equipment damage from misuse.
Power ON. Power OFF.
OFF
Tip: hip-dac will continue to use battery power even if the USB cable is connected
afterwards.
Tip: For connection to Apple devices, Apple Lightning to USB Camera Adapter is
required. For connection to Android devices, USB On-The-Go (OTG) cable and
appropriate OS support are required.
For more information, please refer to www.ifi-audio.com.
5. Balanced 4.4mm headphone output
Connect balanced 4.4mm headphones.
6. Single-ended 3.5mm headphone output
Connect single-ended 3.5mm headphones.
7 8 9
7. USB3.0 'Type A' data input port
Connect your phone to hip-dac with Lightning to USB Camera
Adapter (Apple) or USB On-The-Go (OTG) cable (Android). When
using other audio sources connect with a USB cable.
Tip: It is preferable to use a USB 3.0 port over using a USB 2.0 port on the PC.
8. USB-C (5V) battery charge input
For charging only. It will take ~3 hours for a high-powered USB
charger to fully charge hip-dac.
9. LED for Battery Status
LED Status
White* > 75%
Green* > 25%
Red* > 10%
Red (flashing) ≤ 10%
*Battery LED will flash when it is charging
Specifications
Formats supported: DSD256/128/64,
Octa/Quad/Double/Single-Speed DSD
DXD(384/352.8kHz),
PCM(384/352.8/192/176.4/96/88.2/
48/44.1kHz)
MQA
Digital Inputs: USB 3.0 type 'A'
High-Speed Asynchronous USB 2.0
(32bit/384kHz)
Headphone Output: Balanced 4.4mm
Single-Ended 3.5mm
Power Output:
BAL:400mW@32Ω; 6.3V@600Ω
S-BAL(SE): 280mW@32Ω; 3.2V@600Ω
Battery: Lithium-polymer 2200mAh
Power System:
Charging via USB-C
BC V1.2 compliant up to 1000mA
charging current
Power (max): <2W idle, 4W max
Dimensions: 102(l) x 70(w) x 14(h) mm
Weight: 125g (0.28 lbs)
Warranty period: 12 months
Specifications are subject to change without notice.
ifi-audio.com
Ver1.3
