BIOPAC Systems, Inc.

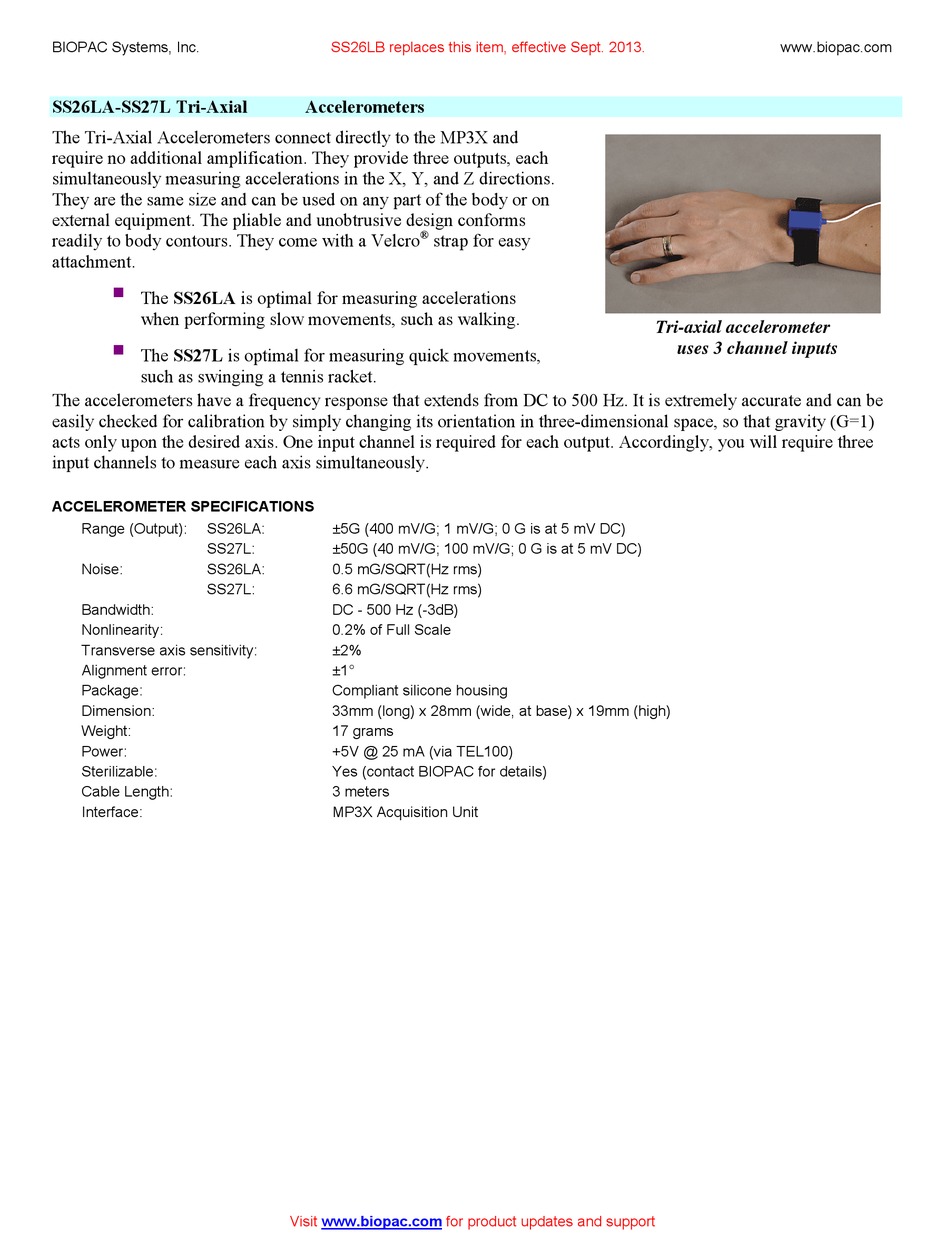

SS26LA-SS27L Tri-Axial
The Tri-Axial Accelerometers connect directly to the MP3X and
require no additional amplification. They provide three outputs, each
simultaneously measuring accelerations in the X, Y, and Z directions.
They are the same size and can be used on any part of the body or on
external equipment. The pliable and unobtrusive design conforms
readily to body contours. They come with a Velcro
attachment.

The SS26LA is optimal for measuring accelerations
when performing slow movements, such as walking.

The SS27L is optimal for measuring quick movements,
such as swinging a tennis racket.
The accelerometers have a frequency response that extends from DC to 500 Hz. It is extremely accurate and can be
easily checked for calibration by simply changing its orientation in three-dimensional space, so that gravity (G=1)
acts only upon the desired axis. One input channel is required for each output. Accordingly, you will require three
input channels to measure each axis simultaneously.

ACCELEROMETER SPECIFICATIONS

Range (Output): SS26LA:
SS27L:
Noise: SS26LA:
SS27L:
Bandwidth:
Nonlinearity:
Transverse axis sensitivity:
Alignment error:
Package:
Dimension:
Weight:
Power:
Sterilizable:
Cable Length:
Interface:
SS26LB replaces this item, effective Sept. 2013.
Accelerometers
®
strap for easy
±5G (400 mV/G; 1 mV/G; 0 G is at 5 mV DC)
±50G (40 mV/G; 100 mV/G; 0 G is at 5 mV DC)
0.5 mG/SQRT(Hz rms)
6.6 mG/SQRT(Hz rms)
DC - 500 Hz (-3dB)
0.2% of Full Scale
±2%
±1°
Compliant silicone housing
33mm (long) x 28mm (wide, at base) x 19mm (high)
17 grams
+5V @ 25 mA (via TEL100)
Yes (contact BIOPAC for details)
3 meters
MP3X Acquisition Unit
www.biopac.com
Visit for product updates and support
www.biopac.com
Tri-axial accelerometer
uses 3 channel inputs
