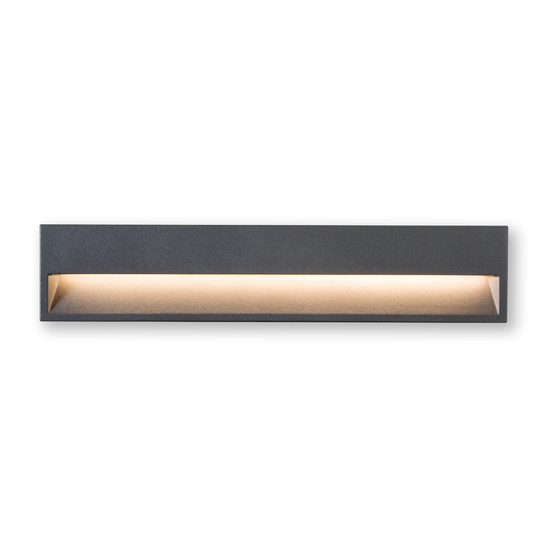

ZEDGE line
ZEDGE line opal
III
24Vdc
220/240V
50/60Hz
304
OPAL
IK07
RG1 secondo norma IEC/TR 62778:2014 / RG1 in accordance with IEC/TR 62778:2014
RG1 selon la norme IEC/TR 62778:2014 / RG1 nach der norm IEC/TR 62778:2014
RG1 enlight IEC/TR 62778:2014 / RG1 volgens IEC/TR 62778:2014
Attenzione! Per gli apparecchi equipaggiati con sistema DALI, tutti i cavi, le connessioni e le attrezzature utilizzate
devono essere conformi e adeguate alla relativa tensione di rete; Il segnale DALI potrebbe non essere trasmesso
con una bassissima tensione di sicurezza (SELV).
Sono disponibili all'indirizzo www.digitalilluminationinterface.org tutte le informazioni generali sul sistema DALI.
Warning! For luminaires equipped with DALI system, all cables, connections and equipment used must comply and
adapt to the relative mains voltage; The DALI signal may not be transmitted with a very low safety voltage (SELV).
All general information on the DALI system are available at www.digitalilluminationinterface.org.
Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy
0,7Kg
-25°C
0,7Kg
misure in (mm)
measures (mm)
RG1 de acordo com norma IEC/TR 62778:2014
6W Sorgente Led / Led source
7W Apparecchio / Fixture
COD. 1E3441 / 1E3445 / 1E3446 / 1E3763
COD. 1E3511 / 1E3513 / 1E3515 / 1E3765
8W Sorgente Led / Led source
9W Apparecchio / Fixture
COD. 1E3442 / 1E3443
COD. 1E3444 / 1E3764
6W Sorgente Led / Led source
8W Apparecchio / Fixture
COD. 1E3512 / 1E3514
COD. 1E3516 / 1E3766
IP66
In caso di dubbi sulla simbologia,
riferirsi al catalogo o al sito web.
If in doubt about the symbols refer
+35°C
to catalog or website
304
IK10
cod. 2EA7CS00_103
24Vdc
220/240V
50/60Hz
EL-DA
220/240V
50/60Hz
EL-DA
52
www.targetti.com
- 1 -
Advertisement
Related Manuals for Targetti ZEDGE
Summary of Contents for Targetti ZEDGE
- Page 1 The DALI signal may not be transmitted with a very low safety voltage (SELV). - 1 - All general information on the DALI system are available at www.digitalilluminationinterface.org. www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 2 L’appareil doit être installer par électriciens qualifies. Targetti ne peut pas être responsable pour toutes les installations qui ne respectent pas les normes de sécurité en vigueur. Diese Leuchte darf nur von qualifiziertem Fachpersonal des Elektrohandwerks installiert werden.
- Page 3 Försiktighet i produkten enligt webbplatsen - www.targetti.com, det kan finnas en mer aktuell version av manualen på produktområdet på web-sidan Para más información acerca del producto puede visitar nuestra página web - www.targetti.com - podría estar disponible una versión más actualizada del presente manual AКТУАЛЬНАЯ...
- Page 4 USARE CAVO 3x1,5mm² MAX USARE CAVO 5x1mm² MAX H05RN-RF Ø7mm÷12mm MAX H05RN-F Ø7mm÷11,5mm MAX USE CABLE 3x1,5mm² MAX USE CABLE 5x1mm² MAX H07RN-RF Ø7mm÷11,5mm MAX H07RN-F Ø7mm÷11,5mm MAX - 4 - www.targetti.com TARGETTI SANKEY S.p.A. Via Pratese n°164 Florence Italy...
- Page 5 USARE CAVO 2x1,5mm² MAX IL GRADO IP66 H05RN-F Ø7mm÷12mm MAX COD. 1E2769 NOT INCLUDED USE CABLE 2x1,5mm² MAX PROVIDE A PROPER ELECTRICAL CONNECTION SYSTEM THAT ENSURE H05RN-F Ø7mm÷11,5mm MAX IP66 GRADE - 5 - www.targetti.com TARGETTI SANKEY S.p.A. Via Pratese n°164 Florence Italy...
- Page 6 INSTALLAZIONE TIPO "A" INSTALLATION TYPE "A" INSTALLAZIONE TIPO "B" INSTALLATION TYPE "B" - 6 - www.targetti.com TARGETTI SANKEY S.p.A. Via Pratese n°164 Florence Italy...
- Page 7 Terra / Ground Blu / Blue Marrone / Brown 220V DA Grigio / Grey Terra / Ground Nero / Black Blu / Blue 24Vdc Marrone / Brown Blu / Blue - 7 - www.targetti.com TARGETTI SANKEY S.p.A. Via Pratese n°164 Florence Italy...
- Page 8 SCHEMA DI COLLEGAMENTO ALIMENTAZIONE E LOOPING WIRING SCHEME FOR MAIN AND LOOPING COLLEGAMENTO ESTERNO AL PRODOTTO / WIRING EXTERNAL PRODUCT COD. 1E2494 COD. 1E2494 COD. 1E2769 COD. 1E3184 COD. 1E3184 COD. 1E2769 - 8 - www.targetti.com TARGETTI SANKEY S.p.A. Via Pratese n°164 Florence Italy...
