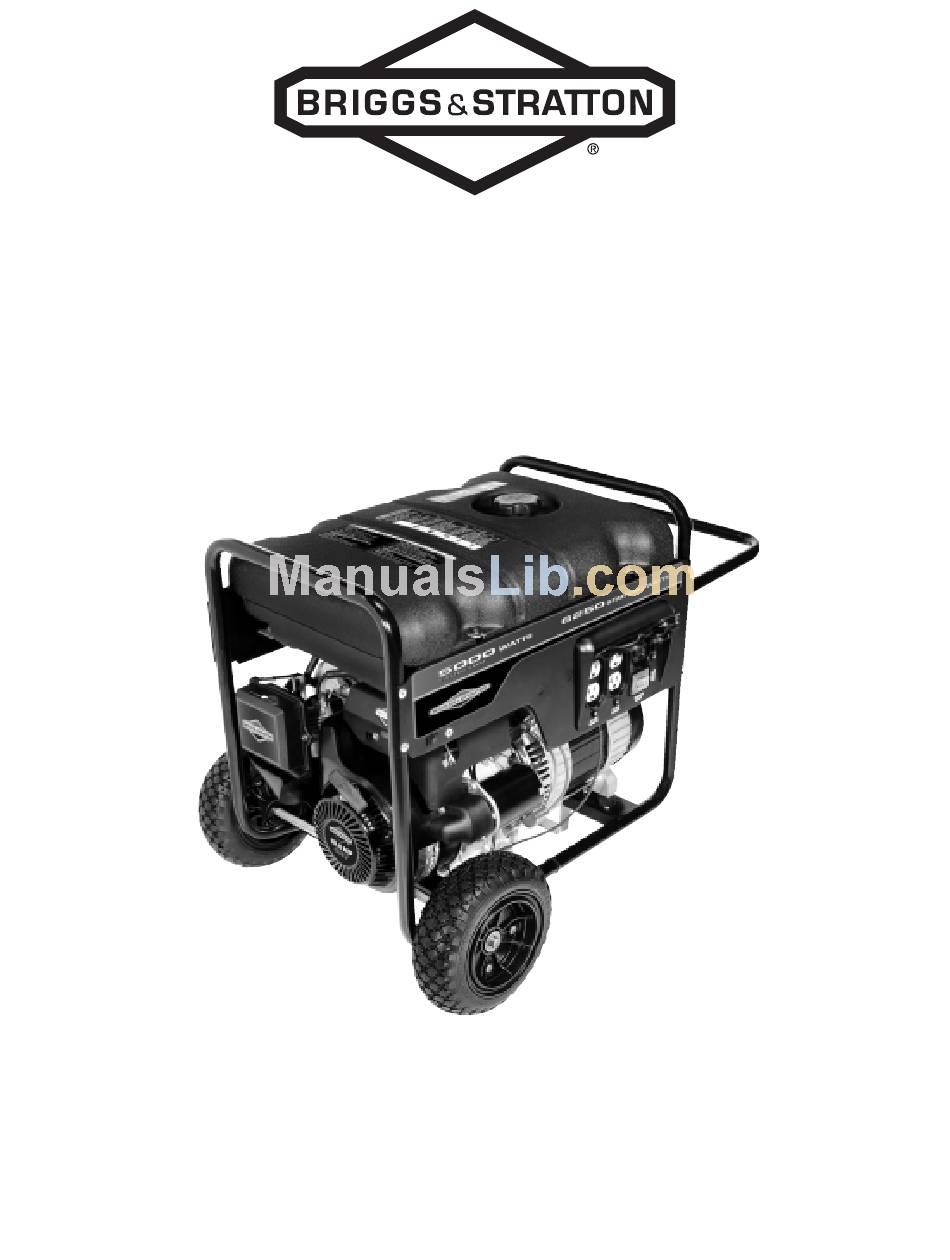

5000 Watt Portable Generator
Illustrated Parts List
This generator is rated and certified to be compliant with CSA (Canadian Standards
Association) standard C22.2 No. 100-04 (motors and generators).
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.
030380 Manual No. 206590A Revision - (03/11/2008)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Briggs & Stratton 30380
Summary of Contents for Briggs & Stratton 30380
-
Page 1: Illustrated Parts List
Illustrated Parts List This generator is rated and certified to be compliant with CSA (Canadian Standards Association) standard C22.2 No. 100-04 (motors and generators). BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC JEFFERSON, WISCONSIN, U.S.A. 030380 Manual No. 206590A Revision - (03/11/2008) -
Page 2: Exploded View - Main Unit
Exploded Views and Parts Lists EXPLODED VIEW - MAIN UNIT Copyright © 2008 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power Products Group, LLC. - Page 3 PARTS LIST - MAIN UNIT Item Part # Description 206822GS ASSY, Cradle (Includes #’s 20, 31 & 194150GS KIT, Vibration, Mount, 45° 67989GS NUT, M8 Flange Serrated 190220GS HOUSING, Engine Adapter ASSY, Alt (see page 4) NUT, Hex M8 - 1.25 TPHMS, M8 - 1.25 x 35 96796GS WASHER, 8.4 x 22.2 x 3...
- Page 4 Exploded Views and Parts Lists ALTERNATOR EXPLODED VIEW & PARTS LIST Item Part # Description 186059GS ADAPTER, Mounting, Alternator 204105GS ASSY., Rotor (Includes Item 8) 203936GS STATOR 186060GS RBC, with O-Ring (p/n 189197) 86308CGS HHCS, M6 - 1.0 x 130 SEMS 91825GS ASSY, Holder, Rectifier/Brush 66849GS...
-
Page 5: Control Panel Exploded View & Parts List
CONTROL PANEL EXPLODED VIEW & PARTS LIST Item Part # 10 201678GS 11 * * - Items without part numbers are common fasteners and are available at your local hardware store. Exploded Views and Parts Lists Description 201571GS PANEL, Control 197472GS COVER, Outlet Flip 201572GS... - Page 6 Exploded Views and Parts Lists WHEEL KIT EXPLODED VIEW & PARTS LIST Item Part # Description 196517GS WHEEL B1764GS SUPPORT, Wheel Kit 191267HGS AXLE WASHER, 5/8" 191265GS E-RING 67989GS NUT, M8 - Flange Serrated HHCS, M8 - 1.25 x 16 Parts Not Illustrated 197594GS SUBKIT, Hardware...
