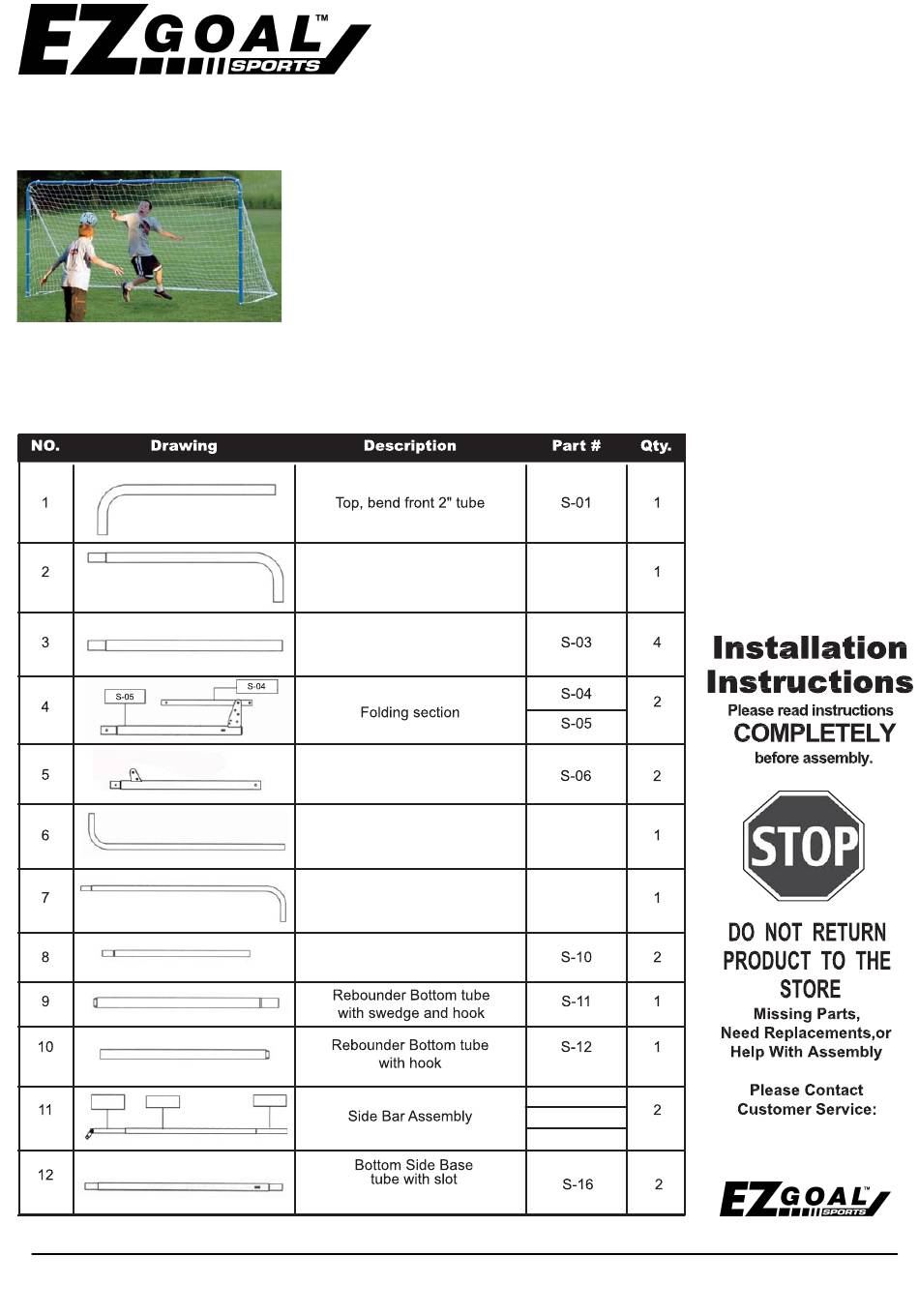

KICKBACK / SOCCER GOAL ASSEMBLY INSTRUCTIONS
12'x6'
Work on a smooth, flat surface. Lay out all components so they are in easy reach.
Read assembly instructions completely to familiarize yourself with the components.
S-13
S-14
63074 english 07 29 16 Rev1
#42
U.S. Patent Nos. 6,558,279 6,652,395
Canadian Patent No. 2,313,845
And Other Patents Pending
Note: Precision Connections will fit snugly. Use
a rubber mallet or block of wood if needed.
2" Top, bend tube with swedge
2" Front, Top, base tube
with swedge.
Upright Side Frame
1.25" Back Base Bend
1.25" Back Base Bend
with swedge
1.25" Back Base Extension
with swedge
2"
2"
S-19
1.25"
Customer Service:
#63074
S-02
S-08
S-09
S-13
S-14
S-19
Service@ezgoal.net
1
W
203 591 9032
WATERBURY, CT 06710, U.S.A
or
203 591 9032
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EZ Goal 63074 W
Summary of Contents for EZ Goal 63074 W
- Page 1 #63074 KICKBACK / SOCCER GOAL ASSEMBLY INSTRUCTIONS 12'x6' U.S. Patent Nos. 6,558,279 6,652,395 Canadian Patent No. 2,313,845 And Other Patents Pending Note: Precision Connections will fit snugly. Use a rubber mallet or block of wood if needed. Work on a smooth, flat surface. Lay out all components so they are in easy reach. Read assembly instructions completely to familiarize yourself with the components.
- Page 2 8mm Allen bolt 3810 Spar Pull Pin 65mm 2 " 5265 9154 5mm Black bungees Spar 9155 5mm Black bungees with hook Spar 12'x6' Soccer Net 69222 15" Rope 9144 EXPLODED VIEW AND PART#S S-06 501204 S-19 S-05 251201 501205 S-13 S-04 281001...
- Page 3 FRAME ASSEMBLY Note: Precision Connections will fit snugly. Use a rubber mallet or block of wood if needed. STEP 1 Connecting front face parts together. Lay out parts for front face (blue pieces) on a large flat surface. Snap pieces together. See figure 1.
- Page 4 FRAME ASSEMBLY STEP 3 Attaching side bars/Side Tilting Assembly Connect the Side tube S19 to the front tube S-06, using the bolts 3810, and Nuts 008. See Figure 3. Face the side part S-13 so the holes are on top. Figure 3 S-19 S-06...
- Page 5 FRAME ASSEMBLY STEP 5 Figure 5 This step requires 2 S-13 adults. Flip the goal up. S-14 Insert the pull pin 5265 through bracket at the bottom of Folding section S-05 and Base tube S-04. 5265 FRAME ASSEMBLY COMPLETE GOAL ASSEMBLY For Soccer and Kickback Figure 6 STEP 1...
- Page 6 KICKBACK/REBOUNDER ASSEMBLY STEP 1 Layout parts for Kickback bar. Snap together. Figure 7 S-03 S-11 S-12 S-03 Front bottom bar Figure 8 STEP 2 Attached 11 bungees with hook to the kickback bar. Be sure to locate bungees evenly on the bar.
- Page 7 Soccer Kickback Rebounder Assembly The net changes easily from a soccer goal to a kickback. Disconnect the net on all sides of the goal except for the top, which will remain connected. Connect the remaining three sides of the net to the front of the goal. Use the bungees to connect the net to the pipe.
- Page 8 NOTE: After the kickback net is properly installed there will be extra netting on the sides and bottom. If you would like you can use the extra bungees to secure the extra netting to the frame so that it is not laying on the ground.
- Page 9 Tilting the Kickback for Rebounding Your goal can be adjusted to various angle for different games. Note: 1. Remove the bottom pull pin before adjusting. See Detail D. 2. Do not tilt Goal forward. Can cause injury. Do not tilt Figure 10 Goal forward.
- Page 10 FOLDING & STORAGE STEP 1 Remove the Pull pins from the Base S-16, See detail G, Press button on the adjusting bar, right turn, slide bottom part of side bar S-14 up to adjusting bar S-13. Note: Make sure the Pull pin in the folding section is locked in place before or when you remove the side bars from the Base.
- Page 11 REPLACEMENT PARTS AND NETS All parts and net are replaceable if lost or damaged. Visit: EZGoal.net, Email or Call Customer Service: Service@ezgoal.net • 203-591-9032 203 591 9032 WATERBURY, CT 06710, U.S.A 63074 english 07 29 16 Rev1 Customer Service: Service@ezgoal.net 203 591 9032...
