Assa Abloy Adams Rite EX89 Preparation Manual

Pullman rim exit device
Hide thumbs

Advertisement

Quick Links

Download this manual

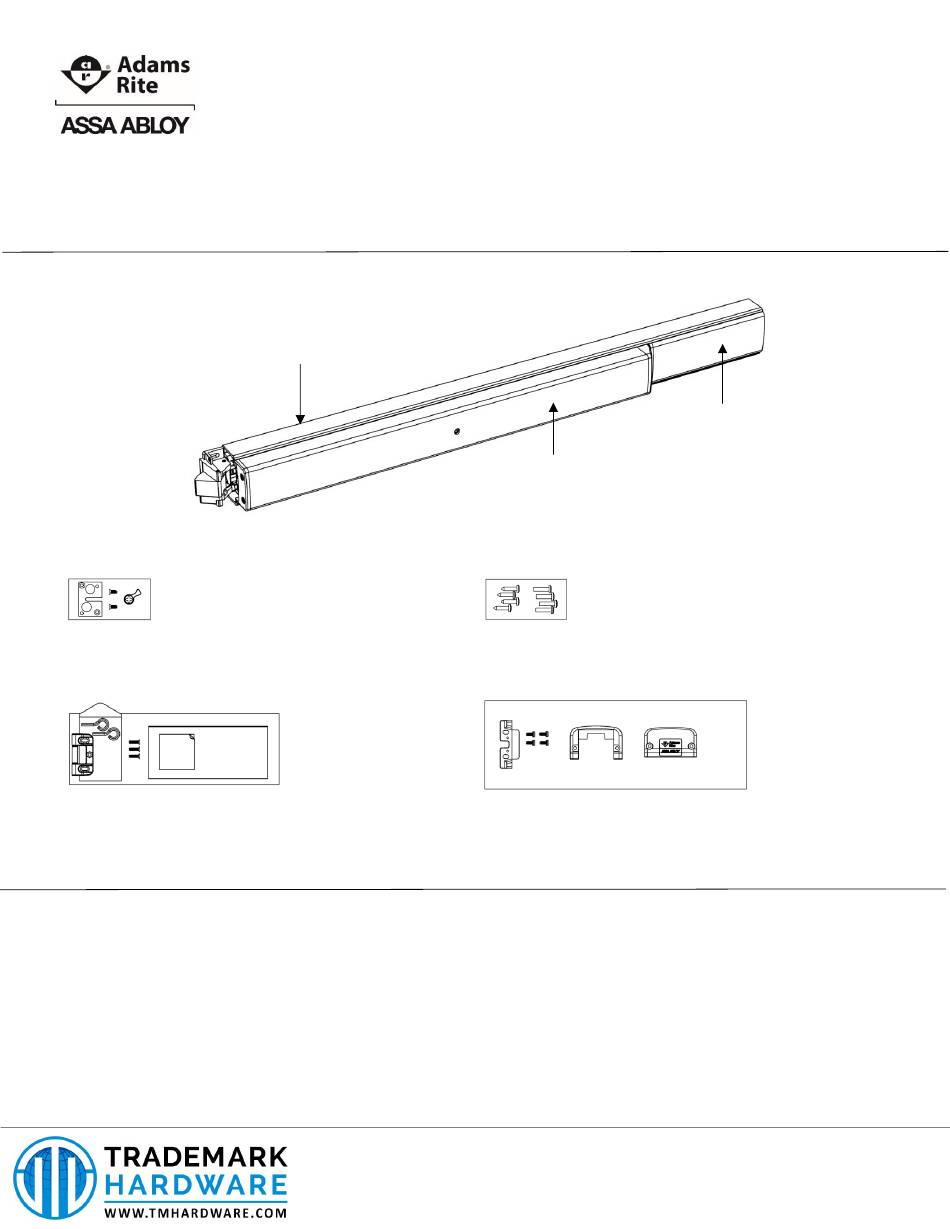

Box Contents
EX89 Pullman Rim Exit Device
Cylinder and Trim Interface Kit
Frame Kit with Templates
Recommended Installation Tools
Safety glasses
Measuring tape
Power drill
Drill bits: 5/32", 3/4"
IMPORTANT NOTE 1: All work must be performed to applicable building, regulatory and life-
safety codes. Please consult local Authority Having Jurisdiction (AHJ) for more information.
IMPORTANT NOTE 2: The Americans with Disabilities Act (ADA) guidelines specify door
hardware be mounted 34"-48" above the finished floor.
EX89 Pullman Rim Exit Device
Preparation Guide and Installation Instructions
Back Bar
Level
Center punch
Active Push Bar
Mounting Hardware Kit
Mounting End Cap Kit
Pencil
Phillips screw driver
E
techsupport.adamsrite@assaabloy.com
Page | 1
Filler Plate
P
800.872.3267
F
800.232.7329
www.adamsrite.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Adams Rite EX89 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Assa Abloy Adams Rite EX89

Summary of Contents for Assa Abloy Adams Rite EX89

  • Page 1 EX89 Pullman Rim Exit Device Preparation Guide and Installation Instructions Box Contents EX89 Pullman Rim Exit Device Back Bar Filler Plate Active Push Bar Cylinder and Trim Interface Kit Mounting Hardware Kit Frame Kit with Templates Mounting End Cap Kit Recommended Installation Tools Safety glasses Measuring tape...
  • Page 2 Preparing the Inside of the Door (LHR Shown) 1. DETERMINE and MARK the applicable bar height centerline (horizontal line) of the exit device on the interior of the door. 2. DETERMINE the location of the latch end door template by using the bar height centerline of the exit device and aligning the template with the mounting centerline (vertical line) of the door.
  • Page 3 Prepping the Frame (LHR Shown) 1. DETERMINE and MARK the applicable bar height centerline (horizontal line) of the exit device on the frame for the strike plate. 2. DETERMINE the location of the strike plate template by using the bar height centerline of the exit device and aligning the template with the surface of the closed door.
  • Page 4 Sizing the Exit Device Standard Door Widths and Mounting Hole Spacing Exit Device Length Regular (R) Midlength (M) Long (L) Standard Door Width 36” 42” 48” No Cut Required Minimum Door Width Exit Device 30” 30” 42” Can Support “B” NOTE: All EX Series Exit Devices are sized at the factory for 5/8”...
  • Page 5 Preparing the Door for Cylinder or Trim 1. PREPARE the exterior and interior of the door for cylinder or trim using the latch end door template and exterior cylinder template, as required. 2. PREPARE the door for cylinder mounting or trim mounting according to manufacturer’s instructions, as required.
  • Page 6 Handing the Exit Device for Installation with Cylinder or Trim NOTE: The orientation of the trim plate differs for LHR and RHR applications. The Trim Actuator is ALWAYS located on the bottom of the Trim Plate. IF installing cylinder or trim, THEN DETERMINE the door handing and INSTALL accompanying Cylinder and Trim Interface Kit Left Hand Reverse –...
  • Page 7 Installing the Exit Device NOTE: Use provided self-tapping screws for aluminum or hollow metal applications. Use provided wood screws for wood applications. 1. INSTALL Mounting Foot on hinge side of door 2. SLIDE the exit device onto the mounting foot using two (2) #10-32 x 3/4”...

  • Page 8: Installing The Strike Plate

    Installing the Strike Plate 10-32 x 3/4" flat head self- tapping screws, 2 qty 10-32 x 3/4" flat head self- tapping screw, 1 qty 1. INSTALL the Strike Plates using two (2) #10-32 4. MARK, CENTER PUNCH, DRILL 5/32” diameter x 3/4”...
  • Page 9 Testing and Adjusting Exit Device Operation 1. PERFORM a visual inspection to make certain exit device will be level and secure. 2. TEST the operation of the Active Push Bar and latching mechanism and ADJUST as necessary (door should open when the Active Push Bar is depressed and properly lock into strike plate when door is closed).

  • Page 10: Maintenance

    Installing the Mounting End Caps 1. INSTALL Hinge End Mounting End Cap on hinge 2. INSTALL Latch End Mounting End Cap on side of door using two (2) #8-32 x 3/8” tri lobe latch side of door using two (2) #8-32 x 3/8” pan head screws.
