TILELINK
INSTALLATION HANDBOOK:
EXTRACT FROM
Installation of SafetyLink Anchor Points
(Full Installation Guide available from website www.heightsafety.com )
READ ENTIRE HANDBOOK BEFORE INSTALLING ANY SAFETYLINK PRODUCT.
ALL PRODUCTS MUST BE INSTALLED IN ACCORDANCE WITH SAFETYLINK'S INSTALLATION
HANDBOOK, USING ONLY PRODUCTS SUPPLIED BY SAFETYLINK PTY LTD.
FAILURE TO FOLLOW ALL WARNINGS AND INSTRUCTIONS MAY RESULT
IN A SERIOUS INJURY OR DEATH.
If you are uncertain and need help please email: safetylink@heightsafety.com.au
Phone: 1300 789 545 or +61 249 972272 | Fax: 1300 738 071 or +61 249 971104
or visit our website www.heightsafety.com
Advertisement
Table of Contents
Related Manuals for SafetyLink TileLink
Summary of Contents for SafetyLink TileLink
- Page 1 (Full Installation Guide available from website www.heightsafety.com ) READ ENTIRE HANDBOOK BEFORE INSTALLING ANY SAFETYLINK PRODUCT. ALL PRODUCTS MUST BE INSTALLED IN ACCORDANCE WITH SAFETYLINK’S INSTALLATION HANDBOOK, USING ONLY PRODUCTS SUPPLIED BY SAFETYLINK PTY LTD. FAILURE TO FOLLOW ALL WARNINGS AND INSTRUCTIONS MAY RESULT IN A SERIOUS INJURY OR DEATH.
-
Page 2: Table Of Contents
Table of Contents WARNINGS ........................3 MAINTENANCE – PERIODIC INSPECTIONS ................. 4 WARRANTIES ........................5 TILELINK ANCHOR UNIT ..................... 6 : TILEL001 .................... 6 RODUCT FITTING THE ANCHOR POINT ..................7 INSTALLATION OF TILELINK ........... E RROR OOKMARK NOT DEFINED APPENDIX .......................... -
Page 3: Warnings
WARNINGS READ CAREFULLY SOMEONE’S LIFE DEPENDS ON IT The building or structure for the anchorages should be assessed by an engineer, unless it is clear to a competent person that the anchorages system is structurally adequate. INSTALLATION MUST BE CARRIED OUT BY, OR UNDER THE SUPERVISION OF A COMPETENT PERSON. -
Page 4: Maintenance - Periodic Inspections
Similarly if the two stabilising joins have been broken this would also indicate the FrogLink/TileLink has arrested a fall and should be replaced. Visually inspect the CableLink anchor point for signs that it has arrested a fall. The cable will have tightened around the rafter and the bottom fixing point will be pulled out and the anchor will need to be replaced. -
Page 5: Warranties
Products are maintained in accordance with Australian Standard 1891.4 (section 9). you notify any claim under this warranty to SafetyLink in writing to the address below no later than 14 days after the event or occurrence concerning the produce giving rise to the claim and you pay all costs related to your claim. -
Page 6: Tilelink Anchor Unit

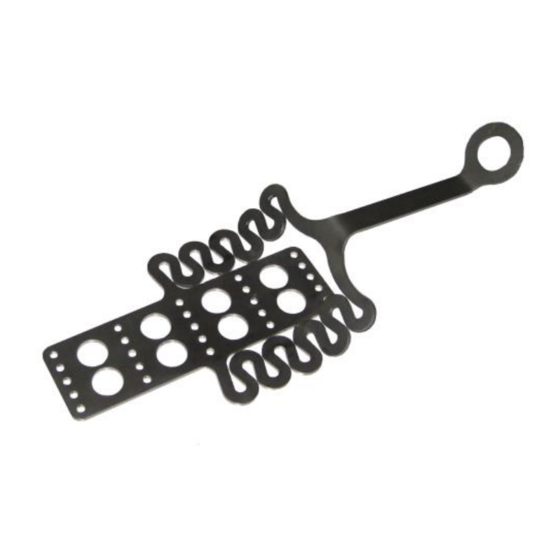

Positioning of TileLink Anchor Point (refer to appendix diagrams 2 and 3) The first TileLink anchor point must be in a position easily and safely reached by a secured ladder or a manhole access point. -
