Summary of Contents for Sky Country MUSCAT-3
-
Page 2: Table Of Contents
Symmetric front collapse Deep stall (parachuting) Full stall Asymmetrical stall Self-rotation Cravat In flight damage Packing Your glider General Glider Care Warrantee and Wing Repairs List of materials. Glider overview Muscat-3 S line plan Muscat-3 M line plan Muscat-3 L line plan... - Page 3 Thank you for choosing SC Muscat-3! This manual will help you to get maximum information about your glider. This is informa- tion about the design of the Muscat-3, advice how to use it best and how to care for it to ensure it has a long life. The manual also includes technical specifications and line plans.
-
Page 4: Technical Data
Technical data size scale 0,923 0,962 1,036 1,072 1,11 wing area, sq.m span, m 10,52 10,97 11,4 11,81 12,2 12,65 projected area, 19,34 21,00 22,7 24,36 26,09 27,96 sq.m projected span, 8,12 8,46 9,12 9,43 9,77 projected a/r 3,39 root chord, m 2,68 2,79 3,11... -
Page 5: Risers
The risers are equipped with accelerator, that increases the speed range of the glider. Accelerator travel is 12 cm for S, M and L sizes. Muscat-3 does not have trimmers and any other adjustable or re- movable or variable device. -
Page 6: Launching
Practise ground handling a lot! It will help you feel your glider bet- ter. In Flight Characteristics Muscat-3 has long brake travel, light brake pressure and turns very well. It also has high resistance to deflations in turbulence. Maximum symmetric control travel is 60 cm for S size, 70 cm for M and L sizes. -
Page 7: Turn Control
When you need to turn fast, you should swing Muscat-3 in the op- posite direction and then pull as hard as needed the internal brake. -
Page 8: B-Stall
8-10 m/sec. In order to return to normal flight sim- ply release the B-risers and your Muscat-3 will get out of the B-stall with a small front dive. You can use the brakes once the horizontal speed is gained. -
Page 9: Landing
In small winds, when you have 1-2 meters to the ground, you should pull the brakes gently to your arms’ full length, so that you put your Muscat-3 in stall at a height of about 0.2 -- 0.5 m and the horizontal speed is zero. -
Page 10: Full Stall
After this usually comes a front dive with a possible front deflation. Just because Muscat-3 warns the pilot about stalling by increasing the brake load, it is highly unlikely for you to enter it unexpectedly. -
Page 11: Packing Your Glider
- Keep it away from water and other liquids - Do not let the front edge hit the ground - If wet dry Muscat-3 in shade. If soaked in salty water, rinse the glider thoroughly in non-salty water - Keep your glider away from fire - Do not put anything heavy on your glider, do not pack it in a ruck- sack too tightly. -
Page 12: Warrantee And Wing Repairs
100 hours of flying time (whichever comes first); Those inspection must be made by manufacturer or dealer. If damaged, your Muscat-3 must be repaired by manufacturer, or dealer. Small holes in Skytex may be repaired with sticky rip-stop tape. -

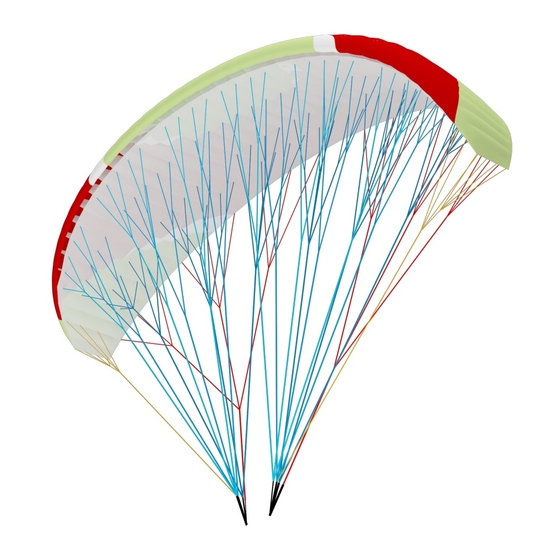

Page 14: Glider Overview
Glider overview Общий вид параплана 1 - top surface / верхняя поверхность 2 - bottom surface / нижняя поверхность 3 - air intake / воздухозаборник 4 - lines / стропы 5 - risers / свободные концы... - Page 15 Risers Свободные концы Risers for Muscat-3 S,M,L. Length 500 mm Свободные концы Muscat-3 S,M,L. Длинна500 мм...
- Page 17 Lines measurement Muscat-3S Overall lines lengths measured from the lower surface of the cano- py to the inside edge of the maillon. Длины строп, замеренные от нижней поверхности купола до внутренней части коннектора. brake 6035 5935 6015 6125 5985 5885 5955 6075 6880...
- Page 19 Lines measurement Muscat-3M Overall lines lengths measured from the lower surface of the cano- py to the inside edge of the maillon. Длины строп, замеренные от нижней поверхности купола до внутренней части коннектора. brake 6270 6165 6255 6375 6220 6115 6195 6325 7150...
- Page 21 Lines measurement Muscat-3L Overall lines lengths measured from the lower surface of the cano- py to the inside edge of the maillon. Длины строп, замеренные от нижней поверхности купола до внутренней части коннектора. brake 6270 6165 6255 6375 6220 6115 6195 6325 7150...
- Page 23 MUSCAT-3 Serial number Production date Test pilot Dealer Date Wing check and repairs information...
- Page 24 USER’S MANUAL version 1.1 issued February 2016...
