Sylvac D70 Quick Start-Up

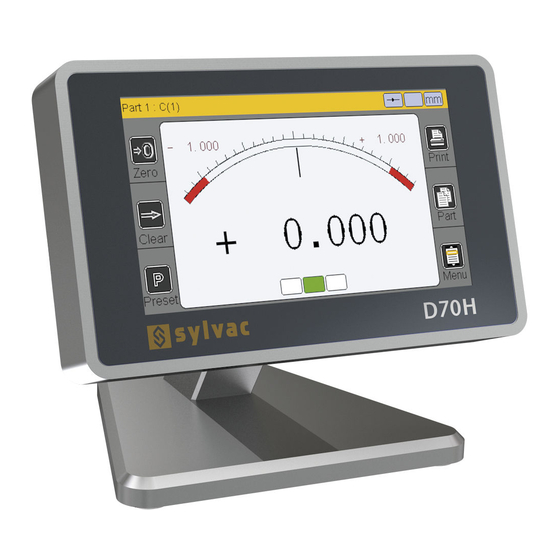

D70S/i/H Quick Startup
Installation
Remove the D70 from its packaging and connect the plug or mini-USB
at the back of the unit to a wall socket or to one of your computer's USB
ports.
To start the D70, press the on/off button at the back of the unit (see
connectors).
The D70 has four M5-thread holes, meaning that it can be affixed to a worktop, or the base
can be removed in order to place it anywhere.
Note: The four anti-slip pads need to be removed before the D70 can be affixed to a worktop.

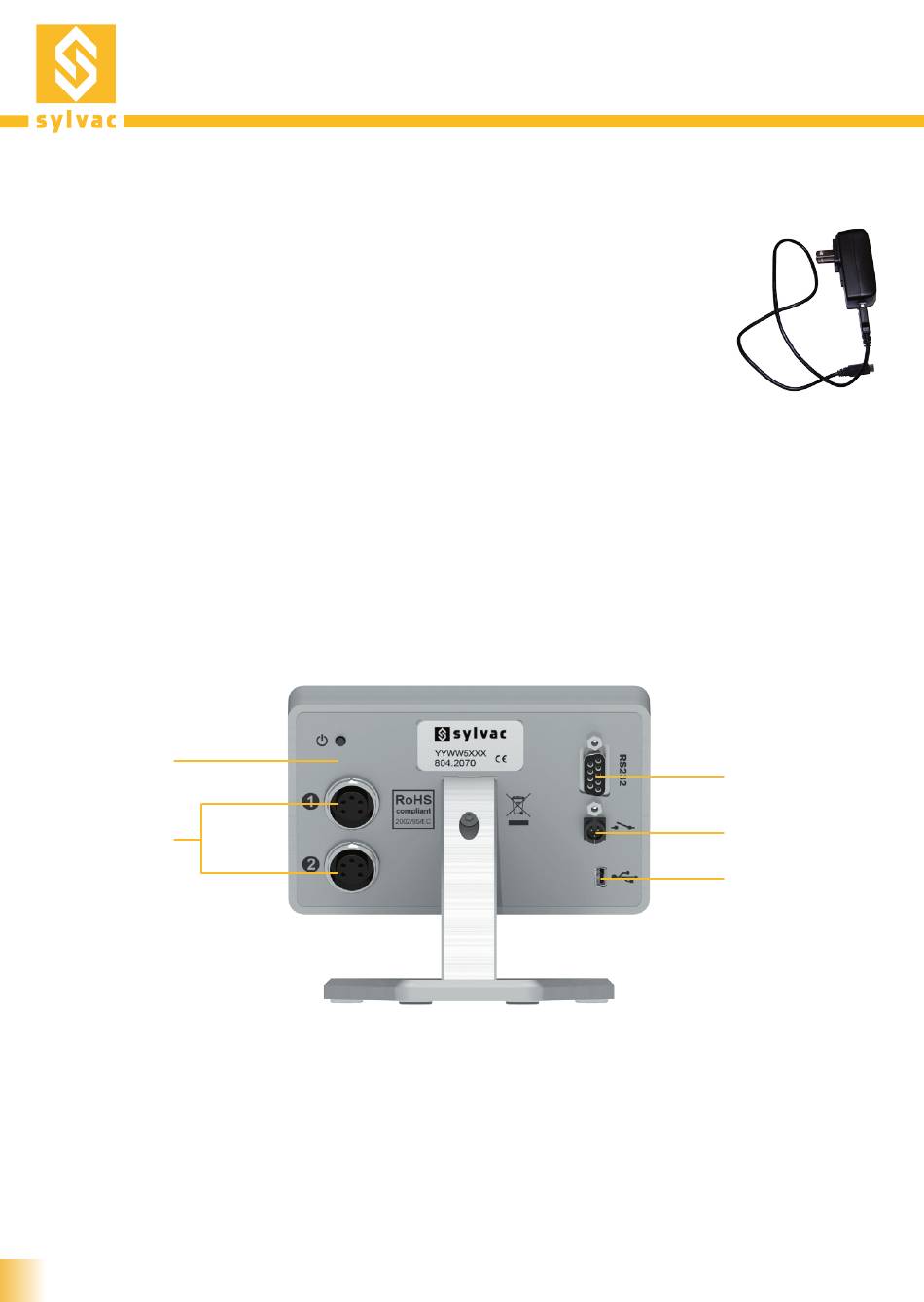

Connectors
On/off button
(hold for 2 s to
switch off)
Two ports for
Sylvac inductive
or capacitive
sensors (or
Heindehein sen-
sors on version H)
Linearisation/Correction table
The D70 allows the linearity of the probes to be corrected by inputting a correction table contai-
ning up to 25 points. This allows a significant improvement in the performance of the connec-
ted probes.
1
RS232 connector for PC
communication
Connector for pedal
Mini-USB connector
for power supply and
transferring the mea-
surement to a PC
