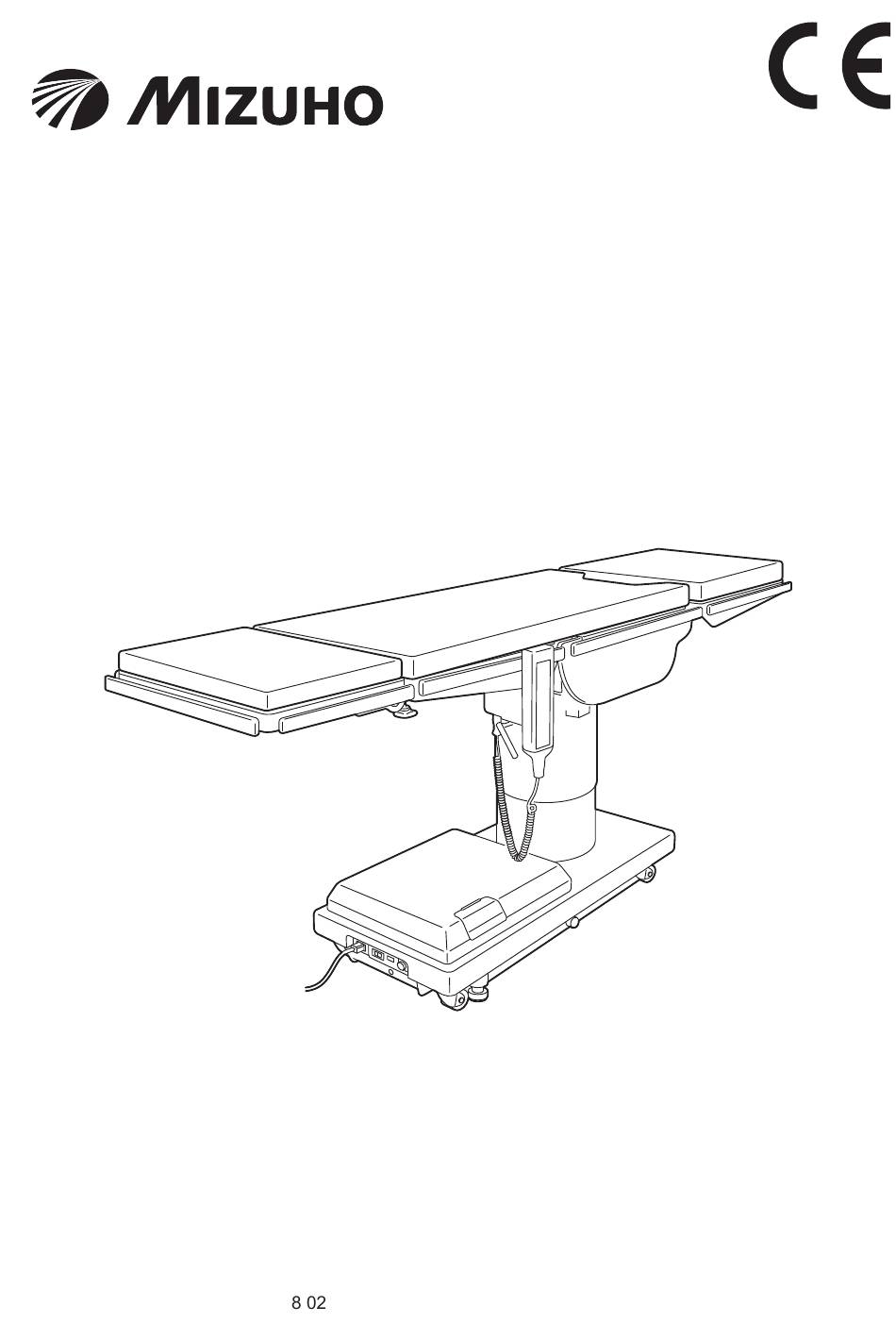

- Page 1 Operating Table Operator's Manual MOT-6702 MES-CK18-200-11EN Ver5 201 .
-
Page 2: Table Of Contents
Page 1 TABLE OF CONTENTS Title Page WARRANTY ·················································································································································· 3 EQUIPMENT LABELS ·································································································································· 4 SAFETY & HEALTH SYMBOLS ···················································································································· 5 TABLE SPECIFICATIONS ····························································································································· 7 SPECIAL USER ATTENTION ························································································································ 9 SECTION I INTRODUCTION ··················································································································· 16 1-1. General ········································································································································· 16 1-2. Power Requirements ···················································································································· 16 1-3. - Page 3 Page 2 TABLE OF CONTENTS (continued) Title Page SECTION IV ELECTROMAGNETIC EMISSIONS ···················································································· 38 Although current at time of publication, MIZUHO's policy of continuous development makes this manual sub- ject to change without notice.
-
Page 4: Warranty
Page 3 WARRANTY MIZUHO Corporation will repair defective parts of this product without charge for one year from the date of delivery/installment except for cases of damage caused by a third party's repair, act of nature, improper use or damage on purpose. All other warranty terms and conditions are subject to... -
Page 5: Equipment Labels
Page 4 EQUIPMENT LABELS... -
Page 6: Safety & Health Symbols
Page 5 SAFETY & HEALTH SYMBOLS Used On Used In Symbol Description Product Manual NOTE Indicates important facts or helpful hints General warning sign (WARNING, CAUTION) ISO 7010-W001 Type B applied part IEC 60417-5840 IPX4 Enclosure class (Splash-proof) IEC 60529 Indicates waste disposal information WEEE Blue... - Page 7 Page 6 SAFETY & HEALTH SYMBOLS Used On Used In Symbol Description Product Manual General prohibition sign ISO 7010-P001 Blue General mandatory action sign ISO 7010-M001 Emergency stop IEC 60417-5638 Protective earth (ground) IEC 60417-5019 Defibrillation-proof Type B applied part IEC 60417-5841 Earth (ground) IEC 60417-5017...
- Page 8 Page 7 TABLE SPECIFICATIONS 240 mm 464 mm 485 mm 585 mm TOP VIEW 364 mm 1926 mm 60° 500 mm 150 mm 75 mm 90° 1053 mm 600 mm 483 mm 943 mm FRONT VIEW SIDE VIEW Electrical Specifications Power Requirements: 100 - 240 VAC, 50 - 60 Hz, 400 VA Current Leakage:...
- Page 9 Page 8 TABLE SPECIFICATIONS Mechanical Specifications Maximum Lifting Capacity: 540 kg Maximum Articulating Capacity: 450 kg The height and width to be able to pass by: Height 10 mm/Width 80 mm (0.4m/s±0.1m/s)
-
Page 10: Special User Attention
Page 9 SPECIAL USER ATTENTION Prior to use, all personnel that may operate this In general, common sense will dictate when there is table must be instructed in the correct opera- a potential hazard. tional procedures. This table is designed for use by trained and qualified personnel for human The following precautions should be reviewed medical purposes only. - Page 11 Protective earth. NOTE Power Cord has to be used the one operating table built-in which has a logotype of MIZUHO. self-diagnosis function to check if the operating table and control unit work properly. WARNING Please don't position the surgical table 1.
- Page 12 Page 11 SPECIAL USER ATTENTION NOTE WARNING When the red light starts to blink (indi- Please confirm that the operating table cating low power in battery) the table is fixed stably after applying the brakes. will operate for approximately 5 contin- uous minutes, typically long enough to DO NOT unlock brakes when patient is use the table for the rest of the day.
- Page 13 Page 12 SPECIAL USER ATTENTION NOTE NOTE To prevent table damage, a safety in- When REFLEX button is activated, if terlock limits Trendelenburg positioning Kidney Bridge is up, the back section to 20° if lateral tilt positioning exceeds will not go above horizontal. 20°.
- Page 14 Page 13 SPECIAL USER ATTENTION NOTE WARNING The Emergency Brake Release Valve Make sure the TOP ROTATION LOCK must be closed and tightened (coun- HANDLE is tightened and the brakes ter-clockwise) before activating any hy- are set before transferring the patient. draulic function.
- Page 15 MIZUHO accessories. table board. Accessories and products not furnished Tag which indicates that a mattress is by MIZUHO have not been tested for an applied part and is made by proper performance and safety. Such MIZUHO is attached on a mattress.
- Page 16 SECTION I HYDRAULIC SYSTEM MECHANICAL TABLE SECTION II ADJUSTMENTS HYDRAULIC SECTION III TROUBLESHOOTING SECTION IV ELECTRICAL SYSTEM ELECTRICAL SECTION V TROUBLESHOOTING Maintenance Manual can be obtained only by the person who has had the service training of MIZUHO.
-
Page 17: Section I Introduction
Page 16 SECTION I INTRODUCTION MATTRESS MATTRESS MATTRESS Tokyo, Japan PIN 50005M2 SEAT SECTION KIDNEY SECTION 671DU03 BACK SECTION HEAD SECTION SECTION Tokyo, Japan 671DU04 PIN 672A6M1 562GU01 Tokyo, Japan PIN 360L8M2 SIDE RAIL LEG SECTION RELEASE LEVER (RECESSED) HEAD SECTION LOCKING KNOB PENDANT PENDANT CONTROL... -
Page 18: Pendant Control Unit
Page 17 SECTION I INTRODUCTION The function push buttons are identified with abbre- 1-3. Pendant Control Unit viated descriptions for all functions. See figure 1-5. When illuminated the Trendelenburg and table up The hand-held pendant control unit (figure 1-3) has buttons are red, the remaining buttons are all green. -
Page 19: Floor Lock/Brake System
Page 18 SECTION I INTRODUCTION 1-4. Floor Lock/Brake System The floor lock/brake system consists of four self-leveling, hydraulic brake cylinders which raise and support the table base off from the casters. Press the TABLE UP button on the pendant control to set the table’s brakes. -
Page 20: Section Ii Operation
Protective earth. culty to disconnect the Equipment by Power Cord has to be used the one plug or appliance outlet. which has a logotype of MIZUHO. -
Page 21: Battery Operation
Page 20 SECTION II OPERATION 2-3. Battery Operation 2-5. Charging the Battery a. Make sure the Battery Indicator and Main Power Batteries should be charged: Switch indicator lights, on the electrical panel, are When the table is placed into initial service OFF. -
Page 22: Positioning Functions
Page 21 SECTION II OPERATION WARNING If the table is stored for a period greater than 6 months, the batteries should be removed and stored in a dry, clean condition at a storage temperature of POWER CORD POWER SWITCH BATTERY INDICATOR FOOT SWITCH 68°F (20°C). -
Page 23: Floor Lock/Brake System
Page 22 SECTION II OPERATION Press the ENERGIZE button and then the BRAKE OPERATOR’S 180° POSITION UNLOCK button on the pendant control to release the four self-leveling brake feet in order to move the table. See figure 2-6. The brake delay circuit auto- matically retracts the brake system. -
Page 24: Trendelenburg
Page 23 SECTION II OPERATION Prior to unlocking brakes, check for ob- b. Trendelenburg To place the table in a Trende- structions on the floor that might pre- lenburg (head down) position, press the ENERGIZE vent the table from moving smoothly to button and then the TREND button (figure 2-7). -
Page 25: Lateral Tilt
Page 24 SECTION II OPERATION c. Lateral Tilt To achieve lateral tilt right (as d. Back Section To raise the back section, press viewed from the head end of the table), press the the ENERGIZE button and then the BACK UP but- ENERGIZE button and then the TILT RIGHT button ton (figure 2-9). -
Page 26: Elevation
Page 25 SECTION II OPERATION e. Elevation To raise table top, press the ENERGIZE button and then the TABLE UP button (figure 2-10). The table will lift a patient weight of 540 kg up to a maximum height of 1053 mm (1143 LEG UP LEG DOWN mm with X-Ray top and 50 mm pad). -
Page 27: Kidney Lift
Page 26 SECTION II OPERATION h. Kidney Lift To raise the built-in kidney lift, press j. Beach Chair To place the top in the beach chair the ENERGIZE button and then the KIDNEY UP position from a level position, press the ENERGIZE button (figure 2-13). -
Page 28: Emergency Back-Up Controls
Page 27 SECTION II OPERATION CAUTION CAUTION Please use the emergency switch at the EMERGENCY BRAKE LOCK urgent case only. switch does not activate the brake sys- tem timer. The switch must be held until the brakes are completely locked, ap- 2-8. -
Page 29: Head Section
UNLOCK button on the pendant control tension ONLY. Do not reverse the patient on the will have to be pressed before brakes table without first consulting with MIZUHO. will lock again. Two locking knobs are located on the inside of the leg section for securing the head section. -
Page 30: Leg And Back Section Removal
Page 29 SECTION II OPERATION NOTE 2-11. Leg and Back Section Removal The Leg and Back sections are labeled a. The Leg Section and the Back Section on the for proper orientation. The Leg section 6702 tables are both removable. See figure 2-22 cannot be installed on the Back section (Leg Section shown). -
Page 31: Positioning
The mattress should be attached in order not to come off while being in use. 1. Attach a mattress to table board. A mattress which is made by MIZUHO and is WARNING exclusive use of this table is used. (Refer to... - Page 32 Tag which indicates that a mattress is fessionals only. an applied part and is made by MIZUHO is attached on a mattress. Place a patient on the table after a 70mm minimum thickness mattress is certainly attached onto the table top for safeness of a patient.
-
Page 33: Section Iii Maintenance
The following preventive maintenance checks and services are recommended to ensure the servicea- The following inspections should be done before bility and proper operation of your MIZUHO Surgical and after each use of the table. Table, and should only be performed by qualified MIZUHO trained personnel. -
Page 34: Cleaning Recommendations
Page 33 SECTION III MAINTENANCE Apply cleaning fluid liberally to top and sides of each 3-3. Cleaning Recommendations pad and wipe with a clean lint-free cloth. NOTE Using a clean, damp, lint-free cloth, wipe the pads Always follow current AORN Journal to remove the cleaning fluid. - Page 35 Page 34 SECTION III MAINTENANCE b. Disinfection The following procedure should be followed when disinfecting an operating table. 1. Remove all table pads from the operating ta- ble. 2. Apply a proper quantity of disinfectant on the clean and lint-free cloth, and wipe the top and sides and bottom of the pads with the cloth.
-
Page 36: Operator Troubleshooting
2red Replacement and reconnect of battery and fuse and reset of breaker have to be performed by trained service staff of MIZUHO. If corrective actions for the following symptoms are necessary, be sure to contact an agency of MIZUHO. - Page 37 Page 36 SECTION III MAINTENANCE SURGICAL TABLE MAINTENANCE MATRIX Component 1 Year 2 Years 5 Years 7 Years Lateral Tilt Housing Bolts Side Rails & Gravity Stops Velcro Hydraulic Oil Level A.C. Power Cord Self-Leveling Brake Pad Lubricate Casters Lubricate Elevation Column Tighten X-Ray Top Standoffs &...
-
Page 38: Service
The end of the useful life for the MIZUHO Surgical Table is when this product can no longer be ser- Please contact your local distributor or viced to comply with MIZUHO standards as deter- manufacturer for maintenance or repair. - Page 39 Page 38 SECTION IV ELECTROMAGNETIC EMISSIONS Medical Electrical Equipment needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in this manual. Portable and mobile RF communications equipment can affect Medical Electrical Equipment. The use of Accessories, transducers, and cables other than those specified, with the exception of transducers and cables sold by the Manufacturer of this device as replacement parts for internal components, may result in increased Emissions or decreased Immunity of the 6702 Surgical Table.
- Page 40 Page 39 SECTION IV ELECTROMAGNETIC EMISSIONS RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT AND THE 6300 SURGICAL TABLE The 6702 Surgical Table is intended for use in an electromagnetic environment in which radiated RF dis- turbances are controlled. The customer or the user of the 6702 Surgical Table can help prevent electromag- netic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the 6702 Surgical Table as recommended below, according to the maximum output power of the communications equipment.
- Page 41 Page 40 SECTION IV ELECTROMAGNETIC EMISSIONS GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY The 6702 Surgical Table is intended for use in the electromagnetic environment specified below. The cus- tomer or the user of the 6702 Surgical Table should assure that it is used in such an environment. Electromagnetic environ- Immunity test IEC 60601 test level...
- Page 42 Page 41 SECTION IV ELECTROMAGNETIC EMISSIONS GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY The 6702 Surgical Table is intended for use in the electromagnetic environment specified below. The cus- tomer or the user of the 6702 Surgical Table should assure that it is used in such an environment. Electromagnetic environment –...
- Page 43 Authorized Re presentati ve Europe: Sale Age nt Manufacture r: Emergo Europe B.V. Prinsessegracht 20, 2514 AP 3-30-13 Hongo, Bunk yo-ku The Hague, The Netherlands Tok y o 113-0 033, Japan http://www.mizuho.co.jp...
