Wave wifi TIDAL WAVE Quick Start Manual

AVE
WiFi
Wall Socket
Laptop Computer
Power adapter plugs
into wall socket.
Plug the end of the wall
adapter into the input of
the POE
Ethernet end plugs into laptop or router.
One Wi-Fi Rubber duck antenna per
Ethernet Cable
frequency. One for 2.4GHz and One for
5GHz. Both antennas are Dual Band.

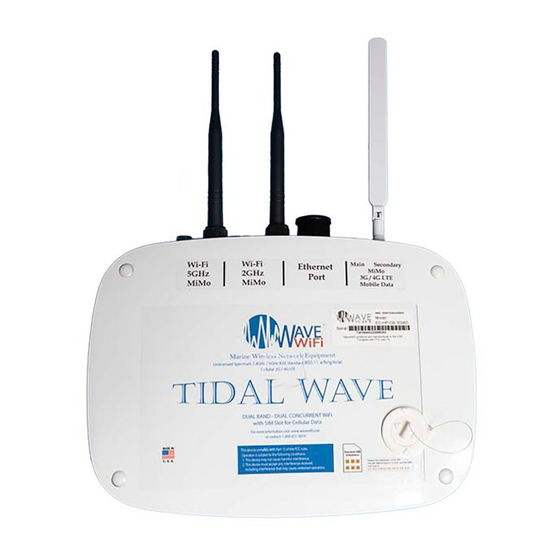

Back View of Tidal Wave
1 Gig PoE Ethernet Port
Main & Secondary
Main & Secondary Main & Secondary
Cellular Antenna 2.4GHz Antenna 5GHz Antenna
HOW TO CONFIGURE / OPERATE:
1. Plug one end of the ethernet cable provided into the ethernet port of the unit.
2. Plug the other end of the ethernet cable into the POE (Power Over Ethernet) injector.
3. Plug the power supply into the POE injector (Both lights on the POE should show solid green).
4. Plug the POE injector into the ethernet port of a laptop, computer or router.
*When plugging into a router it will be the "internet" or "WAN" port.*
Connecting directly via ethernet port with Laptop:
1.) Open a web browser and type in 192.168.89.1 in the URL bar at the top.
2.) From the network scan page, connect to a network that you are familiar with.
3.) The connection should read, "(Three dots)..., Checking IP, Got Internet".
Connecting wirelessly with a Router:
1.) Connect wirelessly to the router that your EC unit is PHYSICALLY connected to via laptop, tablet or smartphone.
2.) Open a browser and at the top URL bar type: 192.168.89.1
3.) Once on the interface page of the unit, click on a network and type in a passowrd if needed.
4.) The connection should read "(Three dots)..., Checking IP, Got Internet".

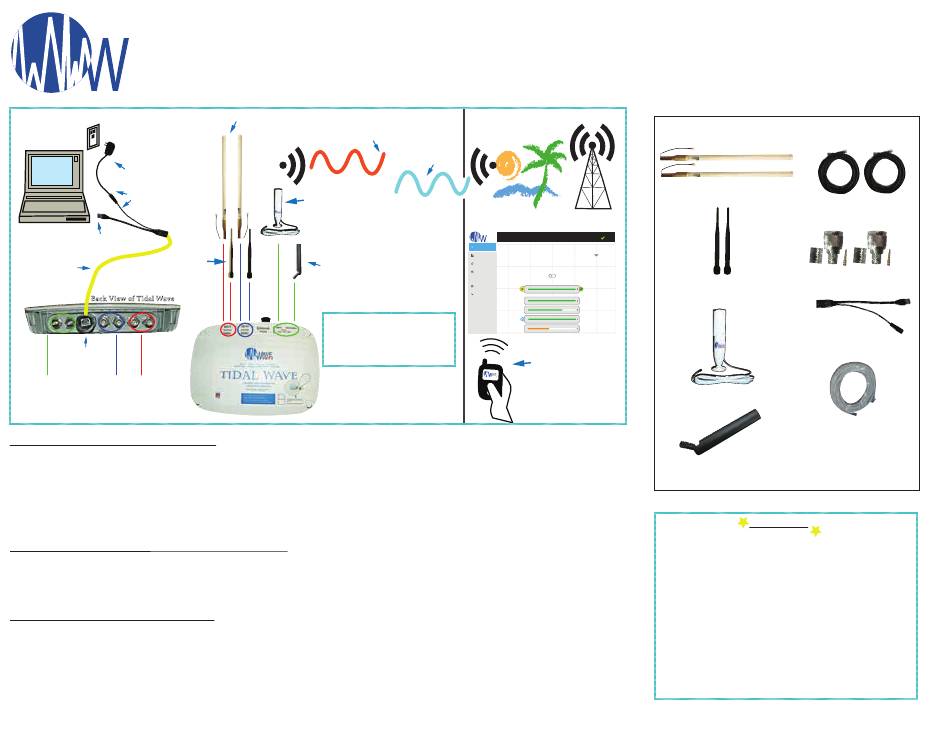

TIDAL WAVE
Quick Start Guide
One 3' Antenna Per Wi Fi Frequency.
One for 2.4GHz and One for 5GHz.
Both antennas are Dual Band. Frequencies Going
to Shore
Wi-Fi Signal
Frequencies From
Shore to Ship
One Main
Cellular Antenna
One Secondary
Cellular Antenna
When connecting the cables be sure that you
check that all connections are making contact.
If there is no connection between the center
core of the antenna cable and the pin of the "N"
connector there will be poor reception
performance from the system.
Page 1
Cell Tower Signal
Wi-Fi Signal
Connection: Mobile Data 1
IP: 10.58.77.12 (DHCP)
AVE TM
Internet: Verizon
WiFi
Scan NOTE: If you have mobile broadband devices installed and
need to reset them (i.e. adding and/or removing SIM cards,
etc.), please disconnect any existing connections below, then
click on the red "X" next to "Internet:" on the top right to reset Channels Graph
Stats the devices.
Available wireless networks
Favorites
(32)
Settings Sort networks by:
Signal strength only Security, then signal
Current connection (Click here to disconnect.)
Weather
Channel: 0 Mobile Data 1
-0 dBm
Social Media
Channel: 0 Mobile Data 2
-0 dBm
Channel: 6 Xfinity
-55 dBm
Channel: 11 WaveWiFi AP
-13 dBm
Channel: 11 ATT5gwYhrX
-75 dBm
Wirelessly connect to your
onboard router and Manage your
Tidal Wave network sources all
from one comprehensive browser
based interface.
Did you get all of your accessories?
-
x2 3ft Dual Band Antennas
x2 Ultra Flex 400 Low Loss
x2 Spare N Connectors
x2 Dual Band Wi-Fi Rubber
Duck Antennas
PoE Injector
Cell Antenna + Cable with SMA
25ft CAT5e Cable
Small Cellular SMA Antenna
***Wave WiFi suggests Initial setup be with a Laptop.***
Quick Tips
1. Wave WiFi suggests not using Internet Explorer as a
browser to manage Wave systems.
2. Type in the APN of your cellular provider BEFORE
inserting the SIM. See Page 3.
3. WE SUGGEST NOT FAVORITING YOUR "MOBILE
DATA 1" CONNECTION. Favoriting this connection could
result in excessive data charges on your cellular plan.
4. Power cycle the system when changing out SIM cards.
5. Lowering the transmission power on the settings page
can sometimes improve connection in a crowded marina.
Copyright Wave WIFI Inc., 2018. All rights reserved.
