Wave wifi Rogue Wave Quick Start Manual

AVE
WiFi
On the Water and Online
Did you get all of your accessories?
POE
Injector
Mount
Cigarette adapter
(not included
with Rogue Pro)
Antenna
CAT5e
Power Adapter
Ethernet Cable
***Wave WiFi suggests Initial setup be with a Laptop
HOW TO CONFIGURE / OPERATE:
1. Plug one end of the ethernet cable provided into the base of the unit.
*For Rogue Wave seal the ethernet hole with the white rubber grommet provided*
2. Plug the other end of the ethernet cable into the POE (Power Over Ethernet) injector.
3. Plug the power supply into the POE injector (Both lights on the POE should show solid green).
4. Plug the POE injector into the ethernet port of a laptop, computer or router.
*When plugging into a router it will be the "internet" or "WAN" port.*
Connec�ng directly via ethernet port with Laptop:
1. Turn off the wireless capability of the laptop (if needed).
2. Open a web browser and at the top URL bar type: 192.168.89.1
3. Once on the interface page of the unit, click on a network and
type in a password if needed.
4. The connec�on should read "(Three dots)..., Checking IP, Got
Internet".
NOTE: While the unit's light-weight, compact, weather resistant design makes it the ideal portable Ethernet converter/Wireless Bridge for temporary
Internet access, prolonged exposure to the elements may cause premature deteriora�on of the internal circuitry and shorten the life of the unit. The
Unit's Warranty Policy specifically states that the warranty is void if the failure is a�ributable to misuse, mishandling, improper installa�on, altera�on
(including removing or oblitera�ng labels) and opening or removing external covers.
Version Bravo
Rogue Quick Start Guide
**NOTE**

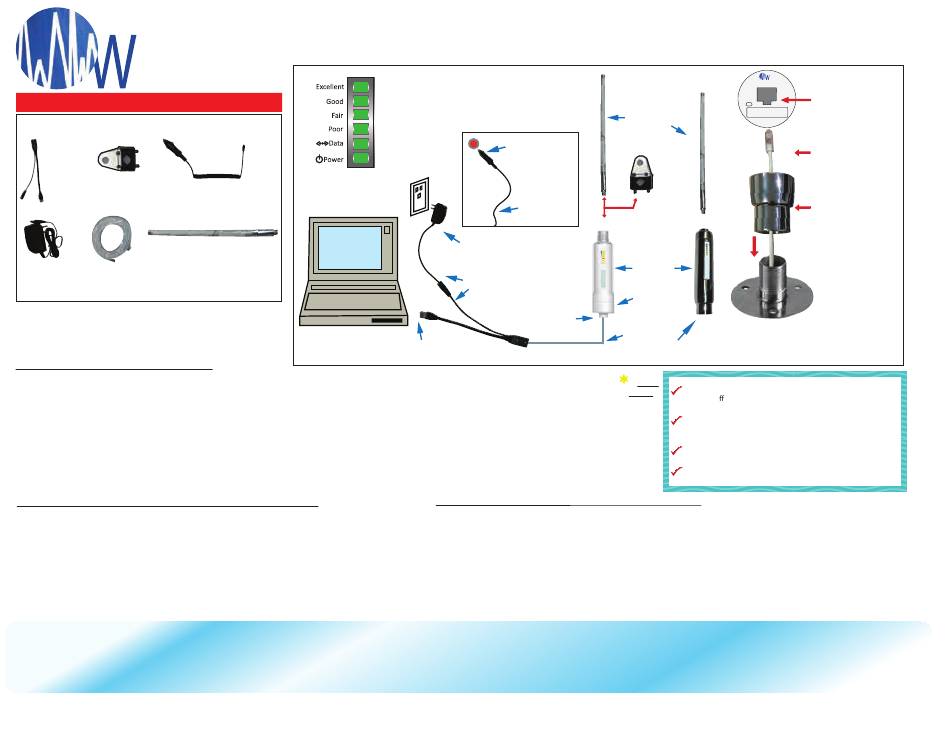

Light sequence for 2.4GHz Rogue Wave
& 2.4GHz Rogue Pro only.
Wall Socket
Laptop Computer
.
***
Ethernet end plugs into laptop or router.
Cigarette adapter (OPTIONAL)
Plug the cigarette
adapter into a
power source.
Plug the end of
the cigarette
adapter into the
POE input.
Rogue Wave
Power adapter plugs
into wall socket.
Plug the end of the wall
adapter into the input of
the POE
*Rubber grommet
provided*
Connec�ng wirelessly with Onboard Router:
1. Connect wirelessly to the router that the Rogue unit is physically connected
to via laptop, tablet or smartphone.
2. Open a browser and at the top URL bar type: 192.168.89.1
3. Once on the interface page of the unit, click on a network and type in a
password if needed.
4. The connec�on should read "(Three dots)..., Checking IP, Got Internet".
Page 1
AVE
WiFi
ROGUE
Antenna screws
RESET
12V - 1A M/N: WWR
POE
TE000000
onto the Rogue
FCC ID: 2ALM9WWR
unit.
Rogue Wave
mount.
Rogue Pro & Pro DB
Rogue Unit
Screw on
base.
CAT5e plugs into
*Mount not included*
ethernet base of
Rogue unit. And
ethernet end of POE.
Quick
Tips: Be sure when mounting the Rogue that it is between
15 - 25ft o the water.
Ensure that the cable run is no longer than 60ft. If you go
beyond 60ft the Rogue may not function correctly.
The Rogue must be mounted vertically with the antenna up.
Do not mount next to Radar.
Copyright Wave WIFI Inc., 2017. All rights reserved.
Ethernet port on the
base of the Rogue
unit.
(2nd) Plug the
ethernet cable into
the ethernet port of
the Rogue.
The Rogue Pro has a
screw on 1" - 14
thread base.
(1st) Detach the base
and screw it onto a
mount BEFORE
plugging in the
Ethernet cable.
