Seko PoolBasic EVO Manual

Before carrying out ANY work inside control panel of the Pool Basic Evo device, make sure you disconnect it
FAILURE TO COMPLY WITH THE INSTRUCTIONS CONTAINED IN THIS MANUAL COULD CAUSE INJURY TO
PEOPLE AND/OR DAMAGE TO THE APPLIANCE AND THE SYSTEM.
PACK CONTENTS
The pH probe is a product subject to wear and tear and is therefore not covered by the warranty.
Chemical products:
Recommended for lowering pH => negative pH (with a sulphuric acid base)
Recommended for raising pH => positive pH (sodium carbonate or bicarbonate)
ABSOLUTELY not recommended => pure sulphuric acid
Note: These products are DANGEROUS (I A) and require special precautions during use, handling and storage.
Pool Basic Evo was designed to regulate the pH of tanks up to 90 m
B
NEVER mix chemical products.
B
NEVER allow children or people who have not read this manual to use or tamper with Pool Basic Evo or any of
its peripheral components (including chemical products).
Dimensions (H – W – L)
Weight
Power supply 50 Hz
Consumption
Pump flow rate
Electrode regulation
Make sure that the injection pressure is below 1.5 bar.
0000136864

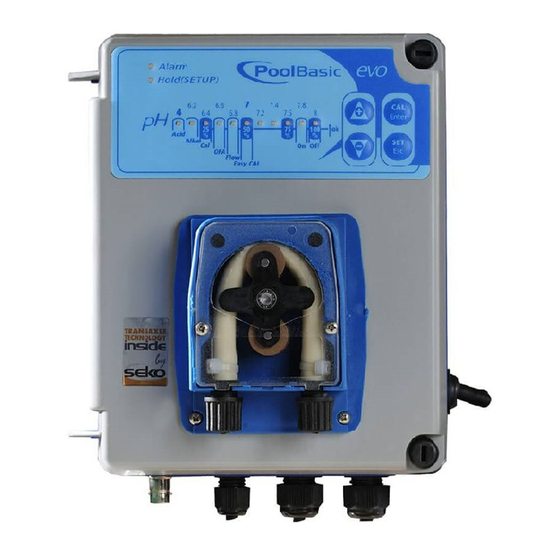

POOL BASIC evo
WARNINGS
!
IMPORTANT!
from the power supply.
A) "Pool Basic" pH control device (standard model)
B) PVC Cristal 4x6 suction hose (4 m)
C) Polyethylene delivery hose (5 m)
D) Attachment screw (φ=6 mm)
E) Foot filter (PVC riser)
F) FPM duckbill valve (3/8" GAS)
G) SPH-1 pH electrode
H) PSS3 probe-socket (1/2" GAS)
I) Tapping saddle for securing PSS3 onto 2" hose
(φ=50 mm)
L) pH 4, pH 7, H
M) Reducer for injection valve
TECHNICAL SPECIFICATIONS
234x162x108 mm
1 kg
230 VAC
7 W o 12,5 W
1,5 l/h; 5 l/h
Automatic
rev. 4.2
O buffer solution kit
2
3
.
Maximum back-pressure 1,5 bar
Pump state Pause - Supply
pH scale 6.2 pH – 8.0 pH
pH control range
Device precision +/- 0.02 pH
Wall Mounting Setup
0.0 pH – 14.0 pH
