Summary of Contents for FONESTAR FO-15CAT8E

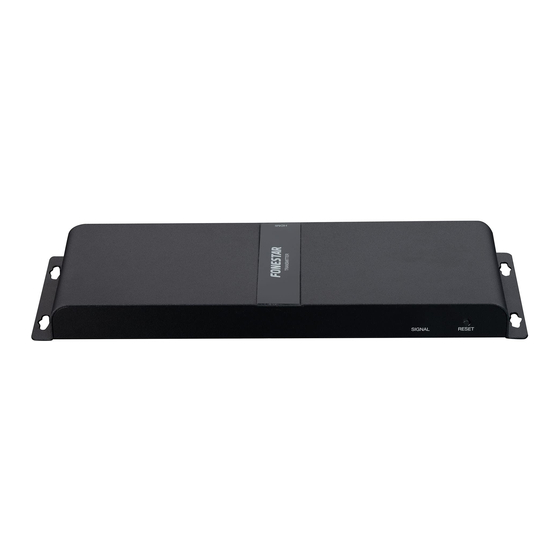

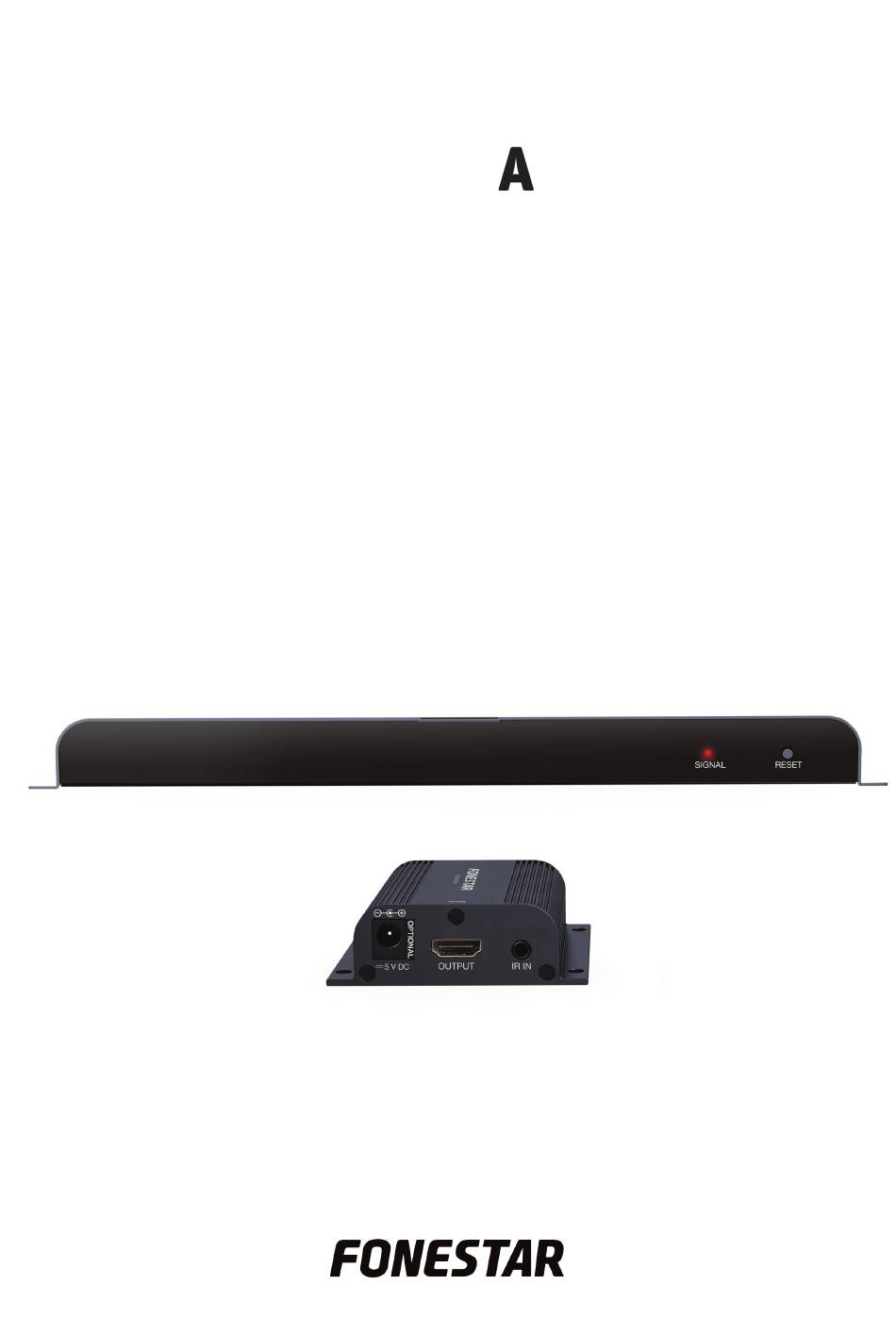

- Page 1 FO-15C T8E 1 x 8 HDMI SPLITTER EXTENDER OVER CAT 6 CABLE INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. - Page 4 DESCRIPTION - This HDMI splitter with extension function over Cat 6 cable increases the transmission distance of the HDMI signal up to 40 m for a 1080p resolution. The transmission over Cat 6 cable reduces the cost and makes it easier to pass the cables through tubes and walls. - Each splitter output operates with a receiver powered by the Cat 6 cable itself.
-
Page 5: Connection And Operating
- Then, connect the receivers required to the splitter OUTPUT using Cat 6 cable with a length of Cat 6 cable that does not exceed 40 metres. - Connect the receivers’ output to the TV moniors mediante cable HDMI. - Connect the transmitter to the power supply using the mains adapter provided. FO-15CAT8E HDMI HDMI FULL HD... -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS FO-15CAT8E CHARACTERISTICS 1 x 8 HDMI splitter extender over Cat 6 cable. Transmission distance up to 40 m for a resolution of 1080p with Cat 6 cable. HDMI loop output in transmitter for local TV. EDID function, automatically or manually selects optimum resolution in all TVs. -
Page 7: Warranty
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out. - Page 8 www.fonerstar.com...
