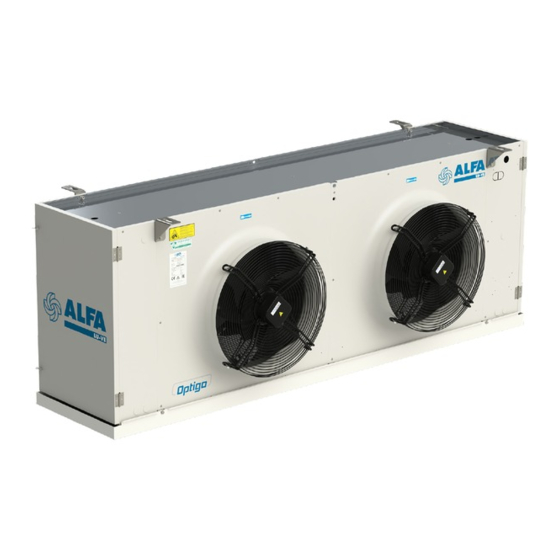

Optigo CC
Instruction manual
ORIGINAL INSTRUCTIONS
30368519EN-02
• Product description
• Product labels
• Unpacking & lifting
• Installation
• Maintenance
• Spare parts

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alfa LU-VE Optigo CC and is the answer not in the manual?

Questions and answers

Summary of Contents for LU-VE Alfa LU-VE Optigo CC

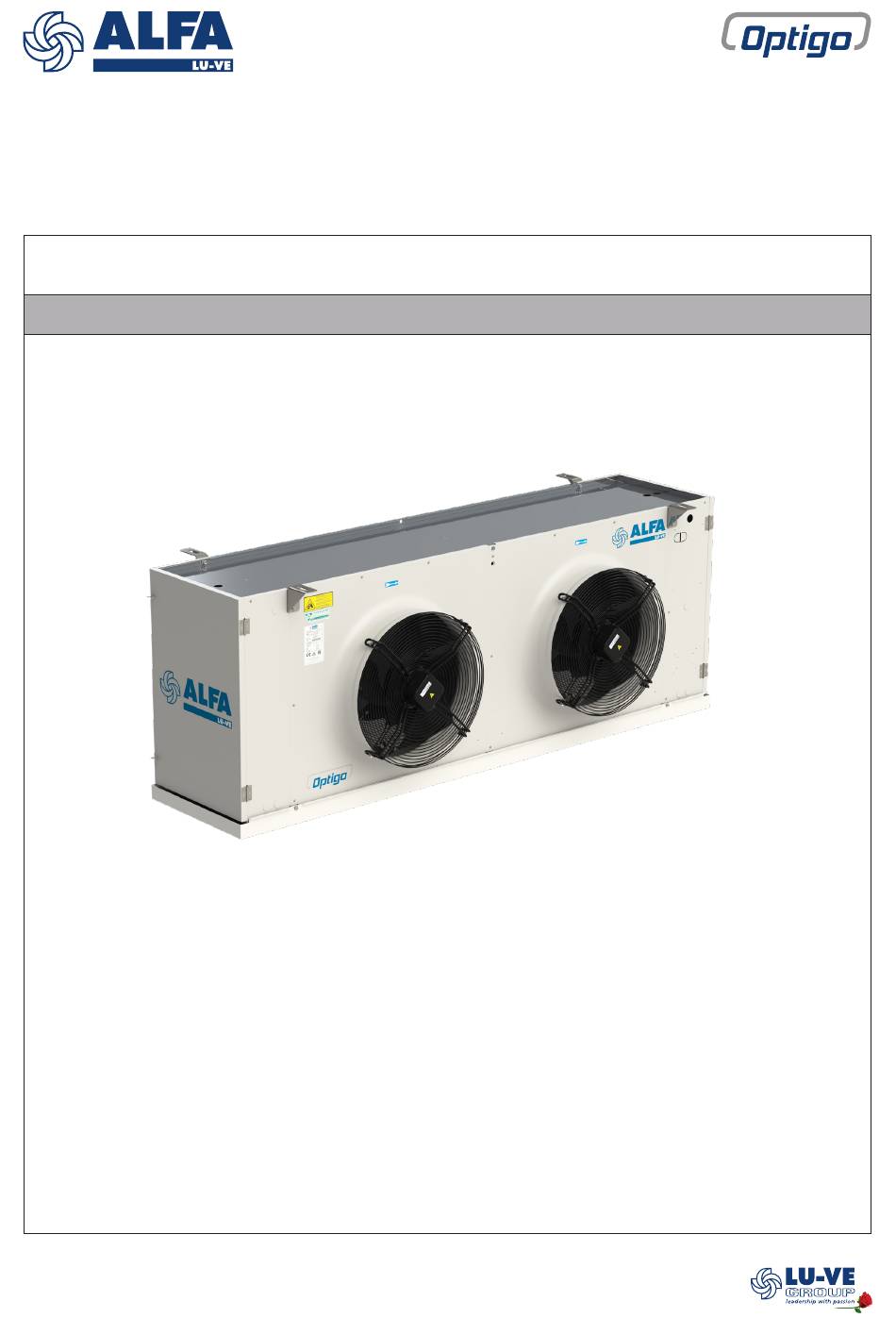

  • Page 1 Optigo CC Instruction manual • Product description • Product labels • Unpacking & lifting • Installation • Maintenance • Spare parts ORIGINAL INSTRUCTIONS 30368519EN-02...
  • Page 3: Table Of Contents

    Side covers..........................19 Coil heater elements replacement....................20 Driptray heater elements replacement ..................20 Bottom plate (CC500)....................... 21 Spare parts..........................22 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 4: Important Information

    Air Cooler Product Manual AHE00042. Both manuals must be carefully examined and instructions should be followed up at all times. Alfa LU-VE does not accept liability for any damage resulting from non-compliance to the instructions as given in the manuals and order-related docu- ments.
  • Page 5: Product Description

    Optigo CC251-403 models are delivered in wooden folding boxes, CC404-504 and CCB models in wooden crates. All packings suitable for safe stacking. 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 6: Options

    Fin material (AL=aluminium, EP=epoxy coated aluminium, CA=cataphoresis) Fin spacing (4, 5.5, 7, 10, 12 mm) Tube material (CU=copper) Options 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 7: Product Labels

    READ INSTRUCTION MANUAL BEFORE INSTALLATIONS OPERATIONS AND MAINTENANCE been pressure tested in TO AVOID INJURIES OR DAMAGE the factory 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 8 9. Moving parts Warning: moving parts. Switch off power supply before any mainte- nance or installation activities. 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 9: Unpacking And Lifting

    Unscrew the fixings from the bottom of the box and remove it. Remove the fixing screws from the lower support pallet. 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 10: Lifting

    The cooler is now ready to be lifted into mount- ing position. 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 11 After having fixed the cooler to the ceiling, place driptray on its hinges (CC400/500 only). Use supplied fixing materials to fasten the drip- tray. 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 12: Installation

    Detailed drawings showing all required mounting and refrigerant connection dimensions are available for download on alfa.luvegroup.com. Dimensional drawings 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 13: Mounting Bracket

    Respect the minimum space for defrost heater extraction and replacement. D ≥ L Refrigerant connections Never bend the air cooler refrigerant connection tubes. 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 14: Hotgas Connection (Optional)

    A syphon must be installed on the drain line, outside the cold room Tighten drain connection by hand only. 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 15: Electrical Connections

    Electrical connections Electrical connection diagrams are available for download on alfa.luvegroup.com. When in doubt always contact your local supplier or Alfa LU-VE representative for assistance. EC fan motors 1-phase (2-speed, CC250 only) Open the connection box. You will find the elec- tric wiring diagram inside.
  • Page 16 This resistance kit is located inside the connec- tion box (if selected) or inside each fan motor’s “black box”. 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 17: Electric Defrost Capacities

    2400 12000 16800 2400 4800 504B 2400 12000 16800 2400 4800 504C 2400 19200 24000 2400 4800 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 18 2400 12000 16800 2400 4800 504B 2400 12000 16800 2400 4800 504C 2400 19200 24000 2400 4800 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 19: Maintenance

    Hinged side covers can be opened for inspec- tion, cleaning and maintenance purposes. To open side covers, loosen fixing bolts. 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 20: Coil Heater Elements Replacement

    Mount new element in reverse order. Close drip tray and restore electrical connec- tions. Close side cover. Bend open clips 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 21: Bottom Plate (Cc500)

    Close the driptray and reconnect the drain line. 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group. Alfa LU-VE reserves the right to change specifications without prior notification.
  • Page 22: Spare Parts

    3 Fan ring heater kits (heaters, connection box & fixing materials) 4 Driptray 5 Air streamer (draw-through models only) Contact your local Alfa LU-VE representative for spare parts orders and assistance. 30368519EN-02 Alfa LU-VE is a trademark registered and owned by LU-VE Group.
