MOTION PRO FUEL INJECTOR CLEANING KIT
P/N 08-0592, 08-0593, 08-0594, 08-0595,
08-0615, 08-0639
Read all instructions and Warning at end of
instructions before attempting to use this tool!

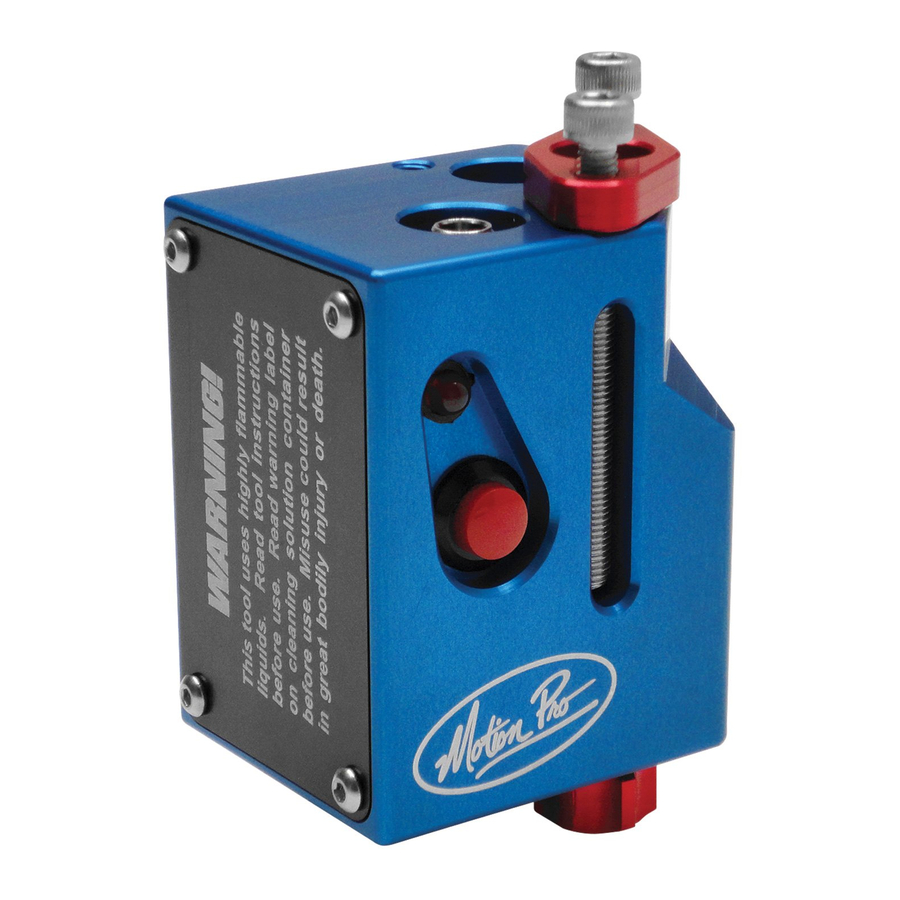

The Motion Pro Fuel Injector Cleaner is designed
to flush out and clean debris and deposits inside
the fuel injector. Because there are many differ-
ent styles and brands of injectors the instructions
below should be used as a guideline to illustrate
the intended use of this tool.

FLUSHING FUEL INJECTOR

Step 1:

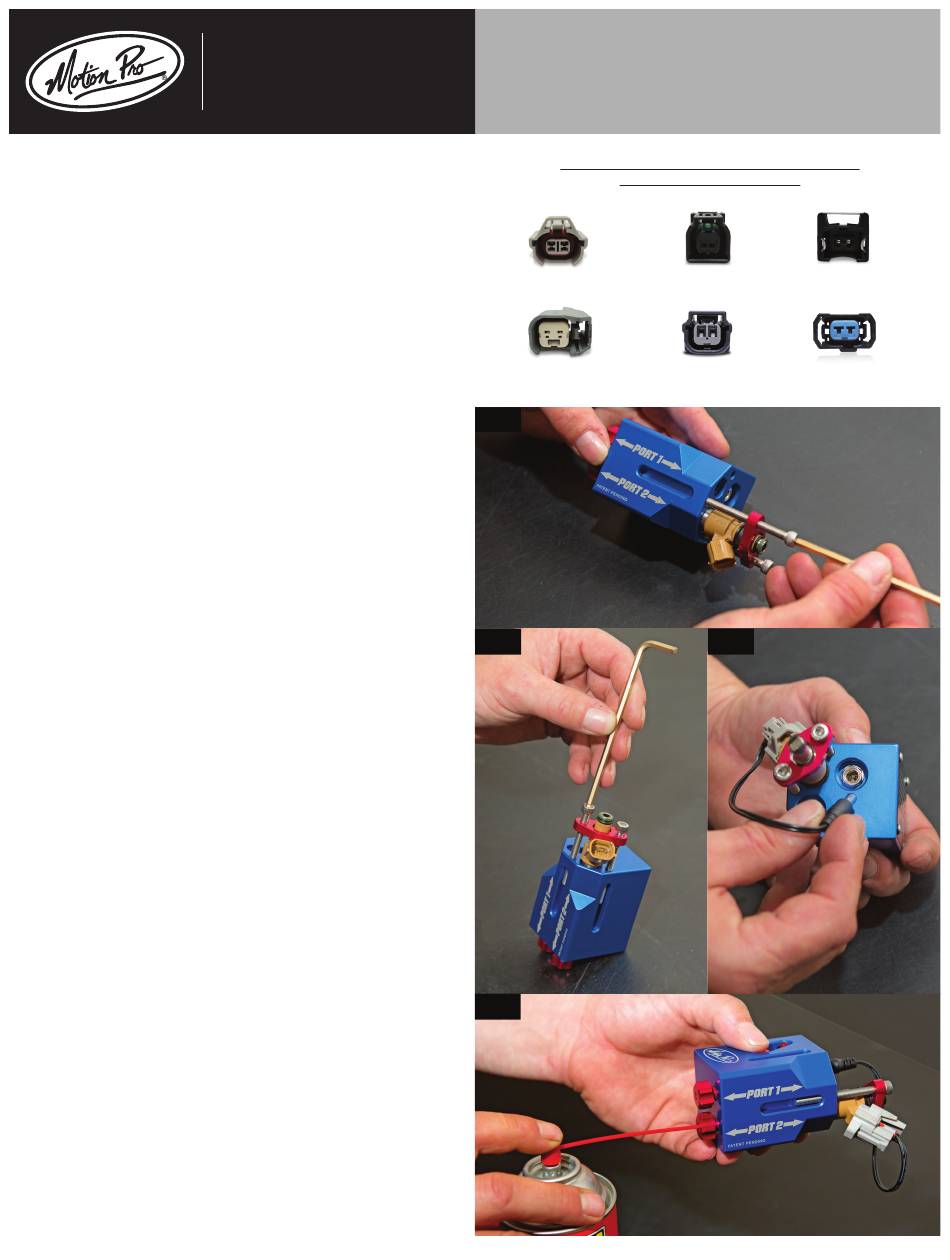

Insert the engine side of the injector into the tool as shown
in Fig 1. For this operation the injector will be inserted into
Port 2, however some style injectors may need to be
placed into Port 1.
Turn the electrical connector on the fuel injector toward the
outside of the tool as shown in Fig 2. Install the hold-down
clamp as shown in Fig 2, being careful not to damage the
O-rings. Carefully tighten screws sufficiently to compress
the lower seal on the injector. Warning: DO NOT OVER
TIGHTEN THE SCREWS or you will damage the injector!
Install the electrical connector to both the injector and
the tool with the appropriate pigtail for your injector
(Fig 3). You should hear a click when the red button
is pushed. This will open the solenoid inside the injector
and allow the cleaning fluid to pass through.
Loosen the red knob opposite the port that the injector
is set in. Insert the tube from the aerosol can of injector
cleaner or carb cleaner into the bottom of the tool as
shown in Fig 4. Tighten the red knob to lightly seal the
tube to the injector cleaner.
I08-0592
Motion Pro, Inc.
3171 Swetzer Rd.
Loomis, CA 95650
Tel: 650.594.9600 Fax: 650.594.9610
www.motionpro.com
INSTRUCTIONS
FI PIGTAIL CONNECTORS AVAILABLE FOR
PURCHASE SEPERATELY
P/N 08-0596
P/N 08-0599
FIG 1
FIG 2
FIG 4
1 of 2
P/N 08-0597 P/N 08-0598
P/N 08-0616 P/N 08-0637
FIG 3
