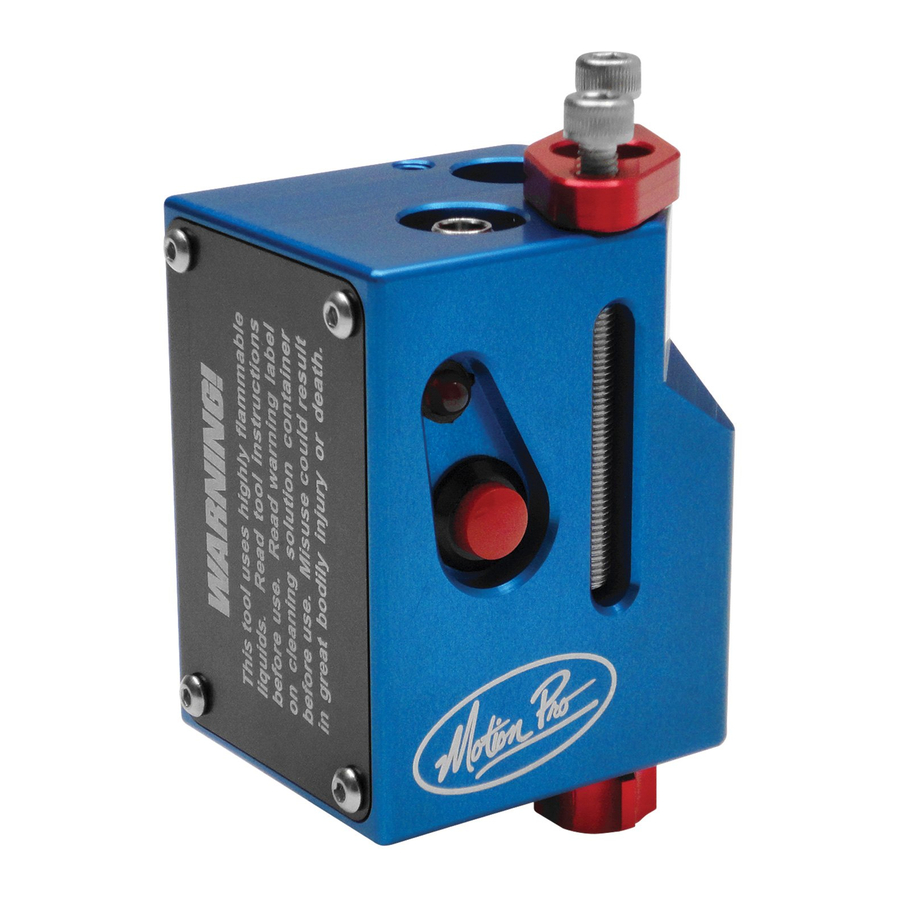

The Motion Pro Fuel Injector Cleaner is
designed to flush out and clean debris and
deposits inside the fuel injector. Because
there are many different styles and brands
of injectors the instructions below should be
used as a guideline to illustrate the intended
use of this tool.

FLUSHING FUEL INJECTOR

Step 1:

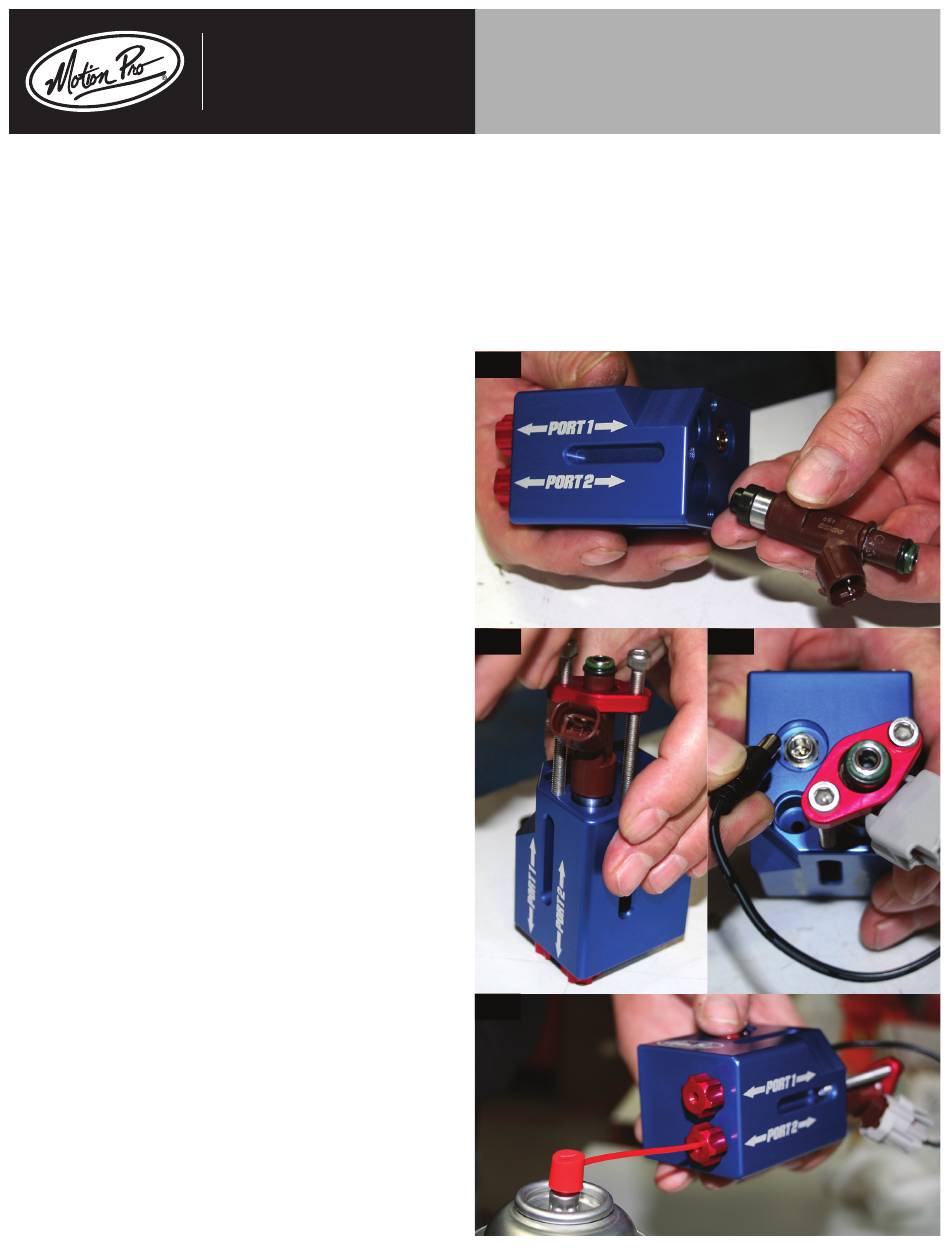

Insert the engine side of the injector into the tool as shown
in Fig 1. For this operation the injector will be inserted into
Port 2, however some style injectors may need to be
placed into Port 1.
Turn the electrical connector on the fuel
injector toward the outside of the tool as shown in Fig 2.
Install the hold-down clamp as shown in Fig 2, being
careful not to damage the O-rings. Carefully tighten
screws sufficiently to compress the lower seal on the
injector. Warning: DO NOT OVER TIGHTEN THE
SCREWS or you will damage the injector!
Install the electrical connector to both the injector and
the tool with the appropriate pigtail for your injector
(Fig 3). You should hear a click when the red button
is pushed. This will open the solenoid inside the injector
and allow the cleaning fluid to pass through.
Loosen the red nob opposite the port that the injector
is set in. Insert the tube from the aerosol can of injector
cleaner or carb cleaner into the bottom of the tool as
shown in Fig 4. Tighten the red knob to lightly seal the
tube to the injector cleaner.
I08-0592
Motion Pro, Inc.
867 American Street
San, Carlos, CA 94070
Tel: 650.594.9600 Fax: 650.594.9610
www.motionpro.com
Motion Pro Fuel Injector Cleaning Kit
P/N 08-0592, 08-0593, 08-0594 and 08-0595
Read all instructions and Warning at end of instructions
before attempting to use this tool!
INSTRUCTIONS
FIG 1
FIG 2
FIG 4
1 of 2
FIG 3
