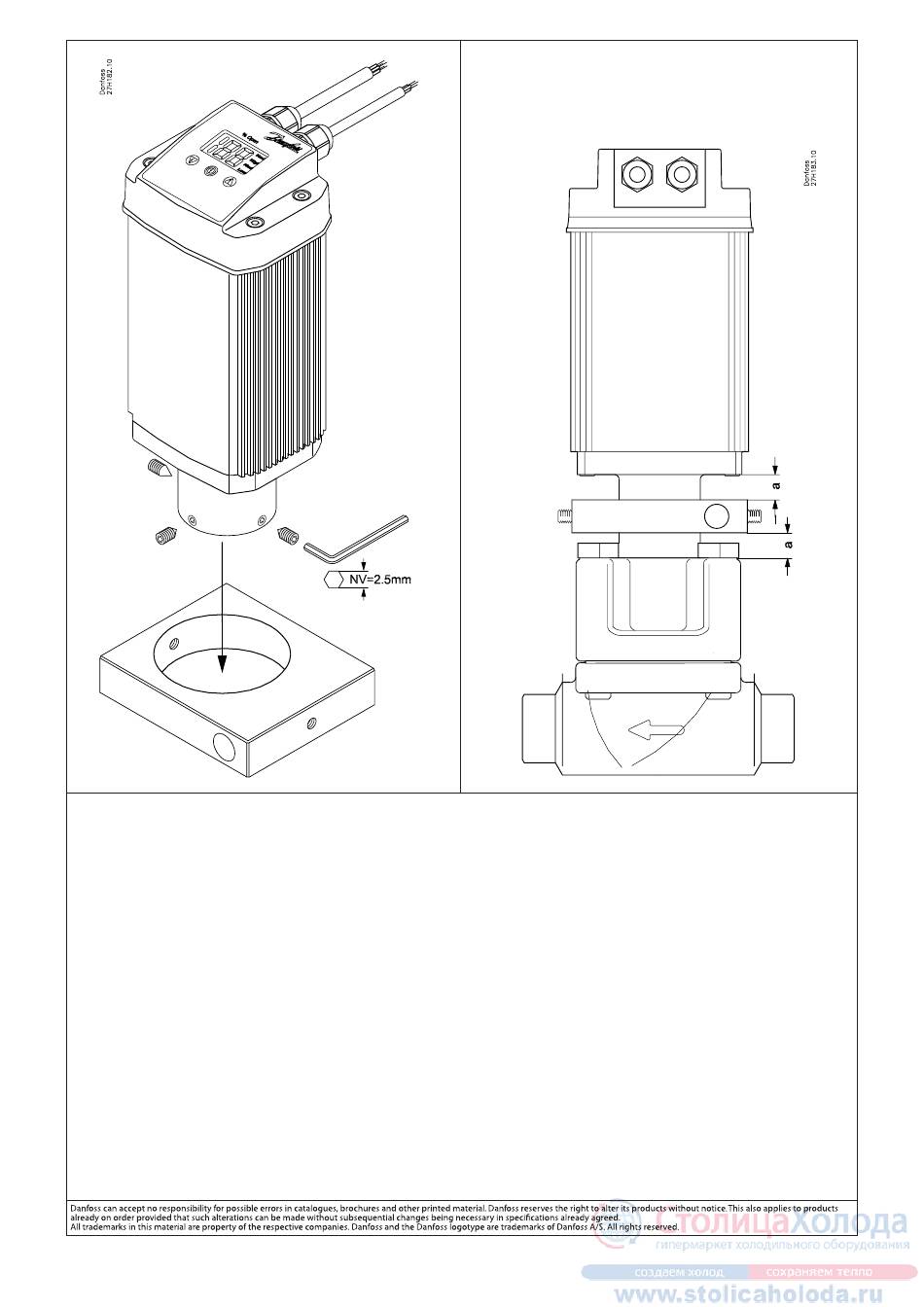

Fig. 2

Installation

Mechanical installation

General procedure for installing the Heat Cartridge Kit ICAD 600 /
ICAD 900 on all sizes of ICM valves:
Please Note:
The Heat Cartridge Kit ICAD 600 / ICAD 900 must be installed
before the ICAD 600/900 actuator is mounted on the ICM valve.
• Check that the three socket set screws on the ICAD actuator are
counter clockwise fully unscrewed and removed with a 2.5 mm
Hexagon key (see fig. 2).
• Check that the two socket set screws on the heat cartridge
holder are counter clockwise fully unscrewed with a 2.5 mm
Hexagon key (see fig. 1).
• Apply heat conductive compound to:
• t he heat cartridge (marked 1A in fig. 1)
• i nto both ends of the holes for heat cartridge,
on the heat cartridge holder (marked 1B in fig. 1)
• o n the inner surface of the heat cartridge holder (marked 1C
in fig. 1)
• Insert the heat cartridge into the smallest hole of the heat
cartridge holder (see fig. 1).
2
ICAD
2.5 mm Hexagon key
DKRCI.PI.HT0.E3.02 / 520H2195
Fig. 3
• Fasten the heat cartridge with the socket set screw using a
2.5 mm Hexagon key.
• Insert the ICAD into the hole of the heat cartridge holder. (fig. 2)
• Install the heat cartridge holder on the ICAD actuator. Position
the heat cartridge holder in a center position as shown in fig. 3
• Fasten the heat cartridge holder using a 2.5 mm Hexagon key.
• Reinstall the three socket set screws on the ICAD actuator.
• Please consult the ICAD instruction (DKRCI.PI.HV0.A) regarding
the mounting of ICAD actuators on ICM motor valves.

Electrical installation

Please Note:
Do not connect supply voltage before the heat cartridge is
inserted into the hole of the the heat cartridge holder - then
connect 24 V d.c/a.c
© Danfoss A/S (IR/MWA), 01-2010
