Summary of Contents for Haug 03.5080.000

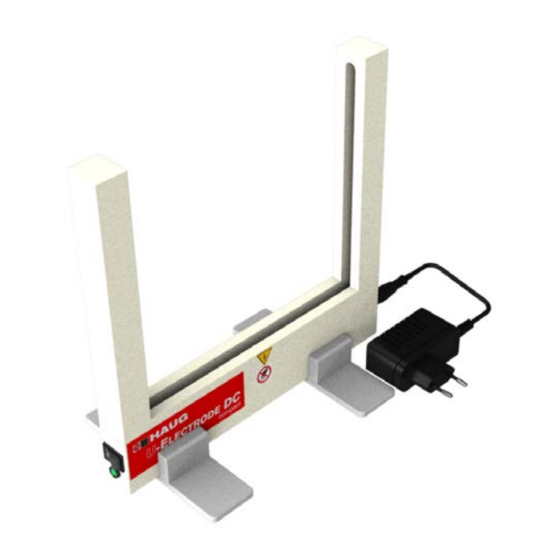

- Page 1 Operating instructions Ionizing unit U-Electrode DC compact Ident number: 03.5080.000 Keep for future use! DC Line...
-
Page 3: Table Of Contents
Table of contents Scope of delivery............4 Operator instructions ..........5 Symbols used in operating instructions ......5 Symbols on the ionizing unit ..........6 Safety ................7 Intended use ..............8 Product overview............9 Installing ..............10 Operation ..............12 Maintenance ............. 13 Cleaning interval .............. -
Page 4: Scope Of Delivery
1 wide-range plug-in power supply unit (12 V – 2 supporting feet – 4 silicon pads – 1 operating manual D-0398-GB If you find any discrepancy, please contact HAUG GmbH & Co. KG. The address is provided on the back of the envelope. -
Page 5: Operator Instructions
Operator instructions 2 Operator instructions Before installation and commissioning read these operating instruction in full. Always observe the safety instructions. These operating instruction is a part of the product; make sure you retain them for later use or subsequent owners. The product is an air-assisted ionization unit and will be referred to in this Operating Instruction only as “ionizing unit”. -
Page 6: Symbols On The Ionizing Unit
Operator instructions NOTE: Important notes and additional information. Never dispose of with household garbage. Do not touch! Caution! Device generates ozone! Caution, danger due to electrical current! 2.2 Symbols on the ionizing unit WARNING! High voltage WARNING! Ionisation unit is not safe to touch. Caution: high voltage! -
Page 7: Safety
Safety 3 Safety Only the persons authorized by the operator may carry out tasks on the ionizing unit. The installer must be a trained and qualified electrician and must have basic knowhow in the field of mechanical engineering. He must read the operating instructions in full. -
Page 8: Intended Use
• An expert study concerning ozone emissions from a ionization system is available from HAUG GmbH & Co. KG. 3.1 Intended use Risk of explosion! The ionizing unit may generate sparks which ignite gases, dust or similar substances. -
Page 9: Product Overview
Product overview 4 Product overview A On/off switch B Green function display LED C Supporting feet with silicon pads D Ionisation needles E Connection sockets for plug-in power supply unit... -
Page 10: Installing
1. Checking whether the ionizing unit corresponds to the ordering data. In the event of any damage to the ionizing unit, contact HAUG GmbH & Co. KG. 2. Install the ionisation unit at the workplace. • Attach the silicone pads to the supporting feet. - Page 11 Installing Damage to equipment and risk of fire! After installation, the ionizing pins must not be covered. This would prevent ionization from taking place at this point and electrical sparks could be generated. The ionizing unit would be damaged and fire could break out.
-
Page 12: Operation
Operation 6 Operation Risk of electric shock! The ionisation pins are under high voltage during operation. Touching them can cause a painful electric shock. This can trigger a shock reaction and lead to secondary accidents. • Never touch the ionisation pins during operation. Requirements: The ionisation unit is installed and connected according to the operating manual. -
Page 13: Maintenance
Maintenance 7 Maintenance Risk of damage to the device! Unsuitable brushes and improper cleaning agents can damage the ionisation unit. • We recommend our cleaning accessories. • Use a plastic fibre brush (hardness level: soft). • Use pharmaceutical ethanol. • Never use a high-pressure cleaner. •... -
Page 14: Dry Cleaning
Maintenance 7.2 Dry cleaning 1. Switch off the ionisation unit and secure it against unintentional switch-on. 2. Disconnect the ionisation unit from the socket. 3. Brush off the ionisation pins with a suitable brush. 4. Vacuum the ionisation unit or blow off with clean compressed air (max. -
Page 15: Troubleshooting
• Faults may only be eliminated by a trained and qualified electrician. NOTE: If the defect cannot be eliminated in this way, return the ionizing unit to HAUG GmbH & Co. KG for checking (see back cover for address). Fault Cause... -
Page 16: Accessories/Spare Parts
Accessories/spare parts 9 Accessories/spare parts Accessories and spare parts can be sourced from your authorized sales partner or directly from HAUG GmbH & Co. KG (the address is provided on the back of the envelope). Order Item Images number Special cleaning 10.7220.000... -
Page 17: Technical Data
Technical data 10 Technical data 10.1 Key figures and specifications Reference temperature 23 °C Plug-in power supply Input: 100 – 240 V Output: 12 V , 630 mA High voltage ±6.5 - 8 kV 10.2 Supply voltage Rated value Power consumption 12 V ±10 % = 2 W... -
Page 18: Housing And Dimensions
Technical data 10.4 Housing and dimensions Protection type IP 20 Protection class Mains connection Plug-in power supply 12 V Dimensions: Height 260 mm Width 260 mm Depth 30 mm Weight: 0.8 kg... -
Page 19: Shut Down
Shut down 11 Shut down Risk of electric shock! The ionisation unit is operated with electrical voltage and generates a high electrical voltage. Improper decommissioning can lead to electric shock. • Only a certified electrician shall be permitted to shut down the device. - Page 20 made by...
