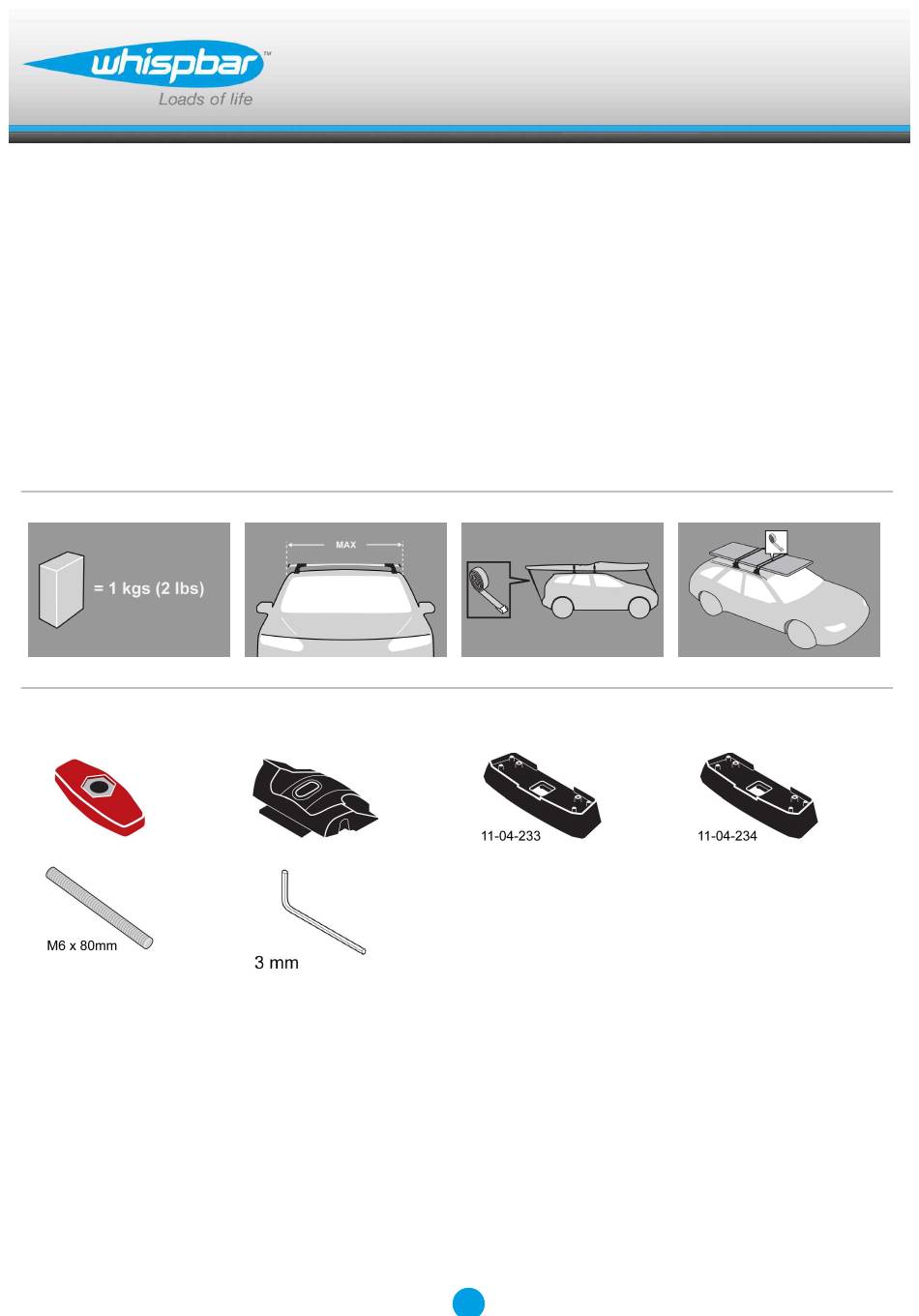

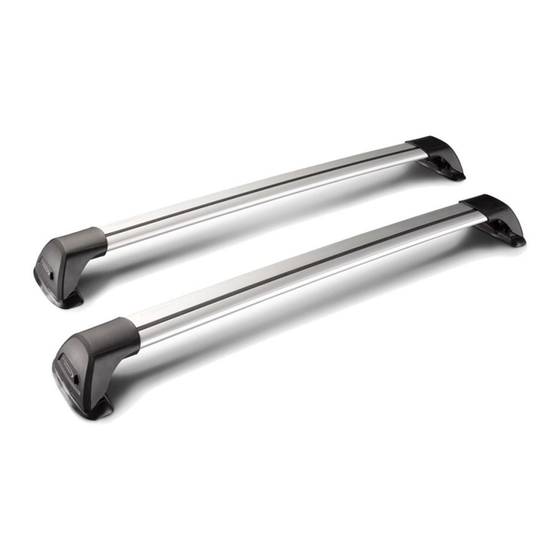

- Page 1 K571W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 2C...
- Page 2 Fitting Kit K571W MAX kgs (lbs) 1 Series E82, 2dr Coupe 07-+ 75 kgs (165 lbs) 75 kgs (165 lbs) 1 Series E82, 2dr Coupe 07-+ 75 kgs (165 lbs) 75 kgs (165 lbs) 1 Series E82, 2dr Coupe 07-+ 75 kgs (165 lbs) 75 kgs (165 lbs) 1 Series E82, 2dr Coupe 07-+...
-
Page 3: First Time Installation
Fitting Kit K571W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. These instructions show type A crossbar fitted. They also apply to type B, C and D. This kit fits type A, B, C and D. - Page 4 Fitting Kit K571W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Attaches to factory-fitted mounting points Please check the rear of this manual for information relating specifically to your vehicle.
- Page 5 Fitting Kit K571W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 6 Fitting Kit K571W Fitment Open or remove fixed-point covers. Select grubscrews and screw into the vehicle's fixed points. Do not over tighten. Repeat for all four positions. Refer to the underside of the pad for the part number.
- Page 7 Fitting Kit K571W It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 11-04-233 B = 11-04-234 Ensure the fixed-point covers sit vertically in the recess in the pads.
- Page 8 Fitting Kit K571W Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle.
- Page 9 Fitting Kit K571W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K571W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting... - Page 11 Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com www.whispbar.com.au www.whispbar.co.nz...
- Page 12 Fitting Kit K571W 1 Series, 2dr Coupe 07-+ (NZ) -470mm 270mm 825mm 815mm -18 -1/2ths" 10 5/8ths" 32 1/2ths" 32 1/16ths" 1 Series, 2dr Coupe 07-+ (AU) -470mm 270mm 825mm 815mm -18 -1/2ths" 10 5/8ths" 32 1/2ths" 32 1/16ths" 1 Series, 2dr Coupe 07-+ (ZA) -470mm 270mm 825mm...
- Page 13 Fitting Kit K571W 4 Series, 2dr Coupe 14-+ (NZ) -480mm 190mm 840mm 845mm -18 -7/8ths" 7 1/2ths" 33 1/16ths" 33 1/4ths" 4 Series, 2dr Coupe 14-+ (AU) -480mm 190mm 840mm 845mm -18 -7/8ths" 7 1/2ths" 33 1/16ths" 33 1/4ths" 4 Series, 2dr Coupe 14-+ (EU) -480mm 190mm 840mm...
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Fitting Kit K571W Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
