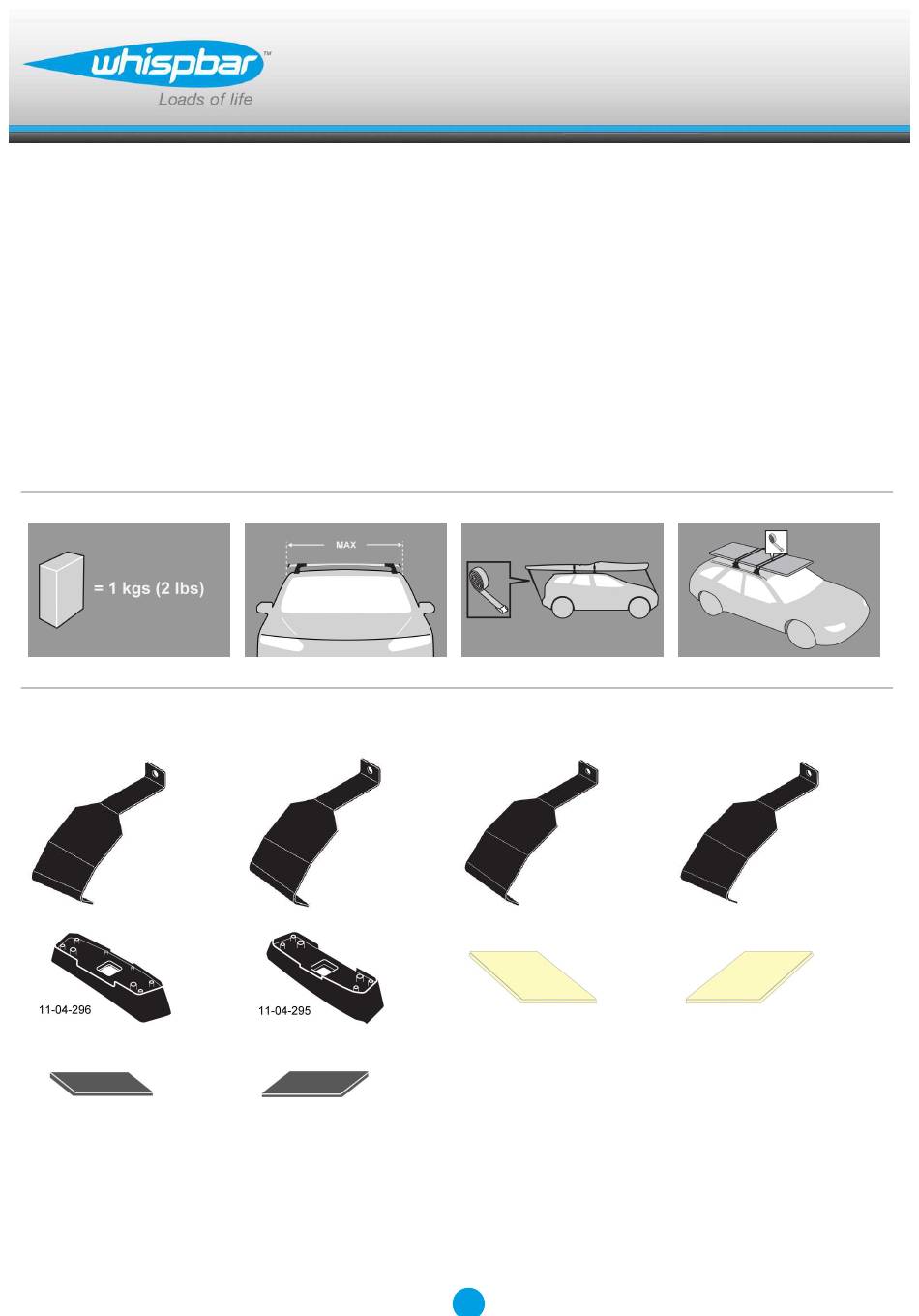

- Page 1 K691W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 1A...
- Page 2 Fitting Kit K691W MAX kgs (lbs) Ford Focus , 4dr Sedan 11-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Focus , 4dr Sedan 11-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Focus , 4dr Sedan 12-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Focus , 4dr Sedan Aug 11-+ 75 kgs (165 lbs)
-
Page 3: First Time Installation
Fitting Kit K691W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. NOTE: Clamp images in these instructions may not be representative of the clamps in this kit... - Page 4 Fitting Kit K691W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally.
- Page 5 Fitting Kit K691W Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Clamps directly to edge of roof under the doors Please check the rear of this manual for information relating specifically to your vehicle.
- Page 6 Fitting Kit K691W Place rubber pads (supplied with fitting kit) on the vehicle roof. Pad may vary in shape to that shown. Make sure the pad fits into the holes underneath the foot. Remove locking screw.
- Page 7 Fitting Kit K691W Apply protective strip as shown. Trim if required. A = Clear B = Grey It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 993A B = 994A...
- Page 8 Fitting Kit K691W Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Adjust the legs on the crossbar so that they are positioned equally from the ends of the crossbar, and the clamps engage firmly on the body work of the vehicle.
- Page 9 Fitting Kit K691W Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 10 Fitting Kit K691W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K691W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting... - Page 12 Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com www.whispbar.com.au www.whispbar.co.nz...
- Page 13 Fitting Kit K691W Focus, 4dr Sedan 11-+ (ZA) -220mm 530mm 880mm 840mm -8 -11/16ths" 20 7/8ths" 34 5/8ths" 33 1/16ths" Focus, 4dr Sedan 11-+ (EU) -220mm 530mm 880mm 840mm -8 -11/16ths" 20 7/8ths" 34 5/8ths" 33 1/16ths" Focus, 4dr Sedan 12-+ (US) -220mm 530mm 880mm...
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Fitting Kit K691W Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
