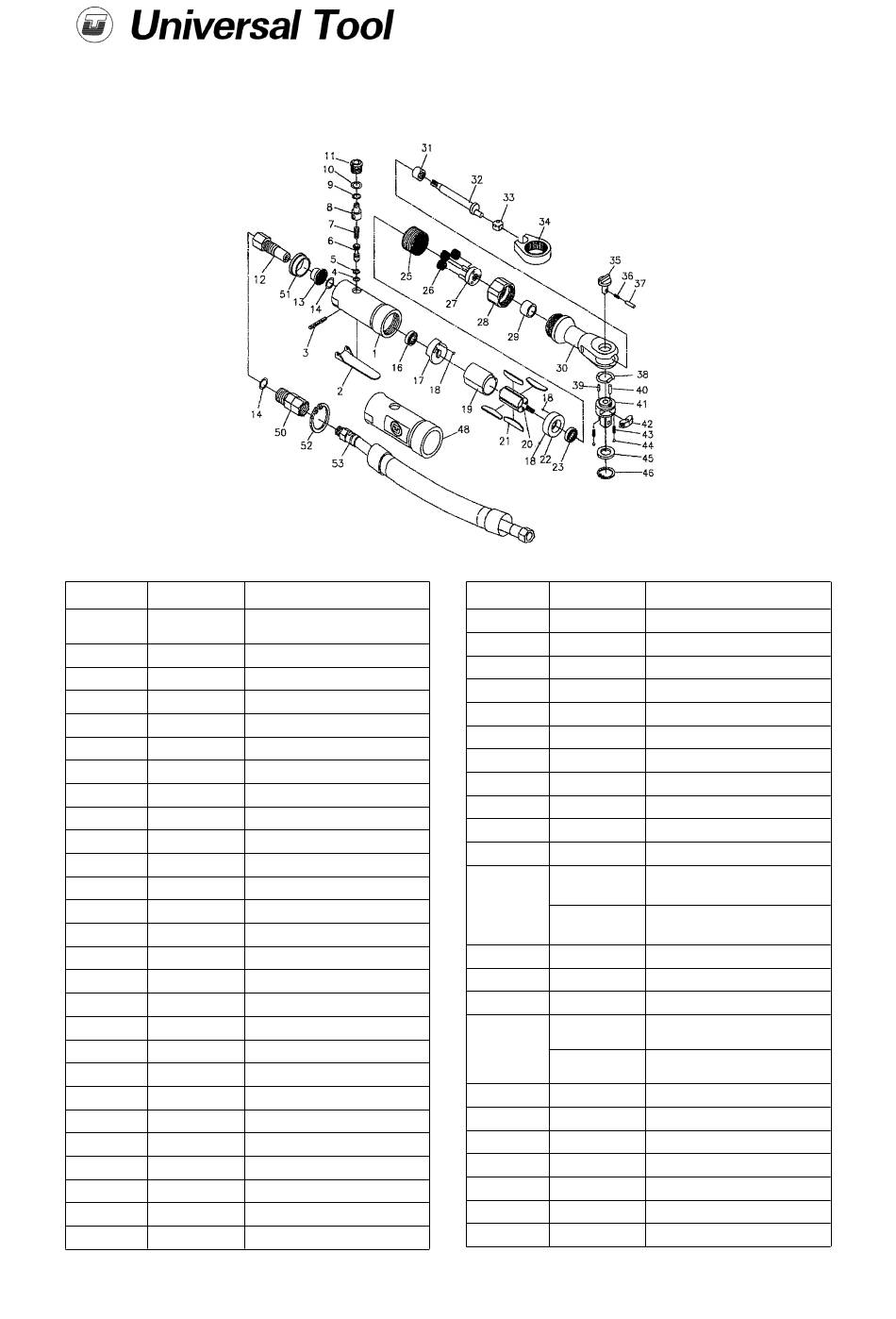

Universal Tool UT8002 Operator Instructions page 3

3/8 and 1/2 square drive ratchet wrenches

Advertisement

UT8002
UT8012
Ref No
Part No
1
RL60201P
2
RL80512C1
3
RL805132
4
RL80504
5
RL80505
6
RL80506
7
RL80507
8
RL13004
9
RL80509
10
RL80510
11
RL80511
12
RL602121B
13
RL80416
14
RL80515
16
RL80417
17
RL80418
18
RL80421
19
RL80422
20
RL60220
21
RL80420
22
RL60222
23
RL80524
25
RL60225
26
RL60226
27
RL60227
28
RL60228
29
RL60229
Oct 2003 Ver 1.0
3/8 SQ Drive Ratchet Wrench
1/2 SQ Drive Ratchet Wrench
Description
Motor Housing
w/ Bushing
Throttle Lever
Pin
O-Ring
O-Ring
Throttle Pin
Spring
Air Regulator
O-Ring
O-Ring
Valve Plug
Air Inlet
Muffler
O-Ring (2)
Ball Bearing
Rear End Plate
Steel Ball (3)
Cylinder
Rotor
Rotor Blade (4)
Front End Plate
Ball Bearing
Internal Gear
Planet Gear (3)
Planet Gear Carrier
Lock Ring
Bushing
Ref No
Part No
30
RL602301
31
RL60231
32
RL60232
33
RL60233
34
RL60234
35
RL60235
36
RL60236
37
RL60237
38
RL60238
39
RL60239
40
RL60240
RL60241
41
RL60341
42
RL60242
43
RL60243
44
RL60244
RL60245
45
RL60345
46
RL60246
48
RL60248V
50
RL804141BS
51
RL60251
52
RLCR101
53
RL602531
XL60203
Page No 3
Description
Ratchet Housing
Needle Bearing
Crank Shaft
Drive Bushing
Ratchet Yoke
Reverse Button
Spring
Lock Pin
Washer
Roll Pin
Pin
Ratchet Anvil
(3/8" Drive)
Ratchet Anvil
(1/2" Drive)
Ratchet Pawl
Spring (2)
Steel Ball (2)
Thrust Washer
(3/8" Drive)
Thrust Washer
(1/2" Drive)
Retaining Ring
Comfort Grip
Air Inlet
Connecting Ring
Retaining Ring
Air Hose Assembly
Nameplate
