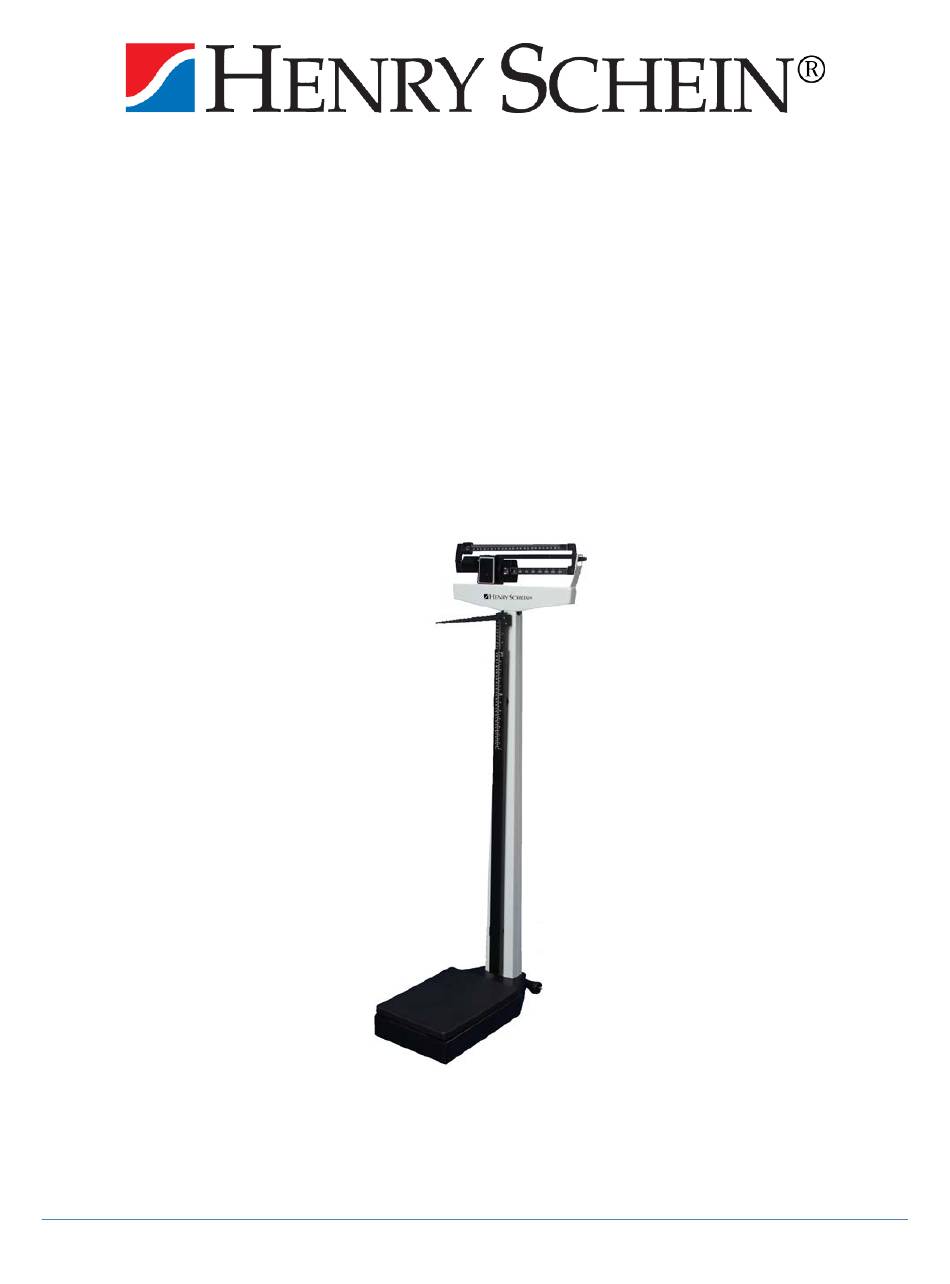

  • Page 1 112-7157 Mechanical Beam Scale with Height Rod...

  • Page 2: Table Of Contents

    Table of Contents Congratulations! ............................3 Safety ............................... 3 Before you start............................4 Unpacking ..............................4 Assembly Instructions ..........................5 Operation ..............................7 Zero Balance Adjustment ........................7 Weighing Instructions ..........................8 Height Measurements ........................... 9 Cleaning ..............................10 What do I do if...

  • Page 3: Congratulations

    Congratulations! The Henry Schein Mechanical Beam Scale you have purchased is a high-precision yet sturdy piece of equipment. In accordance with national regulations, the Henry Schein Mechanical Beam Scale provides a rugged mechanical design to measure patient weight and height. Each Henry Schein Mechanical Beam Scale is designed to provide accurate, reliable, and repeatable weight measurement.

  • Page 4: Before You Start

    Before you start... Unpacking Carefully remove and unwrap the scale from the shipping carton. To prevent scratching on any components of the scale, please do not use a box cutter or sharp object to open the inner packaging. If you notice any shipping damage to the product, please contact the shipper immediately.

  • Page 5: Assembly Instructions

    Assembly Instructions Step 1. Carefully remove the scale platform and pillar from the carton. Place the scale platform and pillar on a flat service. Using a table top can be helpful for assembly of the scale. Step 2. Remove the four pillar nuts and wrench from the carton Step 3.
  • Page 6 Step 10. While holding this position, hook the steel rod to the hold at the end of the lever extension. Step 11. Release the finger pull loop and ensure that the steel rod and lever extensions is hooked together. Installing the Wheel Bracket Step 12.

  • Page 7: Operation

    Operation Upper poise weight Upper poise bar Pointer Balance ball screw Lower poise bar Pillar Pillar head Zero Balance Adjustment The scale should be checked periodically, particularly when moved, by following the instructions below: Note: A flat head screwdriver is required. 1.

  • Page 8: Weighing Instructions

    Weighing Instructions 1. Set the large and small poises to indicate your approximate weight. 2. Step onto the scale. Move the small and large poise weights until the pointer is centered. NOTE: It is not necessary for you to wait for the pointer to stop moving in order to ready your weight.

  • Page 9: Height Measurements

    Height Measurements Note: A patient needs to be a minimum of 23 5/8” (600 mm) in height for the height to be accurately measured. 1. Raise the headpiece above the patient’s head. 2. Position the patient against the height rod 3.

  • Page 10: Cleaning

    Cleaning Clean all external surfaces with a clean damp cloth or tissue. Mild antimicrobial or antibacterial soap and water solution may be used. Dry with a clean soft cloth. Do not immerse the scale into cleaning or other liquid solutions. Do not use abrasive cleaners. Under no circumstances should abrasive or acid cleaners, white spirit, benzene or the like be used for cleaning.

  • Page 11: Maintenance

    To ensure that the scale accuracy is maintained, the product must be carefully set up and regularly maintained. Depending on the frequency of use, it is recommended to service the scale every 3 to 5 years by a qualified service lab. For any additional questions please contact Henry Schein Customer Service at 1-888-392-8492 for further information.

  • Page 12: Technical Support

    A claim under warranty will not be honored if the product is opened by persons not authorized by Henry Schein, Inc. Henry Schein scales' liability under this warranty is limited to the repair or replacement of the defective product and in no event be liable for consequential or indirect damages to equipment or personnel.
