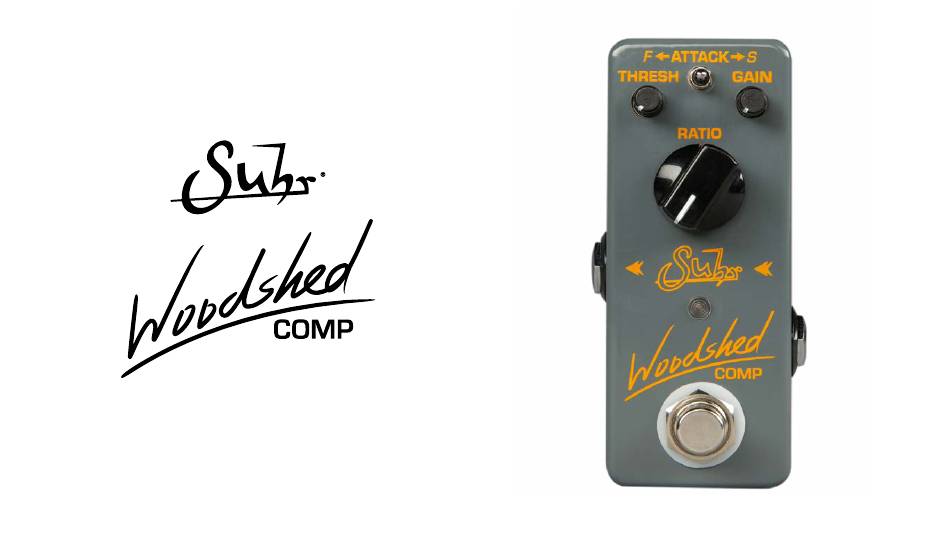

- Page 1 Andy Wood's User Guide...
-
Page 2: Table Of Contents
Table of Contents Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Front Panel Overview �... -
Page 3: Overview
Woodshed Comp Overview The Andy Wood Woodshed Compressor: The first pedal designed alongside one of our Suhr artists. Together, Kevin Suhr and Andy Wood have built a compressor that is the foundation of some of Andy’s favorite tones. As you know, Andy plays in multiple musical environments and this small compres- sor echoes his versatility. - Page 4 Woodshed Comp Overview (continued) The Suhr Andy Wood Woodshed Comp is set with a fast-attack speed and balanced compression that allows the guitar to sing, punch, and have that sustain. Andy wanted the control’s sweet spot to be in a specific place. In turn, you get a very sensitive range of the controls with a wide sweep, expanded ratio, threshold and gain range.
-

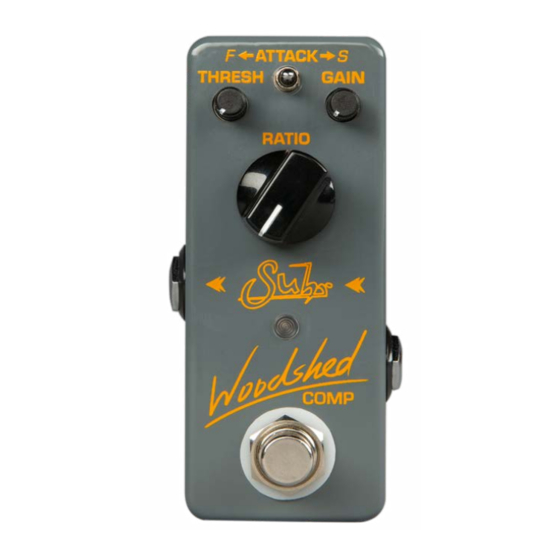

Page 5: Front Panel Overview
Power Input Attack Speed Switch Connect to any 9Vdc (center negative) power adapter� 3 settings to adjust your desired attack speed. Fast, Medium and Slow. (See page 7) Threshold knob Sets the level in which compression begins to occur. (See page 6) Gain Knob Adjusts output gain. -
Page 6: Controls (Threshold & Ratio Knob)
Woodshed Comp Controls This guide will show you how to get the most out of you Woodshed comp and give you an explanation of each control and how they work together. Threshold Knob: The Threshold Knob sets the level at which the compression starts to take effect. -
Page 7: Controls (Attack Speed Switch & Gain Knob)
Woodshed Comp Controls (continued) Attack Speed Switch: Instead of having a knob to adjust the Attack Speed, Andy wanted to simplify the choices. "On most compressors I use, the attack speed knob will stay in one of three positions, Fast, Medium or Slow attack speed. So we made it an easy switch."... -
Page 8: Quick Start Guide
Quick Start Guide Steps: 1. Plug-in 9vdc pedal power adapter. (Quick Start Settings) 2. Connect your guitar to the Input of the Woodshed Comp via a 1/4" cable. 3� Connect the Output of the Woodshed Comp to your amplifier's input. 4. -
Page 9: Technical Specifications
Our international distributors are set up to handle warranty issues in their respective countries. If you do not have an authorized Suhr dealer in your country, please contact us direct for further details�... - Page 10 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de- signed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
