Summary of Contents for Suhr Eclipse

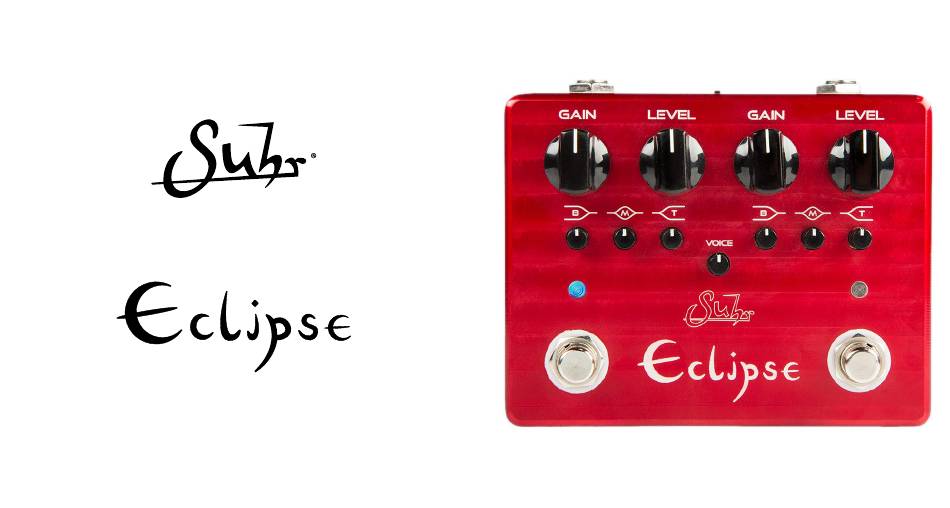

- Page 1 User Guide...
-
Page 2: Table Of Contents
Table of Contents Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Getting Connected �... -
Page 3: Overview

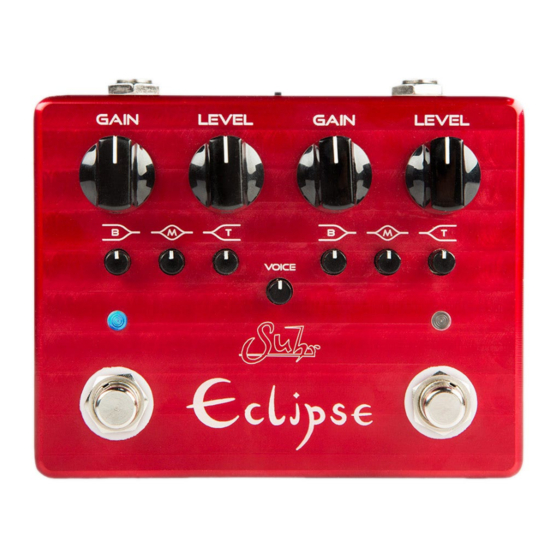

Thank you for purchasing the Suhr Eclipse Dual Overdrive/Distortion™ Pedal. Please take the time to read this manual to get the most out of the Eclipse. The more you familiarize yourself with the features of this pedal, the more you will enjoy its benefits and maximize its potential. -
Page 4: Getting Connected
Input: Plug the cable from your guitar into here, or from the previous effect’s output� DC Input: Eclipse accepts power from power supplies in the range of 9 to 18 Vdc (center negative) See Technical Specifications on pg 10. Eclipse can also be powered internally from a 9V battery as described below�... -
Page 5: Channel Selection / Bypass
• Switching from one channel to another will automatically turn off the previ- ous channel� • When no channel is selected, Eclipse is in True Bypass (INPUT jack is con- nected directly to OUTPUT jack via Relay) -
Page 6: Controls
Gain: Adjusts the amount of gain added to your tone, taking you from tube- like classic crunch and overdriven tones to high gain/distortion territory� Level: Adjusts the output volume of the pedal� Eclipse provides enough vol- ume to push the front end of any tube amp into natural overdrive�... -
Page 7: Battery Monitor
(4�5V), the LEDs will flash 3 times to alert the user� Normal operation will then resume� Should the battery fail completely (<4V), Eclipse will switch to true bypass mode and the LEDs will begin to flash� This will en- sure that the signal continues uninterrupted and undistorted�... -
Page 8: Fx Link (External Control)
FX Link (External Control) Eclipse contains an 1/8” stereo TRS input jack called FX LINK that allows the pedal to be controlled by an effects switching system with TRS control output jacks, such as the BOSS ES-8 or ES-5� A connection between the Tip and Sleeve controls Channel 2’s ON/OFF state�... -
Page 9: Sample Settings
Sample Settings With these sample settings, dial in the Voice knob to suit your amplifier� Classic Crunch (Rhythm CH1, Lead CH2) Hard Rock (Rhythm CH1, Lead CH2) Metal (Rhythm CH1, Lead CH2) Boost (Front End Boost CH1, Front End Mid Boost CH2) -
Page 10: Technical Specifications
Our international distributors are set up to handle warranty issues in their respective countries� If you do not have an authorized Suhr dealer in your country, please contact us direct for further details�... - Page 11 NOTE: This product has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications.
