Inline Extraction Fan Kits - 150mm Std Profi le
To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference.
SPECIFICATIONS
Max.
Duct
Fan Type
Fan Watts
(mm)
(W)
150
EC Axial
18
Compliance:
AS/NZS60335-2.80:2016
DIMENSIONS
A
B
C
200
143
170
Note: Grille cut-out size is a nominal diameter for a circular cut-out.
TECHNICAL
Supply
220-240V AC, 50Hz
Die cast aluminium
FAN TIMER SELECTION
Please use the FAN2444 fan timer model shown
enquiry@manrose.co.nz | www.manrose.co.nz
Thank you for purchasing this quality 150mm inline extraction fan kit.
When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fi re, electrical shock and personal injury.
Max.
Fan Pressure
(PA)
91
D
185
Motor Housing
Impeller & Outer Rotor
PBT plastic
Specifi cations are subject to change without notice
Description
Standard Switching
Timer

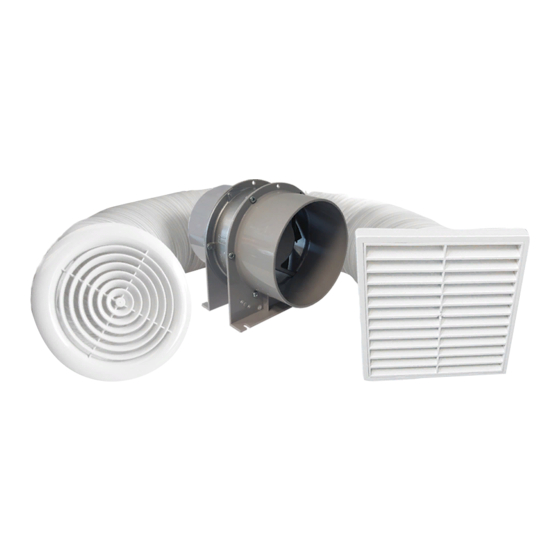

This Manrose inline extraction fan kit is designed for ventilation within a shower
cubicle. The high performance fan provides high levels of extraction and enables
additional ducting to be added to this system.
Free Air Fan Performance
Fan Power
3
(l/s)
(m
/hr)
105
380
A
Ducting
5m Flexible PVC
Do not use old model FAN2444 (with resistor) or FAN0372 fan timers
Specific
Interior Grille
(W/l/s)
0.17
Round White
C
B
Order Code
FAN0101
FAN0102
Exterior Grille
Fixed Louvre White
D
Page 1
Distributed by Simx Limited
