SImx MANROSE ID230 Series Installation Instructions

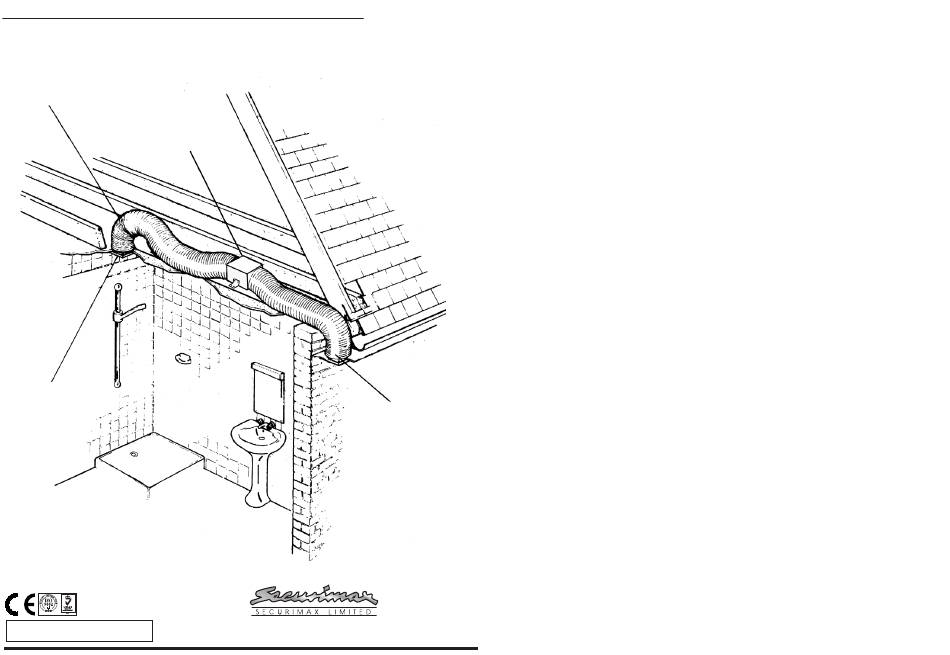

Example of a ID230 fan installation in a bathroom.
Flexible Ducting
Shower Fan
Internal
Grille
*
We recommend hanging the fan
from a joist where possible.
*
Manrose Manufacturing Ltd reserve the right
to change specification without prior warning
PUB0177 iss:03 10/08
*
External
Grille
PO Box 14 347 Panmure, Auckland, NZ.
Technical Support Telephone (09) 259 1662 Facsimile: (09) 259 1661
Email: sales@securimax.co.nz Website: www.securimax.co.nz
INSTALLATION INSTRUCTIONS FOR
THE ID230 FAN.
NOTE:(i) Do not install the unit within a shower cubicle or anywhere
else where there is a high risk of the fan being sprayed with
water.
(ii) Switch off mains supply before making electrical connections
If in any doubt contact a qualified electrician.
(iii) This fan is double insulated and does not require an earth.
1. Fit suitable ducting flush to the plaster on grilles.
2. Remove the cover from the fan by removing the two small
screw caps on the front cover and remove the two retaining
Philips screws
3. Bring power cable into position, as marked. Allow an extra
350mm protruding to facilitate connection. Fan should only be
installed by fixed wiring, a flexible cord should not be used.
4. When installing the external grille first take the grille insert out
using a flat screwdriver and then drill 4 holes in the corners, mark
screw holes on the wall, and fix external grille.
IMPORTANT
• Isolate the main supply before making any electrical connections
This system should be installed by a qualified electrician.
• When fitting through an external wall, an external grille must be
fitted at all times.
• Fan should only be installed by fixed wiring, a flexible cord
should not be used.
• The appliance is not intended for use by young children or
infirm persons without supervision.
• Young children should be supervised to ensure that they do not
play with the appliance.
