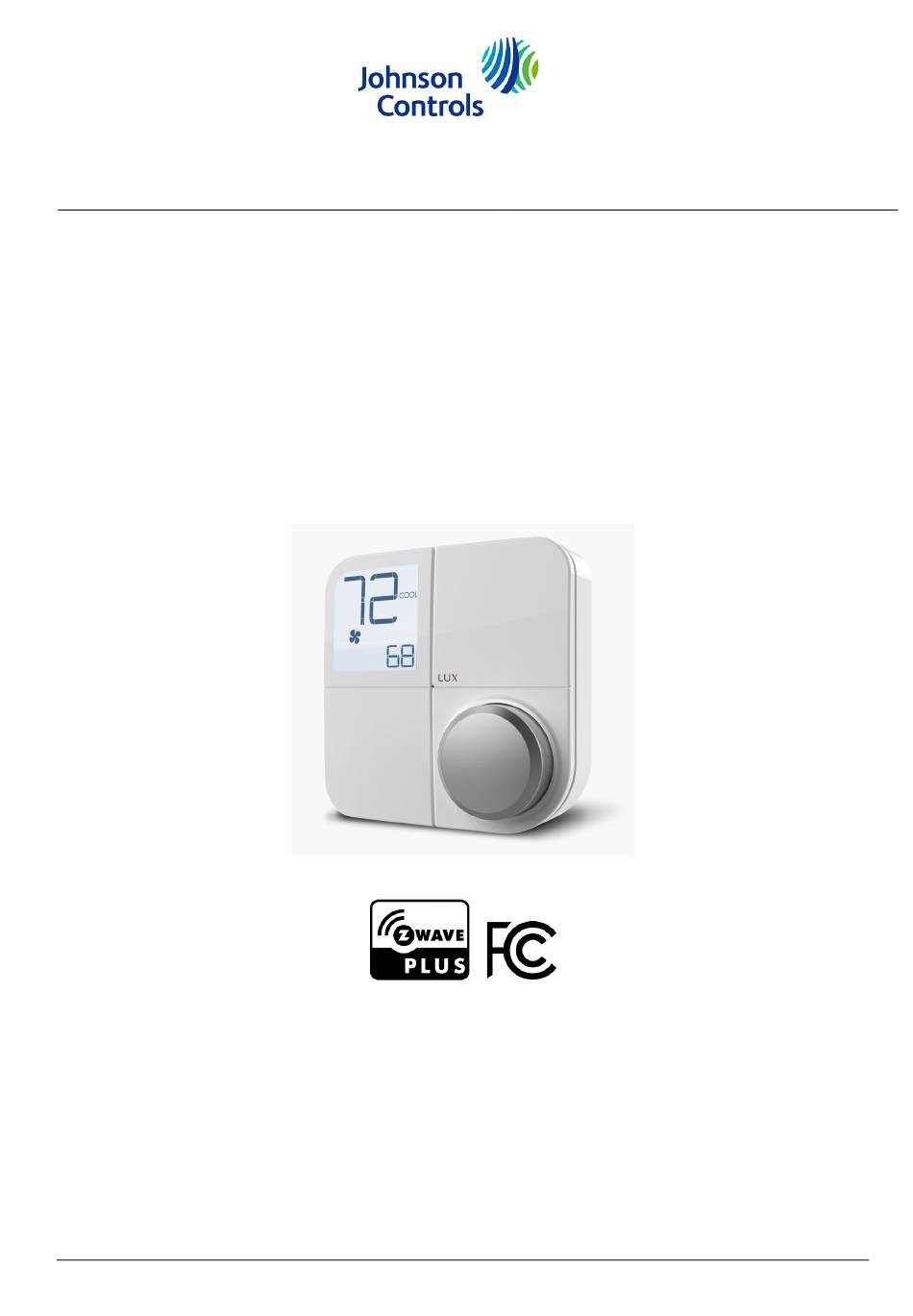

- Page 1 Operation Guideline Product Model: KONOzw KONOzw (KN-ZW-WH1-B04) Operation Guideline (Rev 1.7) Copyright Johnson Controls Inc 2019 All Rights Reserved Page 1 of 19...
-
Page 2: Table Of Contents
ESET 10.1 Factory Reset ..............................16 10.2 Hardware Reset ..............................16 ............................17 ROUBLESHOOTING ....................... 17 ANUFACTURER ONTACT NFORMATION ..........................19 ISPOSAL NSTRUCTIONS ..........................19 ARNING NFORMATION Copyright Johnson Controls Inc 2019 All Rights Reserved Page 2 of 19... -
Page 3: Models
TEMS EEDED FOR NSTALLATION • Phillips Screwdrivers Wire stripper/cutter • • A Z-Wave Hub / Gateway to operate with KONOzw PECIFICATIONS AND OMPLIANCE • Operating Voltage: 24VAC Battery Type: 4 AA premium brand Alkaline • • Operating Temperature: +14F to 122F (+10C to 50C) Operating Humidity: 20% to 80% (non-condensing) •... -
Page 4: Connecting Power /Inserting Batteries
• C-terminal Separate KONOzw from its base. Pull the wires from your wall through the center hole of the KONOzw base. Secure the base to the wall using the include mounting hardware. After wiring, secure KONOzw front onto base. Once KONOzw front has been secured to base (line up and firmly push), return power to system. -
Page 5: System Inclusion / Exclusion
Turn off the radio • The device will begin the adding process – you will see this screen: Step 1: Device prepares to add to the hub: Copyright Johnson Controls Inc 2019 All Rights Reserved Page 5 of 19... - Page 6 If the inclusion process is not successful, then the HOME screen will display ER:02 to indicate the error. Press and hold the knob for over 5 seconds to return to the inclusion/exclusion menu and retry the inclusion. Copyright Johnson Controls Inc 2019 All Rights Reserved Page 6 of 19...
-
Page 7: Steps Of Removing Device (Device Exclusion)
Step 1: Device prepares to be removed from the hub: Step 2: At the hub portal, click “Remove device”. Step 3: Device is removed from the hub successfully. Copyright Johnson Controls Inc 2019 All Rights Reserved Page 7 of 19... -
Page 8: Error Code And Description
Maximum Nodes Description Z-Wave Plus Lifeline Association NodeID KONOzw is associated with the Zwave controller/hub in the network. The following events will trigger a notification(report) from KONOzw to controller. Event Report Device Reset Locally Device Reset Locally Notification Thermostat Mode Report... - Page 9 KONOzw supports the Comfort mode (Hold mode) and Energy-Saving mode (Away mode). The Energy-saving mode sets the heat temperature at 62F and the cool temperature at 83F. To activate the Energy-saving mode, the hub should send a “BASIC_SET 0x00” to KONOzw and an icon of “AWAY” is then shown on the LCD.
- Page 10 Thermostat Setpoint* Transport Service Version* Z-Wave Plus Info Note: The command classes with “*” will be supported securely when the device is bootstrapped with a security key. Copyright Johnson Controls Inc 2019 All Rights Reserved Page 10 of 19...
- Page 11 (10C) range is dependent on the heat set point limit Temperature Minimum Setpoint 100 to 250, stepsize in a step of 0.1C Deadband = 10 (0xC8) reserved Copyright Johnson Controls Inc 2019 All Rights Reserved Page 11 of 19...
-
Page 12: Ota Firmware Upgrade
- Thermostat Fan mode - Thermostat Setpoint OTA Firmware Upgrade KONOzw complies with the Z-wave standard to perform the OTA firmware upgrade on the Host Processor. User can follow the steps below to activate and verify the OTA upgrade process. Step 1. -
Page 13: Installation
Secure KONOzw base to wall (mounting hardware and optional wall plate included) • Referencing your wiring photo, attach your thermostat wires to the KONOzw using your original wiring letters and the following terminal reference as a guide based upon your system type. -
Page 14: Configure System And Display Settings
KONOzw will guide you through setup. Rotate the knob to navigate through options and values. To make a selection, press the knob once. To go back, press and hold the knob for 3 seconds. KONOzw will prompt you to select: Available system modes (heating, cooling, both, automatic) •... - Page 15 = Heat Only) 90 days 120 days 180 days 365 days Compressor protection NO: no action bypass Yes: suspends minimum off time for next 10 mins Ex-Factory Reset Copyright Johnson Controls Inc 2019 All Rights Reserved Page 15 of 19...
-
Page 16: Keypad Lock
10.2 Hardware Reset 1. To reboot the device, remove the KONOzw front from the base. Locate the reset button directly above the battery compartment, then press and hold for 3 seconds to reboot. Alternatively, remove the power or battery completely and then power the device again activate the hard reset. -
Page 17: Troubleshooting
IMPORTANT: KONOzw will act as a listening device if it is included in the Z-Wave network while on 24VAC system power, and it will act as a listening sleeping slave if it is included on battery power. DO NOT power the device by battery only if it is previously included while on system power, otherwise it will shorten the battery life. - Page 18 Operation Guideline Product Model: KONOzw Copyright Johnson Controls Inc 2019 All Rights Reserved Page 18 of 19...
-
Page 19: Disposal
Product Model: KONOzw 14. D ISPOSAL NSTRUCTIONS Johnson Controls is committed to responsible environmental stewardship. Please dispose of this product in accordance with local laws and regulations in your area. Contact your local waste disposal authorities or consult www.e-cyclingcentral.com to find an electronics recycling center near you.
