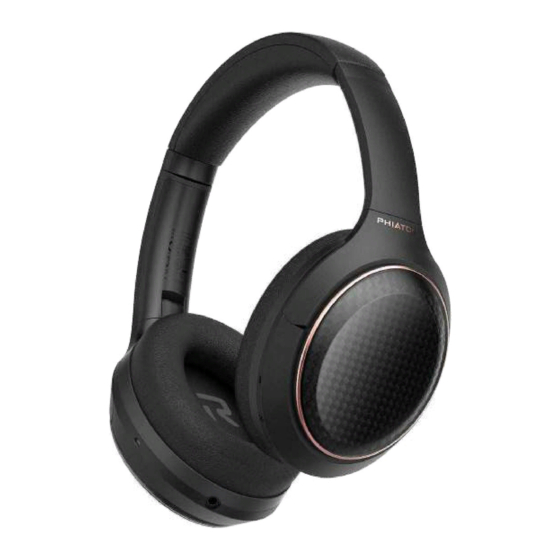

Phiaton 900 LEGACY Owner's Manual
  1. Manuals
  2. Brands
  3. Phiaton Manuals
  4. Wireless Headphones
  5. 900 LEGACY
  6. Owner's manual

Phiaton 900 LEGACY Owner's Manual

Hide thumbs Also See for 900 LEGACY:
Table of Contents

Advertisement

Quick Links

OWNER'S GUIDE
900 LEGACY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 900 LEGACY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Phiaton 900 LEGACY

Summary of Contents for Phiaton 900 LEGACY

  • Page 1 OWNER'S GUIDE 900 LEGACY...

  • Page 2: Table Of Contents

    - Please follow the directions and read the guidelines carefully before use. - Please keep the owner’s guide for future reference. - Some functions of the 900 LEGACY may not be available when it is paired with certain devices. - The specifications are subject to change without prior notice for quality improvement.

  • Page 3: Safety And General Information

    10) When cleaning the device, use a clean dry cloth to wipe the device clean. (Do not use solvents.) 11) When the product is not being used, please keep it in the Protective Case. 12) Replacement ear pads can be purchased from Phiaton Customer Service. Email us at SUPPORT@PHIATON.COM 13) Using the device while walking or driving may prevent user from hearing important sounds such as signals or alarms and may impose hazardous conditions on yourself or others.

  • Page 4: Components & Features

    2. COMPONENTS & FEATURES 1) Contents - 900 LEGACY - USB-A TO USB-C Charging cable - Audio Cable (1.0 m, 3.5 mm to 3.5 mm Plug) - Carrying Case - Quick Guide - Warranty Card 2) Features Touch panel ‘R side’...

  • Page 5: Charging

    ※ At Connection Waiting Mode, the headphone should be entered to ‘Pairing Mode’ for connection to ‘Bluetooth device’ again after power off. If not, 900 LEGACY will turn off within 5 minutes after starting ‘Connection Waiting Mode’.

  • Page 6: Pairing With A Bluetooth Device

    - Place the 900 LEGACY within 3 feet of the ‘Bluetooth Device’ you want to connect. - Press and hold the POWER Button for over 5 seconds with the 900 LEGACY power on to enter Pairing Mode. Pairing mode will start once the power is turned on for the first time after purchase.

  • Page 7: Multipoint Connection

    ※ Sleep Mode will be entered when devices are not connected within 1 minute. When trying to connect a device while in Sleep Mode, pressing any button will re-enter ‘Connection Waiting Mode’ where connection is possible. ※ When the 900 LEGACY power is turned off and back on, the first and second paired device will automatically be connected.

  • Page 8: Monitoring (Audio Transparency)

    7. NOISE CANCELLING FUNCTION 1) What is ‘Noise Cancelling’? - Noise Cancelling refers to a technology that reduces noise from mid/low pitched sounds under 1kHz. 2) Turning Noise Cancelling - The Noise Cancelation function is automatically activated when the device is powered on or when the audio cable is plugged in.

  • Page 9: Listening To Music (Play & Control)

    ※When the battery is completely drained, you can connect the provided audio cable to continue listening. 3) Smart Play/Pause - 900 LEGACY has Smart Play/Pause function that can that detect whether the headphone is being worn or not. - The function can play or pause music automatically.

  • Page 10: Accepting / Making A Call While Playing Music

    - Shortly press the POWER button to end the current call and connect the second call. 5) Switching between Mobile Phone to 900 LEGACY - To switch the call from mobile phone to the headphone, press the POWER button for 1 second.

  • Page 11: Disconnect Notification

    5 times in 20 seconds intervals. 13. CONNECTING AND USING THE AUDIO CABLE 900 LEGACY can also be used with the audio cable connected as shown in the figure. ※ When connected to a device with the provided audio cable,...

  • Page 12: Miscellaneous Features

    14. MISCELLANEOUS FEATURES 1) Checking Remaining Battery - With the power on, short press the POWER button twice to display the remaining battery indicator (LED). - For Apple iOS version 5 or above, the remaining battery is displayed at the top right side of the screen. Remaining Battery Voice Guidance Over 80%...

  • Page 13: Specifications

    15. SPECIFICATIONS 1) Main body - Communication Network: Bluetooth 5.1 - Output Power: Power Class 2 - Max. Communication Range: Discoverable within 10 m / 33 ft. - Full Charging Time: 3 hour 20 minutes - Call Time : Max. 39 Hours - Music Play Time : Max.
  • Page 14 16. PRODUCT ISSUES AND TROUBLESHOOTING 1) The power does not turn on: - Charge the device. If the power does not turn on even after charging, contact Phiaton Customer Service. 2) The device does not charge: - Check whether the USB charging cable has been properly connected with the device.

  • Page 15: Fcc Compliance Information

    17. FCC COMPLIANCE INFORMATION FCC ID: V2R-900LEGACY This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, in- cluding interference that may cause undesired operation.
