Installation of CalAmp 4230 Device for use with
VisTracks, Inc.
Note: The first few instructions below is for an initial connection to the CalAmp 4230 device. If
you have already paired the CalAmp 4230 device to your phone or tablet, proceed to Step 4.

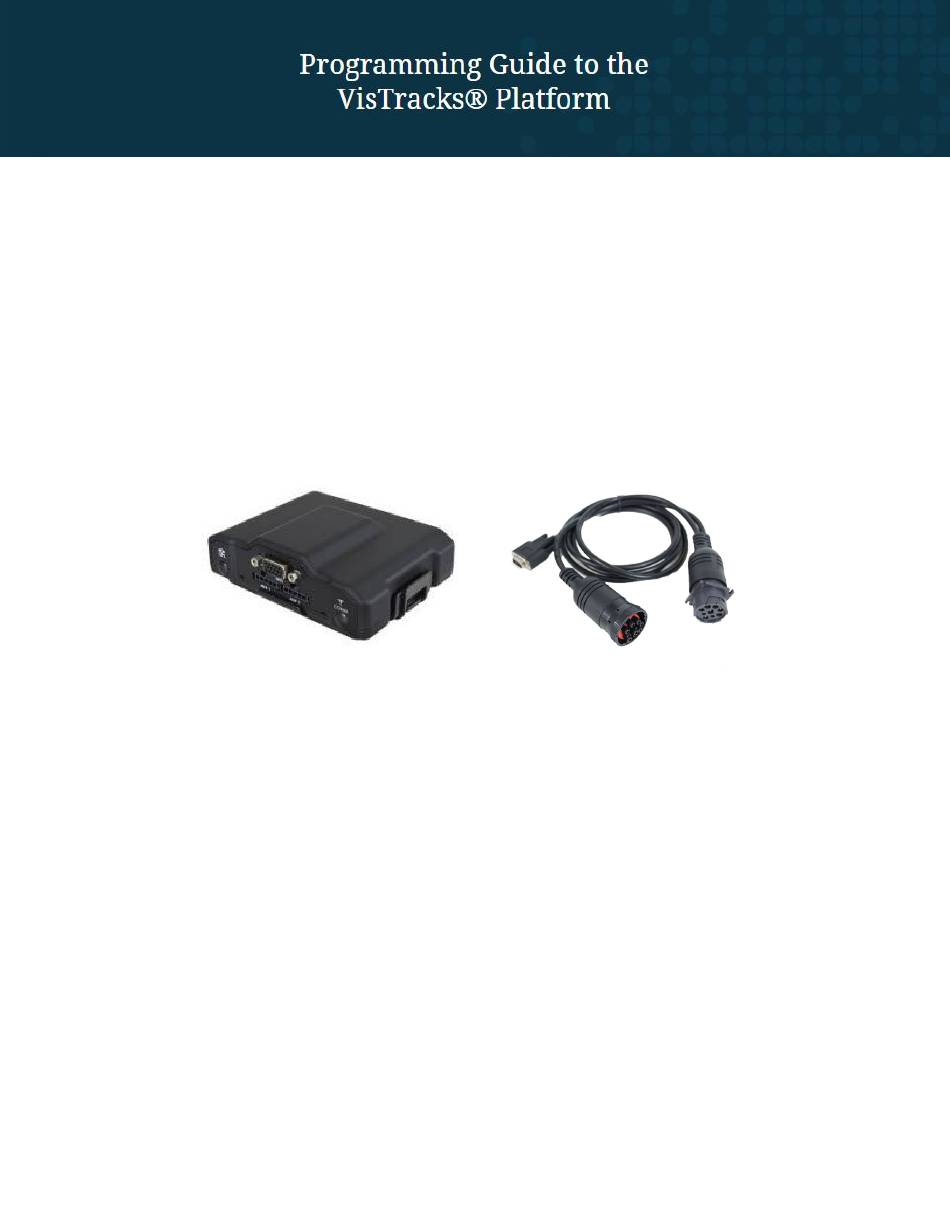

Step 1 – Connect the device using an CalAmp 4230 to J pod Y-cable 5C909-2
REV C.
1. The device plugs directly into the Jpod adapter cable. The cable then plugs into the vehicle's
J1939 socket. The device does not need special prerequisites or installation from authorized
personnel.
2. After the device is plugged into the socket, the yellow and red LED starts blinking with 1Hz
rate. This means the device is powered and operational.
Step 2 – Enable Bluetooth functionality on your Android phone or tablet.
1. F
r om the main screen, Go to Settings.
2. Tap Bluetooth (under connections).
3. Tap the switch for "OFF" to "ON" position to turn on Bluetooth and put your Android
phone or tablet into pairing mode.
Advertisement
Related Manuals for Cal Amp 4230
Summary of Contents for Cal Amp 4230
- Page 1 Installation of CalAmp 4230 Device for use with VisTracks, Inc. Note: The first few instructions below is for an initial connection to the CalAmp 4230 device. If you have already paired the CalAmp 4230 device to your phone or tablet, proceed to Step 4.
- Page 2 Available Devices. If the device is not available in the list, make sure you are in close proximity to the CalAmp 4230 device (less than 32 feet or 10meters), and the CalAmp 4230 device is powered on (see Step 1 above).
- Page 3 3. Tap on the “LMU_4843001786” device (in the example above), then the device goes into pairing mode and the “Pairing…” message is displayed. 4. By default the CalAmp device does not require any PIN configurations. After a few seconds, the pairing process should complete, and “LMU_4843001786” will appear in the list of “Paired Devices.”...
- Page 4 “Truck 1” if you prefer. Tap on the blue gear button () to “Rename” or “Unpair” the device. Step 4 – Use the VisTracks Mobile App with the paired CalAmp 4230 device. 1. Open VisTracks app (or Branded App)
- Page 5 3. At this point, 2 options were present in order to establish a connection to the VBUS device: Manual Connection and Auto Connection. a. Manual Connection o Tap on the Manual Connection button o Select VBUS Device - CalAmp LMU 4230...
- Page 6 ○ Tap on the Next button...
- Page 7 ○ Select ‘ L MU_4843001786 ’ from the device list ○ It will then display the VBUS Progress dialog upon establishing a connection to the selected VBUS device along with a ‘Stop Connection’ and ‘Ok’ buttons a. Tap ‘Stop Connection’ button to stop establishing VBUS connection. b.
- Page 8 ➢ If the VBUS connection results to an error (given the following situations below), an error dialog will display. ■ VBUS Connection Error Interrupted Internet Connection VBUS Power Failure...
- Page 9 Note : The app automatically disconnects from the device after attempting connection for 1 minute and 30 seconds without receiving any data from the VBUS device. ○ After a successful VBUS connection, You should hear a tone letting you know that device is now connected.
- Page 10 ○ Check also that the VBUS indicator is now changed to a WiFi icon (during successful connection) ○ The device and the application are now connected. b. Auto Connection ○ Tap on the Connect button ○ The VBUS Progress dialog will then display ○...
