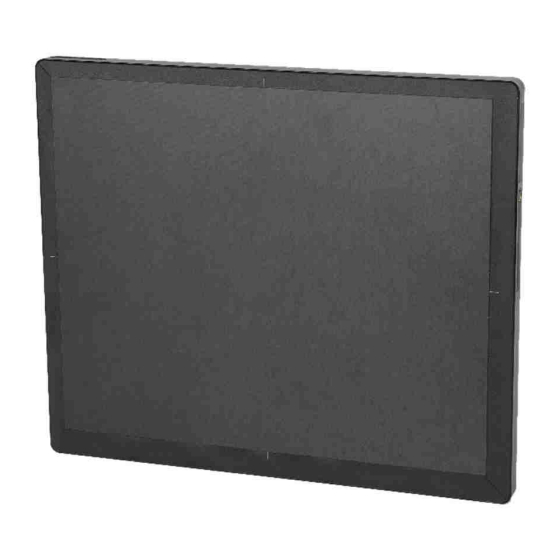

RAPIXX 2530V1V Wifi Set
RAPIXX 2530V2V Wifi Set
Digital X-ray detector system
PROTEC GmbH & Co. KG
In den Dorfwiesen 14, 71720 Oberstenfeld, Germany
Telephone: +49 (0) 7062/92 55-0 E-mail: protec@protec-med.com
Model/ID: 4486-9-1000L
Installation & User Manual
Ident. No. 5436-0-0004
4487-9-1000L
Version: 2.0
Effective from: 2020-06-30
Subject to alterations
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Protec RAPIXX Series
Summary of Contents for Protec RAPIXX Series
- Page 1 Digital X-ray detector system Model/ID: 4486-9-1000L 4487-9-1000L Installation & User Manual Ident. No. 5436-0-0004 Version: 2.0 PROTEC GmbH & Co. KG Effective from: 2020-06-30 In den Dorfwiesen 14, 71720 Oberstenfeld, Germany Subject to alterations Telephone: +49 (0) 7062/92 55-0 E-mail: protec@protec-med.com...
- Page 2 5045-0-0001 © 2016 PROTEC GmbH & Co. KG, Oberstenfeld Comments and questions about the documentation please contact: PROTEC GmbH & Co. KG In den Dorfwiesen 14 | 71720 Oberstenfeld Germany Tel: + 49 (0) 7062 – 92 55 0 Fax: + 49 (0) 7062 –...
-
Page 3: Table Of Contents
RAPIXX DR System Installation & User Manual 5420-0-0004 Table of contents Page Table of contents ........................... 3 Document Version ........................5 Mechanical and Electrical Warning .................... 6 Radiation Warning ........................6 To the User ............................. 6 Improvement Recommendations ....................6 General .......................... - Page 4 RAPIXX DR System Installation & User Manual 5420-0-0004 9.3.1 Daily controls prior to or during the unit operation ..................18 9.3.2 Safety-related controls ..............................18 9.3.3 Maintenance ..................................18 Liability ..........................18 Guarantee ................. Fehler! Textmarke nicht definiert. Disposal ..........................19 Electromagnetic compatibility (EMC) according to EN 60601-1-2 ......
-
Page 5: Document Version
The information contained in this document conforms to the configuration of the equipment as of the date of manufacture. Revisions to the equipment subsequent to the date of manufacture will be addressed in service notes distributed by PROTEC GmbH & Co.KG. Document Version... -
Page 6: Mechanical And Electrical Warning
These are displayed in the following user manual by application limitations, contraindications, warnings and precautions. Technicians and other persons not employed by nor directly affiliated to PROTEC GmbH & Co. KG technical services are directed to contact the local PROTEC GmbH & Co. KG office before attempting installation or service procedures. -
Page 7: General
RAPIXX DR System Installation & User Manual 5420-0-0004 General Inspection of delivery packaging Check the packaging for any damages. Inspection of the scope of delivery Please check if the system has been completely delivered. Following parts should be included: Detector RAPIXX 2530V1V Wifi / RAPIXX 2530V2V Wifi Battery charger incl. -
Page 8: Description Of The Rapixx Dr-Systems
Intended User Group The digital X-ray detector systems of the RAPIXX series are only intended for the usage by professional users, which are specially trained on the operation of diagnostic X-ray units, according to the correspondent national requirements and which are instructed into the appropriate operation (usage and operations as well as in permitted connection with other veterinary medical devices, objects and accessories). -
Page 9: Important Notes For The Preparation Of The Detector Installation
120cm SID or 150 cm if chest X-rays are taken as well. Just one grid for all SIDs is not sufficient. PROTEC GmbH & Co KG is not liable for the selection of the used anti-scatter grid Notes for installing a new digital X-ray system ... -
Page 10: Installation
5420-0-0004 Installation Check list If PROTEC GmbH & Co. KG already prepared the installation, only the following sub-chapter from this chapter must be considered: 4.2 Connection of the components Then proceed with chapter 5 Calibration of the DR System on page 12. -
Page 11: W-Lan Connection To The Detector
RAPIXX DR System Installation & User Manual 5420-0-0004 W-LAN connection to the Detector You have to setup the W-LAN connection to the detector once. Open the list with the found W-LAN networks. Use the password “asdfg1234567890” for the connection. Please note: You must check the option “C ”... -
Page 12: Calibration Of The Dr System
RAPIXX DR System Installation & User Manual 5420-0-0004 Calibration of the DR System Note: Please make sure that all detector specific data is installed on the PC as described above. Note: For the calibration make sure that the detector runs at least 2 hours so that a sufficient operating temperature is reached. -
Page 13: Startup Of The Dr System
RAPIXX DR System Installation & User Manual 5420-0-0004 Startup of the DR system First start of CONAXX 2 Start CONAXX 2 with a double click on the desktop icon. Check the document “CONAXX 2 User Manual” for more details. Necessary settings in CONAXX 2 After the first start of CONAXX 2 open the configuration by clicking the button “Configuration”... -
Page 14: Setup Dose Indicator For Detector
”. Download the license afterwards with “G ”. For the licensing by e-mail, send the hardware key to mis@protec-med.com. You will then get the valid license key by e-mail. This license file can be imported with the function “Import license…” in the section “S >... -
Page 15: Status Information
RAPIXX DR System Installation & User Manual 5420-0-0004 Status information Daily Operation 1. Switch on the Detector 2. Wait until the green LED lights up 3. Please start CONAXX 2* 4. Once the orange LED lights continuously, the connection is established * Please note: At 70% of CONAXX 2 - Starts the communication with the detector If no error message appears at CONAXX 2 startup, the connection is established correctly and the system is ready for use. -
Page 16: Handling Of The Rapixx Dr System
RAPIXX DR System Installation & User Manual 5420-0-0004 Handling of the RAPIXX DR system Operation of the RAPIXX DR system 8.1.1 Startup order for daily use Switch on Switch on detector X-ray generator Wait 15 seconds Start CONAXX 2 The system is now ready to use. If CONAXX 2 cannot connect to the modality or generator after launching the program there will appear an error message. -
Page 17: Handling And Change Of The Battery
RAPIXX DR System Installation & User Manual 5420-0-0004 8.3.1 Handling and change of the battery Detailed information about the handling of the battery and the battery charger, as well as the battery change, please find in the enclosed original user manual Varian Pax Scan 2530W Operating Instructions of the detector manufacturer. -
Page 18: 9.3 Checkup And Maintenance
Secure the device against restarting. The required maintenance and inspection must be completed every 12 months by the PROTEC service department or a PROTEC authorized service provider in order to ensure the reliable operation of the unit. As the manufacturer, PROTEC is responsible for safety-related characteristics/performance of the unit as... - Page 19 RAPIXX DR System Installation & User Manual 5420-0-0004 o Service and maintenance work not made by PROTEC service department or PROTEC authorized service technicians. Warranty NOTE The current conditions of guarantee are deposited in the order papers or in the valid pricelist to the time of purchase.
- Page 20 RAPIXX DR System Installation & User Manual 5420-0-0004 Description of symbols and abbreviations 14.1 Symbols Attention, consult accompanying documents Refer to user manual CE-Mark Classification according to EN 60601-1 (Type B) Electrostatic sensitive device Large focus Small focus System (CONAXX 2) Modality (CONAXX 2) X-ray generator Electrical product.
