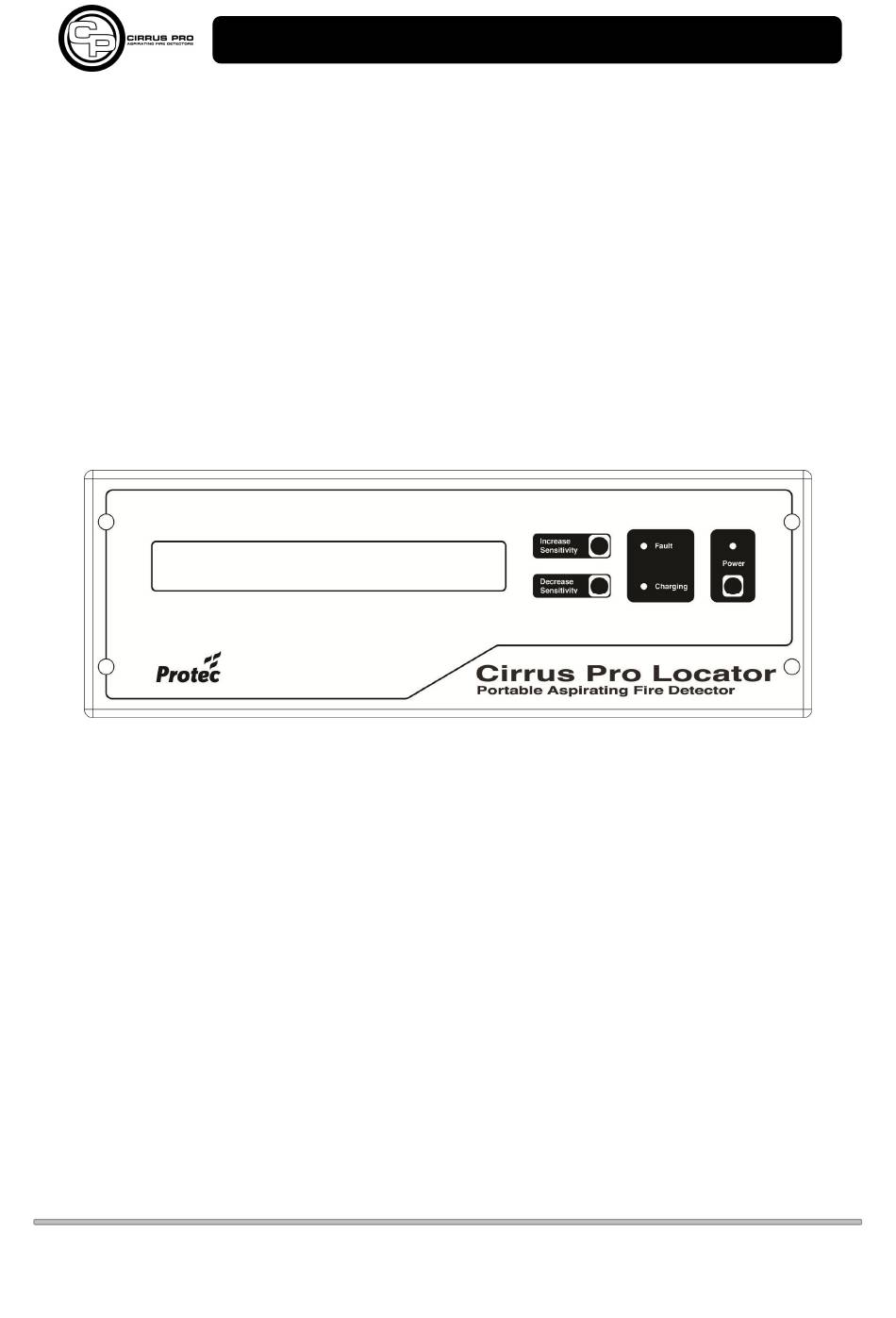

- Page 1 CIRRUS PRO LOCATOR OPERATING MANUAL Protec Fire Detection (Export) Ltd, Protec House, Churchill Way, Nelson, Lancashire. BB9 6RT. Telephone: +44 (0) 1282 717171 Fax: +44 (0) 1282 717273...
-
Page 2: Table Of Contents
GENERAL SAFETY RULES ....................... 3 CIRRUS PRO LOCATOR ......................3 SETTING UP YOUR CIRRUS PRO LOCATOR ................. 4 HOW TO USE THE CIRRUS PRO LOCATOR ................5 OPERATING PROCEDURE ....................... 6 After Localizing the Fire Threat ....................8 TESTING AND DEMONSTRATING THE PRO LOCATOR ............8 LCD MONITORING AND CONTROL .................. -
Page 3: General Safety Rules
Do not enter or sample in an area if either flames or smoke are present. Cirrus Pro Locator The Cirrus Pro Locator is the next generation of portable air sampling detector. Belonging to the Pro Series family, the Fire detector uses Cloud Chamber Detection technology for very early warning fire detection. -
Page 4: Setting Up Your Cirrus Pro Locator
• If the FAULT LIGHT illuminates and remains illuminated for more than two minutes, or no text is • displayed on the LCD display, contact technical assistance at Protec Fire Detection plc (01282) 717171 93-340-74 Issue 5 CirrusPro Locator Operating Manual... -
Page 5: How To Use The Cirrus Pro Locator
How to use the Cirrus Pro Locator ProSeries detectors can tell you which room, but only the Pro Locator can tell you where in the room. The sampling probe may be used for sampling above drop ceilings, in equipment cabinets or in hard to reach places. -
Page 6: Operating Procedure
Operating Procedure 1. Turn the Pro Locator ON using the power button. NOTE: Be sure to always keep the unit in an upright position during storage and operation. 2. The Pro Locator will then perform a short calibration and automatically be set to the highest sensitivity setting, 10. - Page 7 6. Slowly sample the half of the area, which had a higher reactivity on the initial sampling, then divide it in half again. percentage level is above 90% at fire level 4, stop, press the “Decrease Sensitivity” button to lower the sensitivity and then continue.
-
Page 8: After Localizing The Fire Threat
When you have reached Sensitivity Level 1 and the percentage level is above 90% at fire level 4. You will be as close to the fire threat as the Pro Locator can take you. After Localizing the Fire Threat • Do not enter the area if there is smoke or flames. -
Page 9: Lcd Monitoring And Control
LCD MONITORING AND CONTROL Standard Operation The Pro Locator displays the sampled air particles with in percentage of bar graph in • segments of 5%. The fire levels are shown below: • At an unfortunate event of the unit developing a fault the LCD will display the following: •... -
Page 10: Position Of The Unit
Position of the Unit The PRO Locator monitors the position of the unit to ensure it is kept in the upright position. • If the unit for any reason is not in an upright position the LCD will display the following: The fault LED will illuminate and the buzzer will sound until the unit is put back in an upright •... -
Page 11: Buzzer Enable Or Disable
Buzzer Enable Or Disable Enter the ‘Engineer menu’. (Section 7.5) • Press the ‘increase sensitively’ button to enter menu. • The LCD will show: SELECT either buzzer ON or OFF by toggling the ‘increase sensitively’ button. • STORE the chosen option be pressing ‘decrease sensitively’ button that in turn exits back to •... -
Page 12: Maintenance And Care
When operating or testing the unit, If the FAULT LIGHT illuminates and remains illuminated for • more than two minutes, or no text is displayed on the LCD display, contact Protec Fire Detection plc for technical assistance. Store the unit in a cool, dry place.
