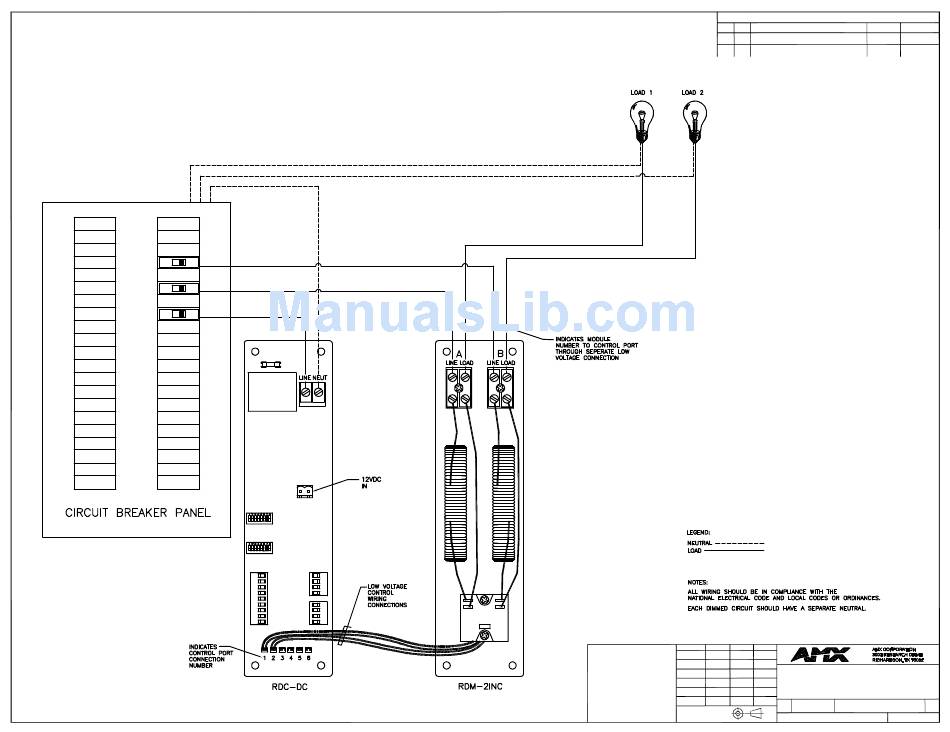

LIGHTING MODULE WIRING
RDM-2INC
DUAL INCANDESCENT DIMMER MODULE
2400 W (x2)
SIZE
SCALE:
DWG. NO.
REV.
NONE
LM-2INC-1
D
A
LM-2INC-1
SHEET
1 OF 1
