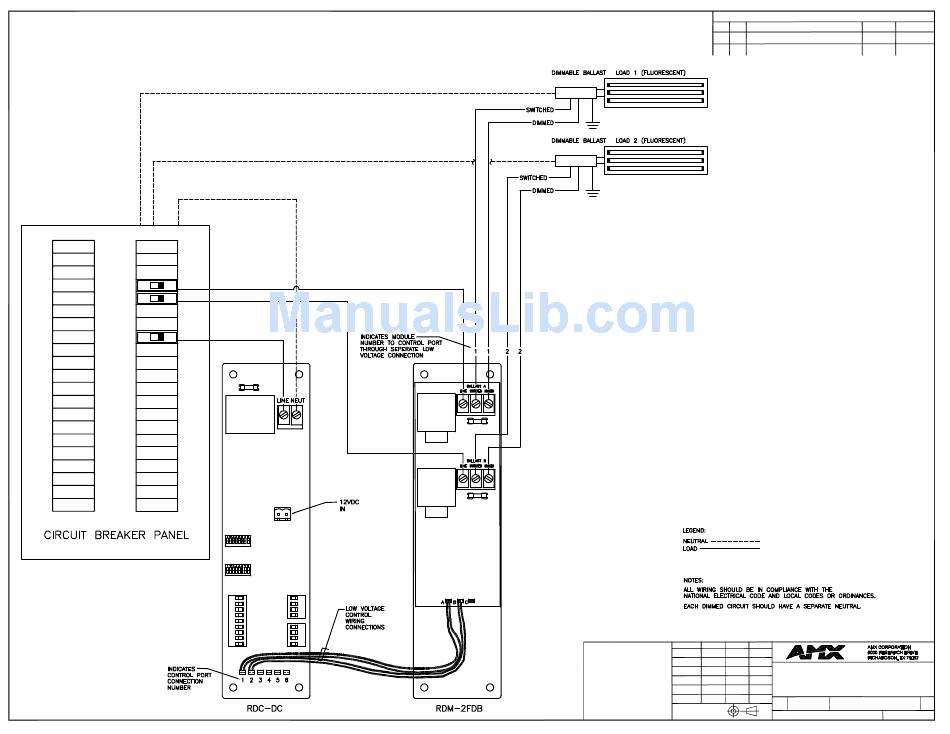

LIGHTING MODULE WIRING
RDM-2FDB
DUAL FDB MODULE
1920 W (x2)
SIZE SCALE: DWG. NO. REV.
D NONE LM-2FDB-1
A
LM-2FDB-1 SHEET
1 OF 1
