AMX Lighting - Enclosure Worksheet Guide

The AMX Lighting Enclosure Worksheet, found on page 11 lets you specify the contents of an AMX
Lighting Enclosure. The best resource for designing a Radia lighting system is the Enclosure Worksheet.
Use this worksheet to configure the hardware for each Radia enclosure. Larger systems will use multiple
Enclosure Worksheets. The Enclosure Worksheet is used to design, build, and deliver a complete
working Radia Lighting System. It is also used as a load schedule and to help programming
identification.
This Worksheet allows the user to specify the contents of a Radia enclosure in a standard Microsoft
®
Word document. These documents can easily be read, changed, and saved. It is formatted as a letter in
landscape orientation. It uses some grayscale shading. A Worksheet is completed for each enclosure on a
sales order.
The Enclosure Worksheet follows the sales order to Order Pulling and Production assembly. And then
testing and shipping. The enclosure worksheet should be shipped with each enclosure. Dealers are
encouraged to send in completed Worksheets with every Radia order to insure prompt and accurate order
fulfillment.
AMX adds value to each enclosure by installing modules according to the Worksheet. AMX adds any
applicable high voltage wiring, secures all wires, tests the units, sets preset assignments, and adds
documentation. This makes for a timely and safe electrical installation. Dealers who order unconfigured
systems, part by part, miss out on this added value.
The Radia Enclosure Worksheet is designed to give information on each separate enclosure in a Radia
lighting system. Enclosures use uniform sized spaces or slots for installation of the dimmers. An
enclosure can have 2, 4, 6, or 8 slots. There are three types of enclosures: surface mounted, in-wall, and
those with circuit breakers (FIG. 1). The RDA-ENC8W requires the use of two four-slot Worksheets.
In-Wall enclosure

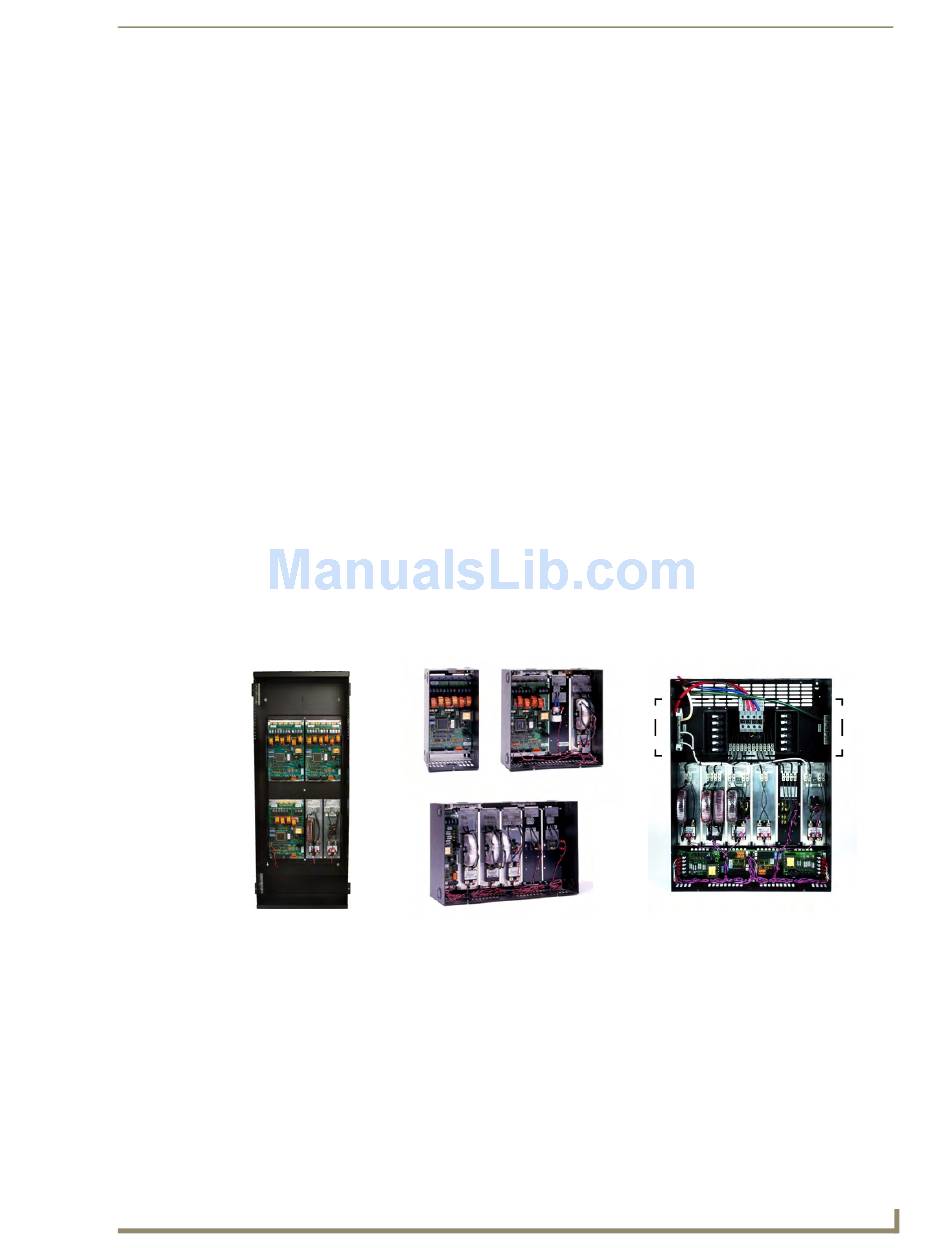

FIG. 1 Enclosures
AMX Lighting - Enclosure Worksheet Guide
AMX Lighting - Enclosure Worksheet Guide
Surface enclosures
®
Circuit breakers
