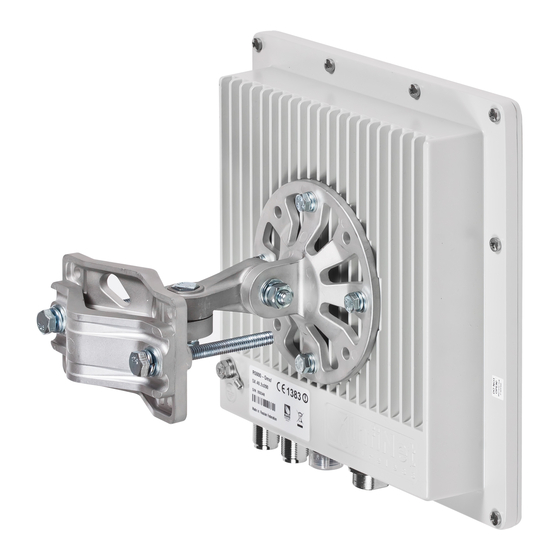

InfiNet Wireless R5000
Quick start guide
Revision date: 20 August 2010
1
Copyright © 2004-2009 by InfiNet Wireless Limited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R5000 and is the answer not in the manual?

Questions and answers

Related Manuals for InfiNet Wireless R5000

Summary of Contents for InfiNet Wireless R5000

  • Page 1 InfiNet Wireless R5000 Quick start guide Revision date: 20 August 2010 Copyright © 2004-2009 by InfiNet Wireless Limited.
  • Page 2 Limitation of Liability Infinet Wireless shall not be liable to the purchaser or to any third party, for any loss of profits, loss of use, interruption of business or for any indirect, special, incidental, punitive or consequential damages of any kind, whether arising under breach of contract, tort (including negligence), strict liability or otherwise and whether based on this agreement or otherwise, even if advised of the possibility of such damages.
  • Page 3 Hereby, InfiNet Wireless declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 4: Table Of Contents

    IV. OTHER TOPOLOGIES CONFIGURATION ................ 26 V. PERFORMING OUTDOOR TESTING ................27 1. Distance setting ......................27 2. Learning link status/antenna alignment procedure .............. 27 Antenna alignment with MINT Monitor................28 Antenna alignment with Link test ................... 29 Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 5: Getting Started

    Quick Start Guide I. Getting Started This document is designed to help engineers/technicians in rapid configuring of InfiNet Wireless R5000 system. The document includes detailed instructions for first configuration steps and configuration scenarios for typical network topologies. 1. Scope of document...

  • Page 6: Document Marks

    Additional information which is not included in this Manual can be found in the following sources: • Device passport located in the box with the device • InfiNet Wireless R5000. Technical User Manual • WANFleX OS User Guide • Our web-site: www.infinetwireless.com...

  • Page 7: Getting Access To The Unit

    3. Locate IDU (blue case) and ODU (white case). Using STP Service cable connect ODU and IDU. Service cable sockets are marked on the diagrams below IDU-5000-SCR IDU-5000-CPE Figure 1. IDUs Fronts Figure 2. RJ-45 ODU Front (fragment) Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 8: Accessing The Unit Via Console

    98/NT/2003 6. Run Hyperterminal. See Figure 4 Figure 4. Locate Hyperterminal 7. Indicate connection name (e.g. “IWR Lab Test”) and specify the COM-port name to which the unit is connected. See Figure 5 Copyright © 2004-2009 by InfiNet Wireless Limited.
  • Page 9 9. If you connected everything properly, selected the right port and made its configuration right, after pressing enter on the white blank screen (after step 8) you should see WANFleX OS prompt as shown on Figure 7 Copyright © 2004-2009 by InfiNet Wireless Limited.
  • Page 10 Figure 9. Changing IP-address on eth0 interface 12. If all your settings are correct you can connect the unit to your LAN using UTP cable with RJ-45 connectors (Ethernet port of the unit is located on IDU). Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 11: Accessing The Unit Via Ethernet

    Figure 10. Open Control Panel 2. Open “Network connections” icon. See Figure 11 Figure 11. “Network connections” 3. In “Network connections” folder right mouse button click on the LAN connection and click “Properties”. See Figure 12 Copyright © 2004-2009 by InfiNet Wireless Limited.
  • Page 12 “Advanced…” button (Figure 14). In “Advanced TCP/IP Settings” click “Add” and put alias IP-address and mask (e.g. “10.10.10.2” and “255.255.255.0” correspondingly). See Figure 15. Click OK in all windows opened in the described procedure. Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 13: Initial Setup

    “restart 0” cancels postponed reboot. • “quit” – closes current telnet session The maximum number of concurrent Telnet sessions per one unit is five. Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 14: System Parameters

    “ifc –a” command. See Figure 17. Figure 17. Interfaces information Note that radio interface name may differ from “rf4.0” depending on the model’s frequency range (2.4GHz or 5GHz) and number of radio modules in Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 15: Radio Module Parameters Configuration

    5340 MHz. At the same time one radio module can work only on ONE frequency. 3. Bitrate can be changed using “rf rf4.0 bitr <bitrate>” command. For example, “rf rf4.0 bitr 24000” sets current bitrate to 24 Mbps. Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 16: Point-To-Point Configuration

    Figure 19a. Figure 19a. Sample network (PtP connection) Please note that InfiNet Wireless unit is able to work both in routing and switching modes. This particular example explains how to configure a PTP link in a router mode.

  • Page 17: Learning Connection Status

    2. Cost parameter is one the most important parameters in MINT architecture as it defines the base upon which all the routes in MINT network are calculated. But in point-to-point scenario this parameter is of a less Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 18: Providing Ip Connectivity

    E.g. on the first unit which has 9.1.8.1/24 address on eth0 (Ethernet) and 10.10.10.2/30 on the radio interface (rf4.0) the command will look as follows: route add 9.2.8.0/24 10.10.10.2 Copyright © 2004-2009 by InfiNet Wireless Limited.
  • Page 19 For example, from one PC/laptop (located at one side of the link) we are pinging remote computer at the opposite side (Figure 28) Figure 22. Pinging remote computer Copyright © 2004-2009 by InfiNet Wireless Limited.
  • Page 20 OfficialAddress IP Here, “IP” is the Official Address of the unit should be specified which will act as a source IP address for all the packets originated from the unit. Copyright © 2004-2009 by InfiNet Wireless Limited.
  • Page 21 InfiNet Wireless Quick Start Guide Sample Point-to-Point router configuration: First device Second device Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 22: Switched Link

    2. On both units the switch needs to be configured. Although, switch realized in InfiNet Wireless units is a powerful tool and can be used for many different purposes, here in our example, we will use the simplest configuration which turns the unit to a full switch mode.
  • Page 23 InfiNet Wireless Quick Start Guide Sample Point-to-point switch configuration: First device Second device Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 24: Link Throughput Test

    In our example it is approximately 15.2 Mbps. 5. Simple configuration for establishing E1 radio link E1 radio link can be established only having InfiNet Wireless devices with IDU- 5000-E1SCR, IDU-5000-E1RJ indoor units. In our E1 radio link point-to-point simple configuration example we will establish e1 radio link as shown in figure 19b.
  • Page 25 Master device. Start CES-over-WLAN mode. Example: ces mode e1 recovery ces start 5. Now E1 radio link is established. 6. To view it’s status and statistics you can use the following command: ces stat Copyright © 2004-2009 by InfiNet Wireless Limited.
  • Page 26 InfiNet Wireless Quick Start Guide Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 27: Other Topologies Configuration

    “master”. For CPEs type “slave” should be used. For MESH network configuration, type “mesh” should be used. Many other parameters can be configured to fine-tune mesh network (node “mode”, costs parameters etc). Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 28: Performing Outdoor Testing

    (because in this case you do not have to seal the connectors). 2. Even in test link it is highly recommended to provide all grounding. Ground the ODU to the mast/building grounding contour Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 29: Antenna Alignment With Mint Monitor

    2. Antenna alignment should be done only from one side at one time. Align one side, than other side. Use mobile phones to check current signal levels. The output of mint monitor command is demonstrated on the Figure 24. Copyright © 2004-2009 by InfiNet Wireless Limited.

  • Page 30: Antenna Alignment With Link Test

    “Antenna alignment with MINT Monitor” procedure because Link test is much better radio link testing tool then Mint Monitor. This is so because of the following reasons: ü With Link test tool you are getting much more testing statistics using only one command. Copyright © 2004-2009 by InfiNet Wireless Limited.
  • Page 31 For higher bitrates (24 and 36 Mbps) signal levels of higher than 18-20 dB should be achieved. For QAM64 bitrates (48 and 54 Mbps) signal levels of 30 dB and higher should be achieved for a reliable link Copyright © 2004-2009 by InfiNet Wireless Limited.
  • Page 32 5. Interference can be a possible reason for the link quality degradation (number of repeats increases, lower signal levels due to higher noise levels or other equipment working in the same area). Copyright © 2004-2009 by InfiNet Wireless Limited.
