Aigis Mechtronics CRYSTALVUE PVD20 IP Series Installation And Operating Instructions Manual

Public view display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
C
V
™
RYSTAL
UE
P
V
D
UBLIC
IEW
ISPLAY
1.9
See Detail B
16.5
2.5
17.9
2.8
AUTO
MEM
MON
CAM
AUX
Pivot Point
MENU
Pivot Point
RST
CLR
ON
OFF
PVD20 IP Series
Pivot Point
Tilt adjustment;
Thumb nut
I
O
I
N S T A L L A T I O N A N D
P E R A T I N G
N S T R U C T I O N S
.
.
W W W
A I G I S M E C H
C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRYSTALVUE PVD20 IP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Aigis Mechtronics CRYSTALVUE PVD20 IP Series

Summary of Contents for Aigis Mechtronics CRYSTALVUE PVD20 IP Series

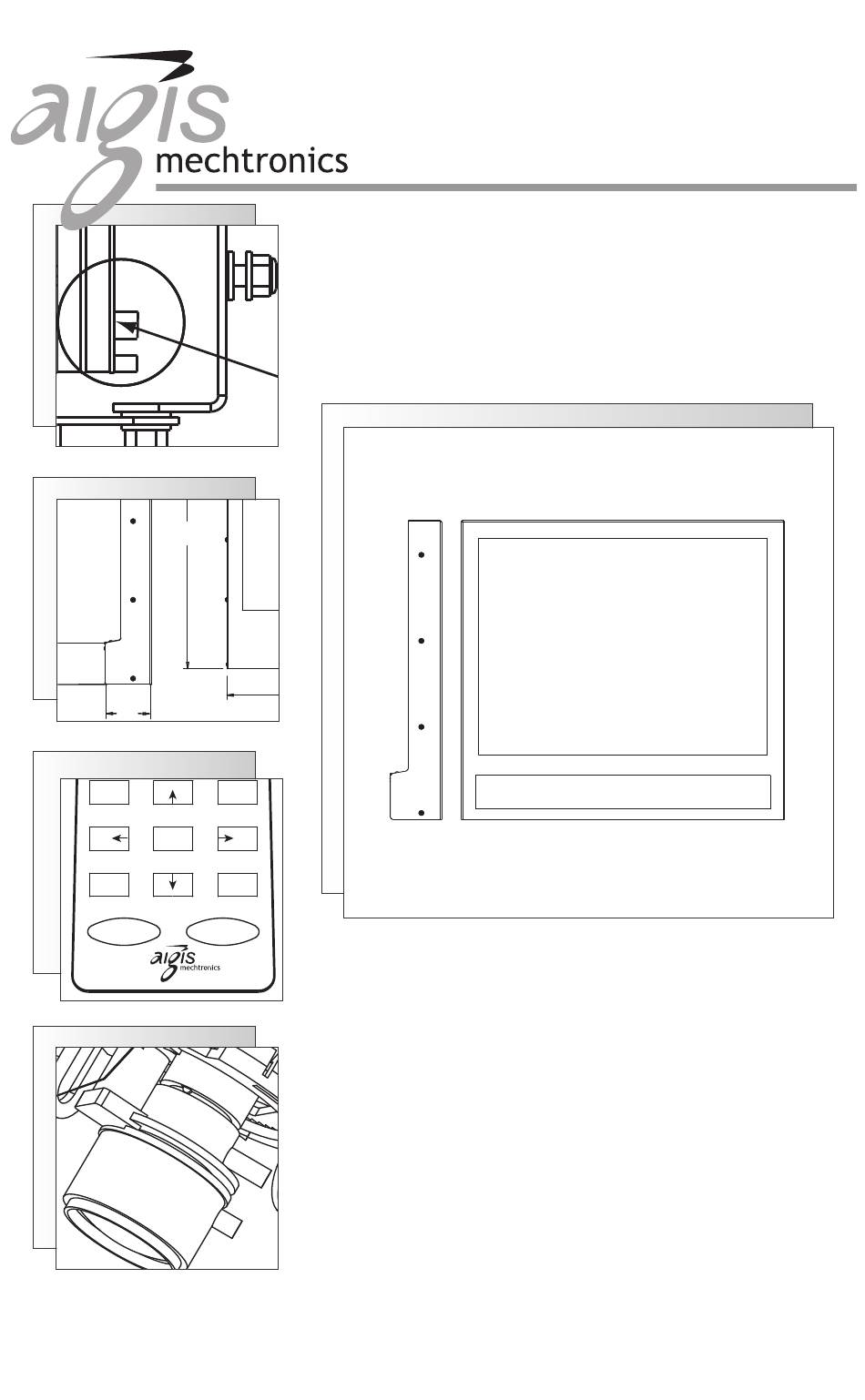

  • Page 1 ™ RYSTAL UBLIC ISPLAY See Detail B 16.5 17.9 AUTO Pivot Point MENU Pivot Point PVD20 IP Series Tilt adjustment; Thumb nut Pivot Point dial; Tilt adjustment; Thumb nut N S T A L L A T I O N A N D P E R A T I N G N S T R U C T I O N S W W W...
  • Page 2 SAFETY PRECAUTIONS CAUTION:TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS. NO USER SERVICE- ABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This label may appear on the bottom of the unit due to space limitations. The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3 SECURITE DANGER: POUR ÉVITER TOUT RISQUE D'ÉLECTROCUTION, NE PAS OUVRIR LE BOÎTIER. IL N'Y A PAS DE PIÈCES REM- PLAÇABLES À L'INTÉRIEUR. POUR TOUTE RÉVISION, S'ADRESSER À UN TECHNICIEN SPÉCIALISÉ. En raison de limitation de place, cette étiquette peut être placée sur le dessous de l'appareil.
  • Page 4 SICHERHEITSVORKEHRUNGEN VORSICHT: UM EINEN ELEKTRISCHEN SCHLAG ZU VERMEI- DEN, ABDECKUNG NICHT ENTFERNEN.WARTUNGEN ALLER ART QUALIFIZIERTEM PERSONAL ÜBERLASSEN. Aus Platzgründen kann diese Warnung auf der Unterseite des Gerätes angebracht sein. Das Blitzsymbol im gleichseitigen Dreieck soll den Benutzer auf nicht isolierte "Hochspannung" im Gehäuse aufmerksam machen, die eventuell stark genug ist, um einen elektrischen Schlag zu verur- sachen.
  • Page 5 PRECAUCIONES DE SEGURIDAD PRECAUCION: PARA REDUCIR EL RIESGO DE CHOQUE ELÉCTRICO, FAVOR NO ABRIR LA CUBIERTA. ESTE EQUIPO NO CONSTA DE PIEZAS O PARTES QUE REQUIEREN SERVICIO O MANTENIMIENTO. PARA REPARACIONES FAVOR REFERIRSE A UN TÉCNICO CALIFICADO. Debido a limitaciones de espacio, esta etiqueta puede aparecer en la parte inferior de la unidad.

  • Page 6: Table Of Contents

    ATTENTION – Observe Precautions For Handling Electrostatic Sensitive Devices What is Electrostatic Discharge? A transfer of electrostatic charges between bodies at different electrostatic potentials caused by direct contact or induced by an electrostatic field.The following are some examples of electrostatic charges: Walking across a nylon carpet on a dry day generates a static electrical charge of 35,000 volts.
  • Page 7 TABLE OF CONTENTS (CONT.) ..15 5.6 Internal Monitor Controls ... .15 5.7 Flash Memory Set Up . . .15 5.7.1 Activate the Flash Memory Card .

  • Page 8: Unpacking

    Note: Set aside the remote for later use. 2. SERVICE If the unit needs repair service or parts contact Aigis Mechtronics for authorization to return as well as shipping instructions. 3. DESCRIPTION The PVD20 Series consists of a 20.1” LCD Monitor with a high resolution color camera or a wide dynamic range camera.
  • Page 9 The internal network card connects to the network via a standard network cable, and automatically detects the speed of the local network segment. (10BastT/100BaseTX Ethernet). To access the video via the network use the following information. User: Root Password: Pass For more information on functionality and features please go to: www.axis.com and find information on the AXIS 282.

  • Page 10: Pvd20 Set Up

    5. PVD20 SET UP 5.1 Verify Operations Once the unit is powered the PVD20 is automatically activated. At this time it is advisable to access the control board to verify the operation of the PVD20 and to make any adjustments needed to the Option Switches. 5.2 Accessing the Control Board Configurations and Option Switches The Control Board is a microprocessor-based circuit that controls the on-...

  • Page 11: Detail Of Options Switches

    Camera System Power On LED Pulse LED Figure 3: Control Board LED’s Active Camera Video Out Loop System Pulse LED Aux Video In Monitor Camera Camera Video In Power LED Video ON LED RS232 Control USER Power Connector Phase Control Power To Camera Options Switches...

  • Page 12: Rs232 Control Options

    5.4 RS232 Control Options The operation of the control board may be modified via the USER RS232 Control port. See for location.This port operates at 9600 baud 8E1, no flow Figure 4 control and cannot be changed. Any standard terminal may be connected and a ‘?’ entered to get the control menu.

  • Page 13: On Screen Display Using The Remote Control

    5.5.2 On Screen Display (OSD) Using the Remote Control Any needed adjustments to the Monitor are made by navigating through the menus and sub menus with the remote control.To use the remote control to navigate the set up menus do the following: Power on the unit by pressing the O O N N button on the remote control if the unit is not already on.
  • Page 14 • O S D ( O A I N E N U C R E E N I S P L AY Sub Menu Horizontal Position 0-100 Pressing the ← ← arrow moves the OSD left. Pressing the → → arrow moves the OSD right. Vertical Position 0-100 Pressing the ←...

  • Page 15: Internal Monitor Controls

    5.6 Internal Monitor Controls It is recommended to use the Remote Control to set up the unit. Note: See section 5.5.1 through 5.5.4 for set up using the remote control. If the Remote Control is not available do the following to set up the PVD20.

  • Page 16: Camera Adjustments

    5.8 Camera Adjustments Refer to the following sections to set up the camera for operation.The camera module position can be adjusted both vertically and horizontally and can also be rotated for proper tilt orientation. for the correct camera series adjustment points. Figures 6 5.8.1 Color High Resolution Series Camera Pivot Point...

  • Page 17: Camera And Lens Settings

    5.9 Camera and Lens Settings The camera module has various settings for any additonal adjustments that may be required. See for the correct camera series settings and Figure 8 or 9 dip switch locations. 5.9.1 Dip Switch Location for Color High Resolution Camera for dip switch information.

  • Page 18: Dip Switch Location For Wide Dynamic Range (Wdr) Camera

    5.9.2 Dip Switch Location for Wide Dynamic Range (WDR) Camera See Detail B Figure 9: Dip Switch Location: Wide Dynamic Range (WDR) Camera DETAIL C The following diagram shows the selectable dip switches for the Wide Dynamic Range (WDR) Camera: Note: is factory set up 5.10 Focusing the Camera...

  • Page 19: Troubleshooting

    Press the Power button next to the “Power LED” See Figure 5 location, to turn the monitor off, this will save the settings. Press the Power button again to re-activate the unit. G. If no video is displayed: Contact Aigis Mechtronics Customer Service.

  • Page 20: Specifications

    SPECIFICATIONS 7.1 System Specifications Display Size 20.1” Resolution 640H x 480V Pixel Pitch 0.6375mm x 0.6375mm Brightness 450 cd/m2 Contrast Ratio 350 : 1 Viewing Angle +/- 88 º X,Y Lamp Life Over 50,000 Hrs Video Input 2 Composite, S-Video On Screen Display Yes - Monitor Setup Power Requirement...

  • Page 21: Mechanical Specifications

    7.2 Mechanical Specifications Housing Construction Aluminum with Acrylic front window Finish Standard: Powder coated off white finish. Weight Unit without mount: 15 lbs. 7.3 Environmental - Rated for Indoor Use Only Operating 0 ºC to +50 ºC Temperature Storage -20 ºC to +60 ºC Temperature 7.4 Camera Specifications 7.4.1 Color High Resolution Camera...

  • Page 22: Wide Dynamic Range (Wdr)

    7.4.2 Wide Dynamic Range (WDR) 480 TVL Horizontal Resolution Voltage Range 22-26 VAC, 60 Hz Power Sensitivity 0.5 lux minimum scene illumination (30 IRE) f/1.2 lens, 50 IRE 1/3-inch Image Format; Imager Interline Transfer CCD NTSC System 50dB Signal to Noise Electronic Shutter 1/50 (1/60 EIA) to 1/100,000 Backlight Compensation...

  • Page 23: Pvd Accessories

    PVD ACCESSORIES 8.1 Power Supplies Part Number Description Power Supply that converts 120V to 24VAC, 4Amp PS-24VA4A output, includes 6 foot power cord. Power Supply that converts 120V to 24VAC, 4Amp PS-24VA4A-PB output, includes 6 foot power cord and plenum box. Power Supply that converts 120V to 26VAC, 3.8Amp PS-28VA4.6A-PB output, includes 6 foot power cord and plenum box for...

  • Page 24: Replacement Parts

    8.9" Horizontal Mount Center 1.9" 20.1 9.5" 16.5" Vertical Mount Center 2.5" 2.8" 17.9" ©2005 Aigis Mechtronics 100 0169 001 AIG 02/06 1124 Louise Road,Winston-Salem, NC 27107-5450 Tel: 336.785.7740 Fax: 336.785.7744 Printed in U.S.A. Data subject to change without notice...
