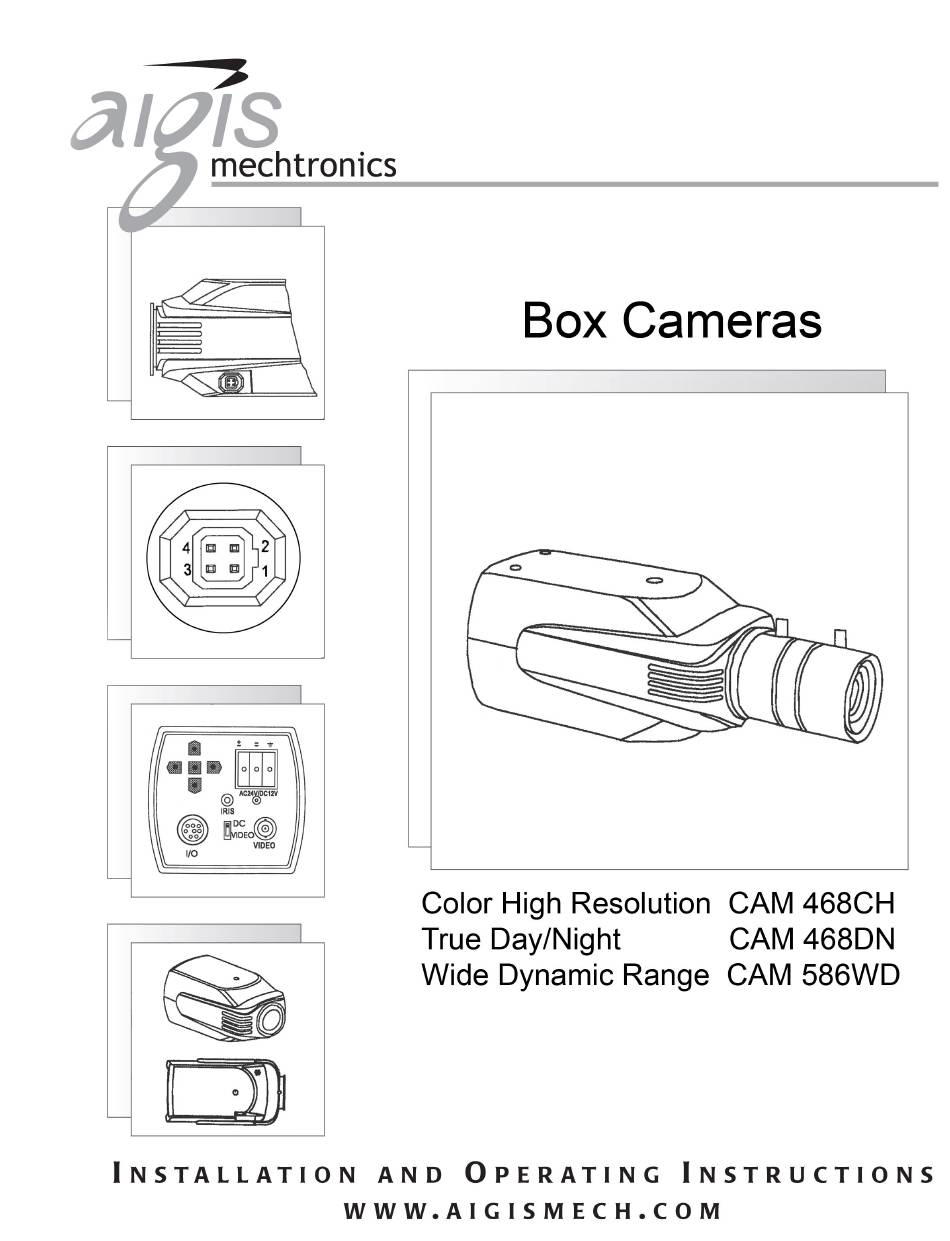

Aigis Mechtronics CAM 468CH Installation And Operating Instructions Manual

Box cameras
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAM 468CH and is the answer not in the manual?

Questions and answers

Related Manuals for Aigis Mechtronics CAM 468CH

Summary of Contents for Aigis Mechtronics CAM 468CH

  • Page 3 Components & Specifications Product ID Camera Type Resolution / Imager Input Voltage Max Power CAM 468CH Color Hi-Res 540TVL, 1/3” CCD 12VDC / 24VAC ± 10%, 60Hz < 3W CAM 468DN Day/Night 540TVL, 1/3” CCD 12VDC / 24VAC ± 10%, 60Hz <...
  • Page 4 Additional Camera Functions and Settings Figure 5 CAM 468CH – Color High-Resolution Camera A set of 6 dip switches is used to adjust the features of this camera. Number 1 refers to the topmost switch, number 6 the bottommost.
  • Page 5 CAM 468DN – Day / Night Camera Figure 6 Press the center button of directional pad (See Figure 6) to access the camera’s On Screen Display (OSD) menu and to step back one screen. Press up or down to navigate between settings, press left or right to change values or enter a sub- menu.
  • Page 6 CAM 468DN – Day / Night Camera Functions and Settings Cont’d Figure 8 Pin Designation of the I/O Port on the rear of the camera Figure 7 Utilization Color RS232 Tx Black RS232 Rx Brown RS232 Ground Orange Not Connected Blue Not Connected Green...
  • Page 7 CAM 586WD – Wide Dynamic Range Camera Settings & Functions, Cont’d Setting Name Setting Values Default Setting Description Exposure..................Press the center button to enter sublevel White Balance….. Multiple – see below……. ATW…………… Multiple selections available, described below ATW…………………………………… Continuously adjusts the white balance of the video automatically ATW Extend……………………………..
  • Page 8 CAM 586WD – Wide Dynamic Range Camera Settings & Functions, Cont’d Setting Name Setting Values Default Setting Description Zone Adjustment Procedures………………………………. Highlight the enabled zone and press the center key to adjust it. When the zone is White it can be moved around the image. Press the center button to turn the zone Green.
