AMX NI-4000 Dimension Manual

17.0
431.8
LINK/ACT 1 2 3 4 5 6 7
INPUT
1 2
TX RX TX RX TX RX TX RX TX RX TX RX TX RX
STATUS OUTPUT RS - 232 / 422 / 485
19.0
482.6
PORT 7 PORT 6 PORT 5 PORT 4 PORT 3 PORT 2
RS - 232 / 422 / 485
RELAYS (Port 8) I / O (Port 17) IR / SERIAL (Ports 9-16)
8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1
B A B A B A B A B A B A B A B A 8 7 6 5 4 3 2 1
SLOT 4 SLOT 3
CARDFRAME #
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 20
ON
3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
RELAYS IR / SERIAL I / O
PORT 1
ICSNet ICSNet ICSHub Out
RS - 232 / 422 / 485
(Ports 1-7)
ETHERNET
Pin Function Pin Function 10 / 100 AXLink PWR
PROGRAM CONFIGURATION L/A SPD
RX-
1 6 RX+ 12VDC
2 RXD 7 RTS
3 TXD 8 CTS
ID
4 TX+ 9 TX-
5 GND
SLOT 2 SLOT 1
19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
5.2
5.33
132.3
[135.3]
NOTICE: This drawing is the UNLESS OTHERWISE SPECIFIED:
property of AMX Corporation.
TOLERANCE ON DECIMAL DIMENSIONS: XX = .010
All information contained herein
XXX = .005
that is not generally known
TOLERANCE ON HOLE DIAMETERS:
shall be confidential except UNDER .250 ú = +/- .005
.250 TO .500 = +.006 -.005
to the extent the information
OVER .500 = +.008 -.005
has been previously established.
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
This drawing may not be copied, ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
reproduced, or used as the basis
ALL DIMENSIONS IN INCHES.
for manufacture or sale without
DO NOT SCALE THIS DRAWING.
written permission.
REVISIONS
REV ECN DESCRIPTION
A 4735 RELEASE FOR PRODUCTION
9.6
242.7
REL APPR REL DATE REV APPR
DAS 2/4/03
DRAWN
LC
2/18/03
ENGR SERV
PICTORIAL,
PL 2/18/03
ENGINEER

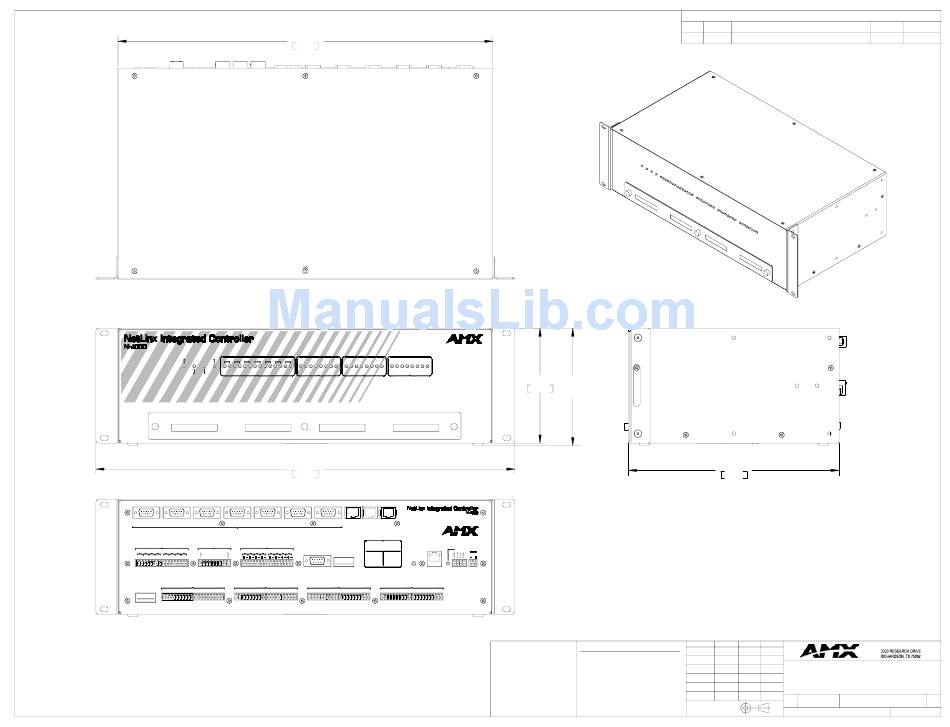

NETLINX INTEGRATED CONTROLLER
KZ 2/18/03
PROD ENGR
NI-4000
JM
2/18/03
MATL SUP
AK 2/18/03
QUALITY SIZE DWG. NO.
SCALE: 1:2
C
95-2105
THIRD ANGLE
PROJECTION 95-2105-A
DATE APPR
2/18/03 -
AMX CORPORATION
REV.
A
SHEET 1 OF 1
